ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard
Key Features of TUF GAMING X870-PLUS WIFI:Chipset: AMD X870 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series |
Socket: AMD Socket AM5 |
Memory: 4 x DIMM slots, max. 192GB, DDR5 |
Storage: Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports |
AI Overclocking, PCIe 5.0 for Graphics Card, USB4 40Gbps Type-C Port, WiFi 7 |
Key Features | |
attr - Key Feature 1 > | Chipset: AMD X870 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series |
attr -Key Feature 2 > | Socket: AMD Socket AM5 |
attr -Key Feature 3 > | Memory: 4 x DIMM slots, max. 192GB, DDR5 |
attr -Key Feature 4 > | Storage: Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports |
attr -Key Feature 5 > | AI Overclocking, PCIe 5.0 for Graphics Card, USB4 40Gbps Type-C Port, WiFi 7 |
Motherboard | |
Model | TUF GAMING X870-PLUS WIFI |
CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for the CPU support list. |
Chipset | AMD X870 Chipset |
Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
Graphics | 1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution. |
Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode)** AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)**** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** Specifications vary by CPU types. **** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
Storage | Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)** AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot not support AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)*** 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. ** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs. *** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs. |
Ethernet | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header |
Wireless & Bluetooth | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
USB | Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C)* 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)** 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A. |
Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-bit/192 kHz is not supported for 7.1 Surround Sound audio. |

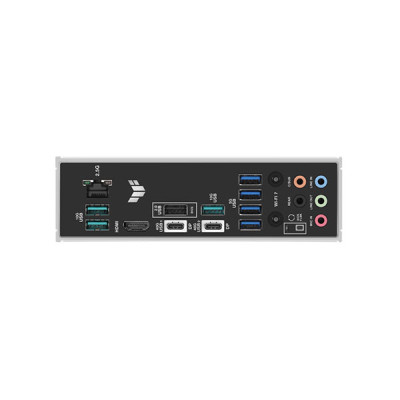

Back Panel I/O Ports | 2 x USB4 (40Gbps) (2 x USB Type-C) ports 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A - Compatible with PD3.0 |
Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

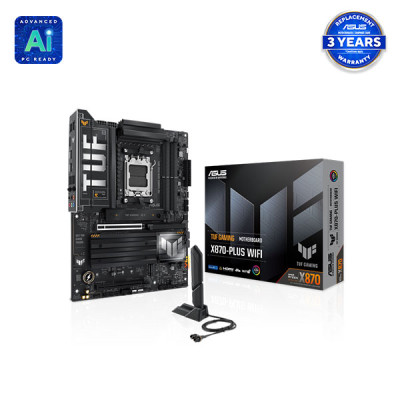

Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker Documentation 1 x Quick Start guide |
Operating System | Windows 11 |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard
ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard combines the power of AMD Ryzen processors with essential gaming features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive cooling system, this motherboard ensures stable performance for marathon gaming sessions. TUF GAMING motherboards are rigorously tested for endurance, making them reliable even under extreme conditions. This platform also meets the demands of advanced AI PC applications with its power and connectivity features. ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard offers a complete AI solution, including AI Overclocking for smart overclocking, AI Cooling II for efficient thermal control, and AI Networking II for real-time bandwidth optimization. These features provide enhanced performance, efficient cooling, and ultrafast connectivity, ensuring a smooth gaming experience.
Dynamic OC Switcher is another key feature of the ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard. It allows you to set current and temperature thresholds to automatically switch between manual overclocking for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The Overclocking Load Guard adds an extra layer of protection against system crashes during overclocking. For those who want to maximize DDR5 memory performance, the ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard offers comprehensive memory tuning options. With support for AMD Extended Profiles for Overclocking (EXPO), you can push your DDR5 modules beyond stock speeds. Seasoned users can further customize performance through extensive UEFI settings. The motherboard also features two PCIe 5.0 M.2 slots, enabling data transfers of up to 128 Gbps. All M.2 slots support NVMe RAID configurations, allowing you to take full advantage of the latest storage speeds.
ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard includes USB4 40Gbps Type-C ports, providing high-speed data transfers and support for up to two external 4K displays. The motherboard's WiFi 7 ensures stable connections and low latency for seamless online gaming. With Addressable Gen 2 RGB headers, the motherboard automatically optimizes lighting effects for compatible ARGB gear. ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard comes with a 3-year replacement warranty for added peace of mind (terms and conditions apply).
Buy ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard in Bangladesh
You can buy your desired ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of ASUS in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
What is the ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard price in Bangladesh?
ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard price in Bangladesh is BDT ৳53,300.00 . At Global Brand, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. So what are you waiting for? Buy online ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard for you and enjoy a top-class experience. .
Where to buy authentic ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard in Bangladesh?
You can buy 100% authentic ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.
By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard in BDT as well you can buy online TUF GAMING X870-PLUS WIFI with best price. The ASUS TUF GAMING X870-PLUS WIFI AM5 ATX Gaming Motherboard is available in Bangladesh for the following price: ৳53,300.00 .Take advantage of our free delivery and don't miss out on the opportunity to buy TUF GAMING X870-PLUS WIFI online at the best price in Bangladesh!
