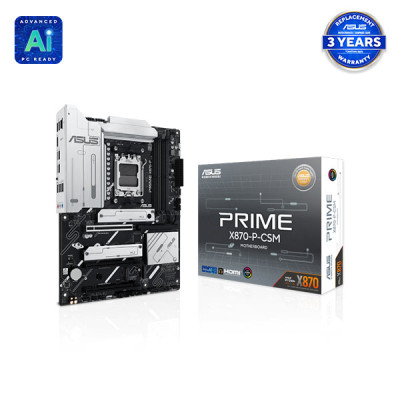

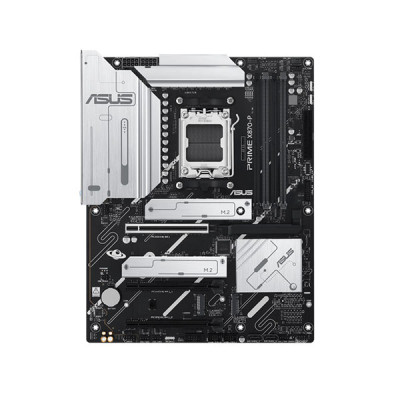

ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard
ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard
ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard

ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard

Key Features of PRIME X870-P-CSM:
Chipset: AMD X870 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 192GB, DDR5
Storage: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, DDR5, PCIe 5.0 slots, USB 40Gbps Type-C, Aura Sync
ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard
৳0.00
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD X870 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
attr -Key Feature 2 > Socket: AMD Socket AM5
attr -Key Feature 3 > Memory: 4 x DIMM slots, max. 192GB, DDR5
attr -Key Feature 4 > Storage: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
attr -Key Feature 5 > Features: Advanced AI PC-ready, DDR5, PCIe 5.0 slots, USB 40Gbps Type-C, Aura Sync
Motherboard
Model PRIME X870-P-CSM
CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset AMD X870 Chipset
Memory 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x HDMI port**
2 x USB4 (40Gbps) ports support USB Type-C display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)***
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
*** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**
2 x SATA 6Gb/s ports**
* PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
USB Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

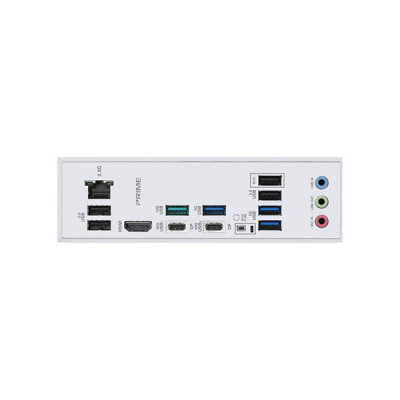

Back Panel I/O Ports 2 x USB4 (40Gbps) ports (2 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors

Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports

USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS DriverHub
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x M.2 rubber package
2 x Screw packages for M.2 SSD

Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide
Operating System Windows 11, Windows 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard Price in BD

ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard

ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard unlocks the full potential of AMD Ryzen 9000 series processors, designed for performance with powerful power delivery, cooling solutions, and intuitive tuning options. Built for users and PC builders, the PRIME X870-P-CSM supports AI PC-ready applications, delivering the power and connectivity for demanding tasks. Enhanced DDR5 Performance ensures smooth, optimized memory operation. The motherboard offers ASUS Enhanced Memory Profile (AEMP) for entry-level modules without EXPO support, automatically detecting memory chips and optimizing profiles. Advanced users can push DDR5 performance further with AMD Extended Profiles for Overclocking (EXPO™), making it easy to exceed standard DDR5 speeds.

The PCIe 5.0 Slot doubles data transfer speeds compared to PCIe 4.0, ensuring compatibility with previous PCIe versions. For storage, the four M.2 slots on the PRIME X870-P-CSM offer significant flexibility: one slot supports up to 128 Gbps data transfer via PCIe 5.0, two slots support 64 Gbps with PCIe 4.0, and one slot supports PCIe 3.0. These options provide faster boot-up times and reduced application load times. AI Cooling II technology dynamically adjusts fan speeds based on CPU temperatures, keeping your system cool and quiet. The motherboard also features 40Gbps USB Type-C ports, delivering high-speed connections for the latest external drives or up to two 4K displays, enhancing connectivity options.

With Aura Sync RGB lighting control, the PRIME X870-P-CSM provides customizable lighting for a unified look across compatible hardware. This motherboard offers a reliable base for high-performance builds, delivering speed, connectivity, and visual customization for both casual users and enthusiasts. The ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard is a versatile and powerful foundation for advanced setups, providing seamless performance for modern computing needs. This motherboard comes with a 3-year replacement warranty (*Terms and condition applied).
