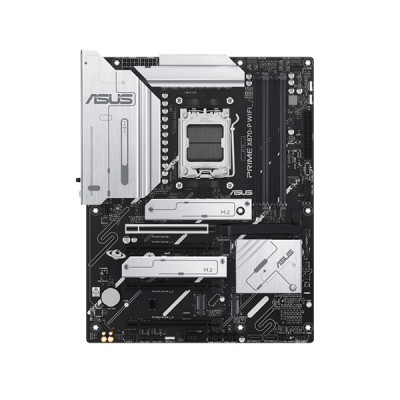

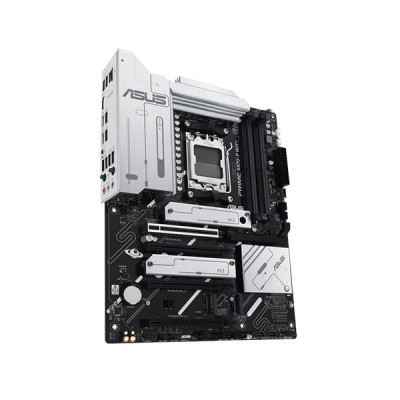

ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard
Key Features of PRIME X870-P WIFI-CSM:Chipset: AMD X870 Chipset AMD Ryzen 9000 & 8000 & 7000 Series |
Socket: AMD Socket AM5 |
Memory: 4 x DIMM slots, max. 192GB, DDR5 |
Storage: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports |
AI Solutions, WiFi 7, USB 40Gbps Type-C, PCIe 5.0 slots, Aura Sync |
Key Features | |
attr - Key Feature 1 > | Chipset: AMD X870 Chipset AMD Ryzen 9000 & 8000 & 7000 Series |
attr -Key Feature 2 > | Socket: AMD Socket AM5 |
attr -Key Feature 3 > | Memory: 4 x DIMM slots, max. 192GB, DDR5 |
attr -Key Feature 4 > | Storage: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports |
attr -Key Feature 5 > | AI Solutions, WiFi 7, USB 40Gbps Type-C, PCIe 5.0 slots, Aura Sync |
Motherboard | |
Model | PRIME X870-P WIFI-CSM |
CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list. |
Chipset | AMD X870 Chipset |
Memory | 4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
Graphics | 1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution. |
Expansion Slots | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 3 x PCIe 4.0 x16 slots (support x1 mode)*** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. *** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. |
Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**** 2 x SATA 6Gb/s ports**** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU. ** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. **** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs. |
Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
Wireless & Bluetooth | Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details. ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. |
USB | Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

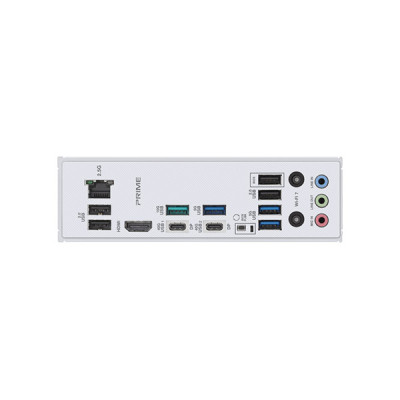

Back Panel I/O Ports | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable Gen 2 headers Remote Management Features IT Management software supported - ASUS Control Center Express(ACCE) |
Software Features | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

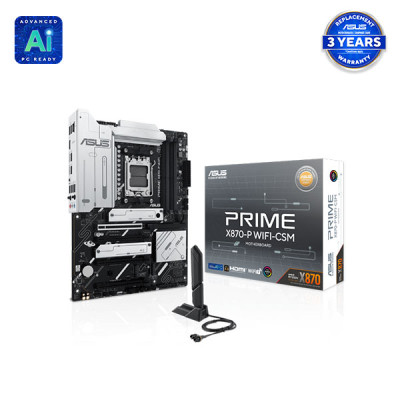

Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 2 x Screw packages for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide |
Operating System | Windows 11 |
Form Factor | ATX Form Factor 12 inch x 9.6 inch (30.5 cm x 24.4 cm) |
Warranty | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard
ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard is expertly built to maximize the performance of AMD Ryzen 9000 series processors. With a stable power design, advanced cooling solutions, and intelligent tuning options, this motherboard is ideal for both users and PC builders seeking performance optimization through easy-to-use software and firmware. ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard supports the latest AI features, including AI Networking II for real-time bandwidth management and AI Cooling II for efficient thermal control, providing fast connectivity, enhanced performance, and efficient cooling. Its power design includes 14+2+1 power stages, each rated for up to 80 amperes, ensuring stable power delivery for high-core-count AMD CPUs. This setup guarantees efficiency, stability, and top-notch performance for current and future AMD processors.
ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard enhances DDR5 memory performance with comprehensive tuning options. ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for entry-level modules without EXPO support. For users looking to push DDR5 speeds further, the motherboard offers extensive support for AMD Extended Profiles for Overclocking (EXPO) and a wide range of UEFI settings for further customization. ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard comes with four M.2 slots, including one supporting speeds up to 128 Gbps via PCIe 5.0, two supporting 64 Gbps via PCIe 4.0, and one supporting PCIe 3.0. These slots enable faster boot-up times and quicker application load times. Additionally, the motherboard is designed to stay cool under pressure with multiple onboard heatsinks and hybrid fan headers.The motherboard also features WiFi 7, which supports 160 MHz bandwidth in the 6 GHz band and ensures stable connections across 2.4, 5, and 6 GHz bands. With USB 40Gbps Type-C ports, the ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard allows high-speed data transfers and supports up to two external 4K displays. The PCIe 5.0 slot enhances data transfer speeds, while Aura Sync provides complete RGB lighting control for seamless synchronization with compatible hardware. Finally, Armoury Crate lets you customize RGB settings and manage ASUS devices with ease. ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard comes with a 3-year replacement Warranty *(Terms and Conditions Applied).
The motherboard also features WiFi 7, which supports 160 MHz bandwidth in the 6 GHz band and ensures stable connections across 2.4, 5, and 6 GHz bands. With USB 40Gbps Type-C ports, the ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard allows high-speed data transfers and supports up to two external 4K displays. The PCIe 5.0 slot enhances data transfer speeds, while Aura Sync provides complete RGB lighting control for seamless synchronization with compatible hardware. Finally, Armoury Crate lets you customize RGB settings and manage ASUS devices with ease. ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard comes with a 3-year replacement Warranty *(Terms and Conditions Applied).
Buy ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard in Bangladesh
You can buy your desired ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard at Global Brand PLC. We are the authorized distributor of ASUS in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
What is the ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard price in Bangladesh?
ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard price in Bangladesh is BDT ৳44,200.00 . At Global Brand, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. So what are you waiting for? Buy online ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard for you and enjoy a top-class experience. .
Where to buy authentic ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard in Bangladesh?
You can buy 100% authentic ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.
By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard in BDT as well you can buy online PRIME X870-P WIFI-CSM with best price. The ASUS PRIME X870-P WIFI-CSM AM5 ATX Motherboard is available in Bangladesh for the following price: ৳44,200.00 .Take advantage of our free delivery and don't miss out on the opportunity to buy PRIME X870-P WIFI-CSM online at the best price in Bangladesh!
