ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard

ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard

Key Features of ROG STRIX X870-F GAMING WIFI:

Chipset: AMD X870 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 192GB, DDR5
Storage: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AI Overclocking, Robust Power Solution, WIFI 7, Dual USB4 Type-C ports, PCIe Gen 5 Support

Based on 0 reviews. - Write a review

৳69,900.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: AMD X870 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
attr -Key Feature 2 >	Socket: AMD Socket AM5
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max. 192GB, DDR5
attr -Key Feature 4 >	Storage: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
attr -Key Feature 5 >	AI Overclocking, Robust Power Solution, WIFI 7, Dual USB4 Type-C ports, PCIe Gen 5 Support
Motherboard
Model	ROG STRIX X870-F GAMING WIFI
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.
Chipset	AMD X870
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory" Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI port* 2 x USB4 (40Gbps) ports support USB Type-C display outputs**** * Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. **Supports max. 4K@60Hz as specified in DisplayPort 1.4a ** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)** AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU. M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only. * M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled. **** M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors.
Ethernet	1 x Intel 2.5Gb Ethernet ASUS LANGuard
Internal I/O Ports	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Wireless & Bluetooth	Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 12 ports) 2 x USB4 (40Gbps) ports(2 x USB Type-C with DP Alt mode)* 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover * The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

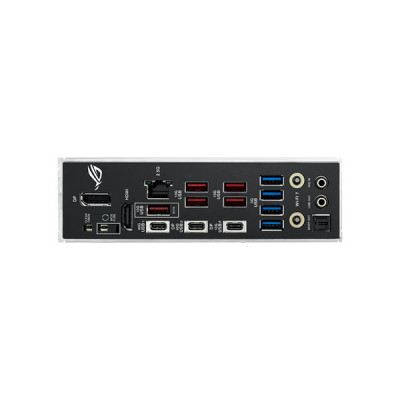

Back Panel I/O Ports	2 x USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet 2 x Audio jacks  1 x Optical S/PDIF out port 1 x BIOS FlashBack button  1 x Clear CMOS button
Special Features	Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers
Software Features	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey Dynamic OC Switcher FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 4 x M.2 rubber packages Documentation 1 x Quick start guide
Operating System	Windows 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard

ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard is built to deliver exceptional performance with AMD Ryzen 9000 Series Desktop Processors. This motherboard features an advanced power design and AI solutions that ensure peak performance, making it perfect for elite gaming and demanding AI applications. ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard offers AI Overclocking, which profiles the CPU and cooling to predict the best settings, pushing your system to its limits. With AI Cooling II, you can balance thermals and acoustics in any build with just a single click, ensuring efficient and quiet operation. The AI Networking II feature optimizes network performance, providing reliable and seamless connectivity while unleashing the full speed of WiFi 7 for uninterrupted gaming and data transfers.

For those who want to maximize DDR5 performance, the ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard is ready for enthusiast-grade DDR5 kits. With extensive AMD Extended Profiles for Overclocking (EXPO) support, you can push your memory beyond stock speeds, and seasoned users can further fine-tune performance using the UEFI’s comprehensive settings. ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard includes heatsinks that cover every M.2 slot, helping to keep your NVMe SSDs at optimal temperatures for consistent and reliable performance. The motherboard fully supports PCIe 5.0, with the top x16 expansion slot protected by a SafeSlot retention bracket to handle the weight of the latest graphics cards. Two onboard M.2 slots offer blazing-fast read and write speeds of up to 16 GB/s, while the remaining slots provide impressive 8 GB/s transfers. All M.2 slots are covered with substantial heatsinks to manage the heat of next-gen drives effectively.

ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard also features dual USB4 ports, each delivering up to 40 Gbps of bidirectional bandwidth for the latest high-speed devices. These ports support up to 8K external display output if one port is used or dual 4K displays if both are in use. This motherboard comes with a 3-year replacement warranty, ensuring peace of mind with your purchase. (Terms and conditions apply.)

Buy ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of ASUS in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
