ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard

ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard

Key Features of ProArt X870E-Creator WiFi:

Chipset: AMD X870E Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 192GB, DDR5
Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Exclusive AI Technologies, Dual Ethernet & WiFi 7, PCIe 5.0, Dual USB4, ProArt Creator Hub

Based on 0 reviews. - Write a review

৳77,000.00

Add to Cart

Buy Now

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: AMD X870E Chipset for AMD Ryzen 9000 & 8000 & 7000 Series
attr -Key Feature 2 >	Socket: AMD Socket AM5
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max. 192GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Exclusive AI Technologies, Dual Ethernet & WiFi 7, PCIe 5.0, Dual USB4, ProArt Creator Hub
Motherboard
Model	ProArt X870E-Creator WiFi
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.
Chipset	AMD X870E
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen 9000 Series Processors, 8000+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics	1 x HDMITM port 2 x USB4 (40Gbps) ports support USB Type-C display outputs* * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports 4K@60Hz as specified in HDMI 2.1. * Supports max. 8K@60Hz as specified in DisplayPort 1.4. **** Output at USB4_EC1 and USB4_EC2, each requires a USB-C to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)** AMD X870E Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/). ** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000series CPU. * PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
Ethernet	1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth v5.4* Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. * Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 11 ports) 2 x USB4 (40Gbps//20Gbps) port(s) (2 x USB Type-C) 1 x USB 20Gbps port(s) (1 x USB Type-C) 7 x USB 10Gbps port(s) (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)** 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3.0A ** USB Type-C power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

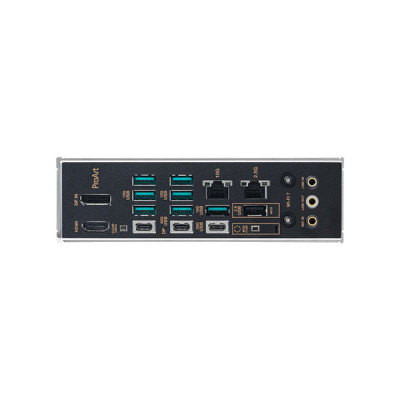

Back Panel I/O Ports	2 x USB4 (40Gbps) port(s) (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 7 x USB 10Gbps ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMITM port 1 x Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A - Compatible with PD3.0
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z ProArt Creator Hub CreationFirst Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

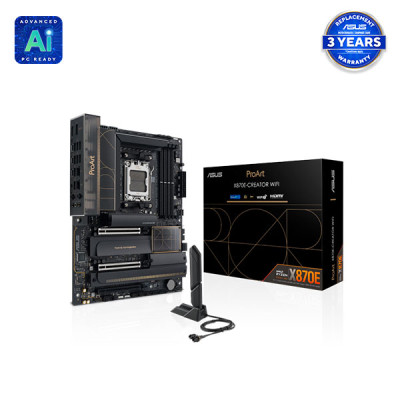

Accessories	Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Latch package 1 x M.2 Q-Latch Q-Slide package for M.2 backplate 2 x Rubber Packages for M.2 1 x ProArt ruler Documentation 1 x Quick start guide 1 x ACC Express Activation Key Card
Operating System	Windows 11
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard

ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard is designed to maximize the performance of the latest AMD Ryzen 9000, 8000, and 7000 Series processors, making it ideal for content creators at all levels. With 16+2+2 team power stages, DDR5 support, PCIe 5.0, and lightning-fast connectivity, including dual USB4, 10G, and 2.5G Ethernet, and WiFi 7, this motherboard delivers the power and speed needed for demanding creative tasks. ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard offers dual USB4 ports, allowing you to connect all your content creation gadgets with up to 40 Gbps bi-directional data transfers. You can also push your creative work further by connecting one 8K or two 4K monitors through the USB4 ports, using the onboard DisplayPort In port for your discrete graphics card.

With revolutionary WiFi 7, ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard is up to 4.8 times faster than standard WiFi 6, thanks to 320 MHz channels on the 6GHz band and 4K QAM. Multi-Link Operation (MLO) provides a stable WiFi connection and low latency, making it perfect for gaming, streaming, and industrial IoT applications. The motherboard features PCIe 5.0 expansion slots, offering incredible speeds of up to 64 GB/s for compatible devices. Both x16 expansion slots are protected with SafeSlot retention brackets, and the top slot is easily accessible with the Q-Release Slim feature.

ASUS ProArt X870E-Creator WiFi AM5 ATX Gaming Motherboard includes a USB 20Gbps Type-C front-panel connector with Quick Charge 4+, allowing fast data transfers and quick charging of devices at up to 30 watts. With AI Overclocking, AI Cooling II, and AI Networking II, the motherboard optimizes CPU performance, cooling, and network performance, ensuring a seamless creative experience. The motherboard also supports DDR5 memory overclocking with AMD Extended Profiles for Overclocking (EXPO), allowing you to push your memory beyond stock speeds.

Customize your settings with the ProArt Creator Hub, which offers an intuitive dashboard for monitoring your PC status, adjusting fan profiles, and optimizing your workflow. The upgraded UEFI BIOS simplifies motherboard configuration with the BIOS Q-Dashboard, making it easy to set up your system. ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard comes with a 3-year replacement warranty, providing peace of mind for your investment (terms and conditions apply).

Buy ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard in Bangladesh

You can buy your desired ASUS ProArt X870E-Creator WiFi AM5 ATX Motherboard at Global Brand PLC. We are the authorized distributor of ASUS in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
