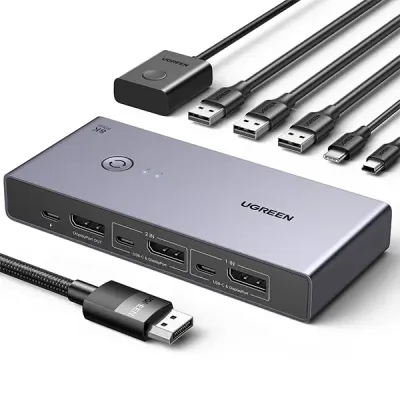

UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch
UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch
UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch

UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch

Key Features of CM695 (25962):
Supports up to 8K@60Hz resolution (DP 1.4, HDCP 2.3).
Includes 3×USB-A and 1×USB-C ports with 5Gbps transfer and 3A current limit.
Switches between 2 DP sources via button or controller with memory function.
Works with Windows, macOS, and Linux; no noticeable delay.
Warranty: 01-Year Brand Warranty
UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch
৳8,400.00
Specification:
Key Features
attr - Key Feature 1 > Supports up to 8K@60Hz resolution (DP 1.4, HDCP 2.3).
attr -Key Feature 2 > Includes 3×USB-A and 1×USB-C ports with 5Gbps transfer and 3A current limit.
attr -Key Feature 3 > Switches between 2 DP sources via button or controller with memory function.
attr -Key Feature 4 > Works with Windows, macOS, and Linux; no noticeable delay.
attr -Key Feature 5 > Warranty: 01-Year Brand Warranty
Additional Info
Additional Info Brand: Ugreen
Model: CM695 (25962)
Product Type: UGREEN 2 In 1 Out DisplayPort KVM Switch

Input Ports:
2 × DisplayPort (DP 1.4, HDCP 2.3)
- Max resolution: 8K@60Hz (4:4:4, 8-bit)
Backward compatible with:
4K@120Hz
1080P@60Hz
2560×1440@60Hz
720P@60Hz

Output Ports:
1 × DisplayPort (DP 1.4, HDCP 2.3)
- Max resolution: 8K@60Hz (4:4:4, 8-bit)
- Same compatibility as input
1 × USB-C (USB 3.0, up to 5Gbps)
3 × USB-A (USB 3.0, up to 5Gbps)
1 × Mini USB (for desktop controller)

Switching Control:
Button switch on device
KVM desktop controller
Hotkey switching: Not supported

Indicator Lights:
Input source indicators: 1 and 2 (Blue LEDs)
Memory function retains last selected source after powering off

Power Requirements:
USB-C power supply: 5V⎓4A minimum required
No-load current: ≈ 49 mA
Working current: ≈ 193 mA

Bandwidth:
Single channel: 8.1 Gbps
Total video bandwidth: 32.4 Gbps

USB Performance:
USB read/write speeds (all ports):
- Read: 412 MB/s
- Write: 402 MB/s
Total current limit: 3A (approx. 1.5A per two ports)
Supports short-circuit and overcurrent protection

Video Format Support:
RGB / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0
Color depth: 8-bit / 10-bit / 12-bit
3D, CEC, HDR: Supported

Audio Format:
LPCM only (other formats not supported in current testing)
Audio delay: Almost none

Operating Conditions:
Operating temperature: 0℃ to 45℃
Storage temperature: -20℃ to 60℃
Measured casing temperature at full load: ≈ 35℃ (ambient 31℃)

Compatibility:
Windows 11/10/8.1/8/7
macOS
Linux (Ubuntu)

Warranty: 01-Year Brand Warranty
Description:

UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch Price in Bangladesh

UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch

UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch allows you to alternate two DisplayPort signal source devices with one display and a set of USB peripherals. It is compatible with up to 8K@60Hz resolution, which provides smooth and clear video. The switch is compatible with DisplayPort 1.4 and HDCP 2.3 and also backward compatible with 4K@120Hz, 1080P@60Hz, and other popular resolutions.

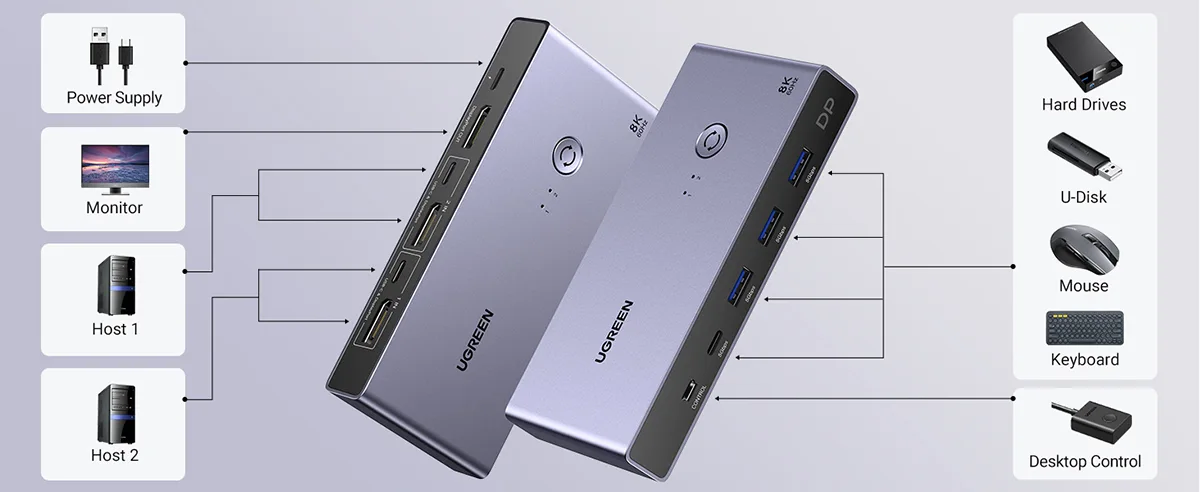

It has 2×DP input ports and 1×DP female output for displays. The 1×USB-C and 3×USB-A ports also support USB 3.0 standards for fast file transfer up to 5Gbps. It is accompanied by a Mini USB port where the KVM desktop controller can be connected in case of manual control. For switching, it can be done using a button or the desktop controller. It does not support hotkey switching. This switch supports RGB, YCbCr 4:4:4, 4:2:2, and 4:2:0 video formats with 8, 10, and 12-bit color modes. It also supports HDR video output as well as the LPCM audio format. Short-circuit and overcurrent protection are integrated to ensure the protection of devices. USB current limit is 3A in total, which can supply power to USB devices inserted. The switch provides read/write speeds of up to 412 MB/s and 402 MB/s on all USB ports.

It supports Windows 11/10/8.1/8/7, macOS, and Linux (Ubuntu). Its operating temperature is 0℃ to 45℃, and storage temperature is -20℃ to 60℃. Casing temperature during full-load operation is maintained at around 35℃ in a 31℃ environment. UGREEN CM695 can support stable, high-speed switching among multiple DisplayPort devices with one monitor and keyboard-mouse setup for office, home, or editing use.

Buy UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch in Bangladesh

You can buy your desired UGREEN CM695 (25962) 2 In 1 Out DisplayPort KVM Switch at Global Brand PLC. We are the authorized distributor of UGREEN in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
