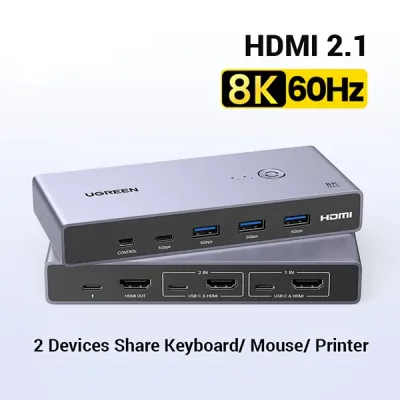

UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch
UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch
UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch
UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch

UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch

Key Features of CM692 (25961):
8K@60Hz HDMI output with HDMI 2.1 support
USB 3.0 ports with 5Gbps data transfer
One-button input switch with memory function
Compatible with Windows, macOS, Linux
Warranty: 01-Year Brand Warranty
UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch
Based on 0 reviews. - Write a review
৳8,400.00
Add to Cart
Buy Now
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > 8K@60Hz HDMI output with HDMI 2.1 support
attr -Key Feature 2 > USB 3.0 ports with 5Gbps data transfer
attr -Key Feature 3 > One-button input switch with memory function
attr -Key Feature 4 > Compatible with Windows, macOS, Linux
attr -Key Feature 5 > Warranty: 01-Year Brand Warranty
Additional Info
Additional Info Brand: Ugreen
Model: CM692 (25961)
Product Type: UGREEN Out HDMI KVM Switch

Input Ports and Specifications
2× HDMI (female):
- For HDMI signal sources
- HDMI 2.1, HDCP 2.3/1.4
- Max resolution: 8K@60Hz RGB/YCbCr 4:4:4 12-bit

Backward compatible with:
- 8K@30Hz
- 4K@240Hz / 120Hz / 60Hz
- 2560×1440@60Hz
- 1080P@60Hz
- 720P@60Hz

2× USB-C (input):
- USB 3.0 standard, backward compatible with USB 2.0 / 1.1
- Max transfer rate: 5Gbps

1× USB-C (power):
- For DC power input
- Voltage: 5V ±5% (4.75V–5.25V)

Output Ports and Specifications
1× HDMI (female):
- For connecting display devices
- Max resolution: 8K@60Hz RGB/YCbCr 4:4:4 12-bit
- Backward compatible with 8K@30Hz, 4K@240/120/60Hz, 1080P@60Hz, etc.

1× USB-C (output):
- USB 3.0 standard
- For peripherals: keyboard, mouse, USB flash drives, printers
- Max transfer rate: 5Gbps, backward compatible with USB 2.0 / 1.1

1× Mini USB (female):
For KVM desktop controller connection

Video & Audio
Bandwidth:
- Single channel: 12 Gbps
- Total video bandwidth: 48 Gbps

Video formats:
- RGB, YCbCr 4:4:4, 4:2:2, 4:2:0 (8/10/12 bpc)

Audio formats:
- HDMI audio supported up to 192kHz / 24-bit

Supports:
- 3D, HDR, CEC

Performance
Image delay:
- Almost none

USB read/write speeds:
- USB1: Read 335 MB/s / Write 346 MB/s
- USB2: Read 338 MB/s / Write 358 MB/s
- USB3: Read 358 MB/s / Write 342 MB/s
- USB4: Read 348 MB/s / Write 346 MB/s

USB power limit:
- 4 USB ports total
- 3A max (1.5A per 2 ports)
- Overcurrent and short-circuit protection

Control & Indicators

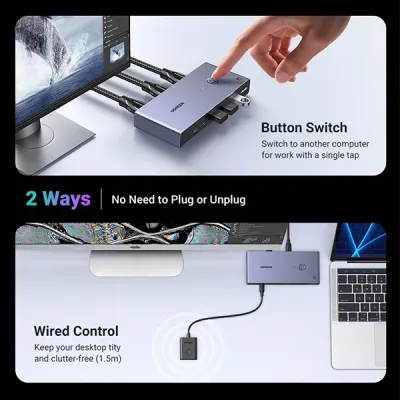

Switching method:
- Button or Desktop controller
- No hotkey support

Indicator light:
- Blue LED
- Power-off memory to retain last selected channel

Power & Consumption
Power supply requirement:
- Must use either USB A-C input or external 5V USB-C

Power consumption:
- No-load: ≈ 269 mA
- Full load: ≈ 318 mA

Environmental Conditions:
Operating temperature: 0°C to 45°C
Storage temperature: -20°C to 60°C
Measured casing temperature (full load): ~34.8°C (ambient 27.4°C)

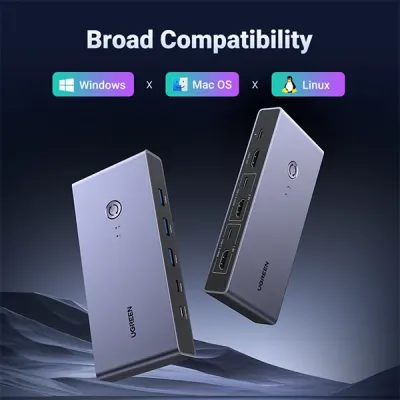

System Compatibility:
Windows: 11, 10, 8.1, 8, 7
macOS
Linux (Ubuntu)

Warranty: 01-Year Brand Warranty
Description:

UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch

UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch is a simple and convenient way to share one monitor, keyboard, and mouse between two computers. It features two HDMI input ports, which are compatible with HDMI 2.1 and HDCP 2.3/1.4, supporting up to 8K@60Hz video resolution with RGB or YCbCr 4:4:4 12-bit. It also provides support for lower resolutions such as 8K@30Hz, 4K@240Hz/120Hz/60Hz, and 1080P@60Hz. There is an HDMI output port for linking display devices with the same high-quality support.

This KVM switch has two USB-C input ports that are USB 3.0 compliant and backward compatible with USB 2.0/1.1. There is an additional USB-C input for power delivery (5V ±5%, 4.75V to 5.25V range). For output, there is a single USB-C port to connect peripherals like a keyboard, mouse, printer, or USB flash drives. All the USB ports support data transfer rates up to 5Gbps. There is a mini USB port to connect to a desktop KVM controller.

The switch is HDR, CEC, 3D format, and up to 192kHz/24-bit high-quality audio. A blue LED indicator shows the current input channel chosen, with a memory function to store the last input chosen even after power-off. Button or desktop controller switching is supported; it lacks hotkey switching support. Total USB current is limited to 3A, with short-circuit and overcurrent protection. Read and write speed via USB ports is between 335–358 MB/s. It supports Windows 7-11, macOS, and Linux (Ubuntu). Operating temperature is from 0°C to 45°C, and it is built to withstand prolonged working hours with a consistent temperature.

Buy UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch in Bangladesh

You can buy your desired UGREEN CM692 (25961) 2 In 1 Out 8K HDMI KVM Switch at Global Brand PLC. We are the authorized distributor of UGREEN in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
