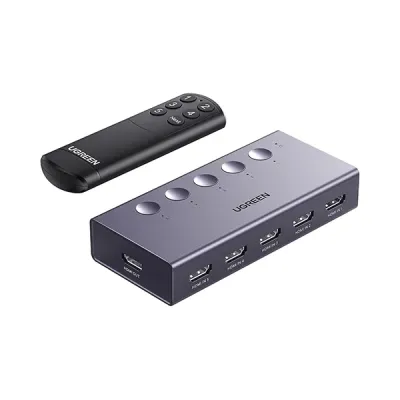

UGREEN CM568 (25857) 5 In 1 Out HDMI Switch
UGREEN CM568 (25857) 5 In 1 Out HDMI Switch
UGREEN CM568 (25857) 5 In 1 Out HDMI Switch

UGREEN CM568 (25857) 5 In 1 Out HDMI Switch

Key Features of CM568 (25857):
Supports 5 HDMI inputs and 1 HDMI output with 4K@60Hz resolution and HDCP 2.2 compatibility.
Remote and button control switching, with LED indicators and memory for last selected channel.
Wide audio and video format support, including HDR, Dolby Atmos, DTS 7.1, and 3D.
External USB-C power input (5V/1A) with short-circuit, overcurrent protection, and low power use.
Warranty: 01-Year Brand Warranty
UGREEN CM568 (25857) 5 In 1 Out HDMI Switch
Based on 0 reviews. - Write a review
৳4,200.00
Add to Cart
Buy Now
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Supports 5 HDMI inputs and 1 HDMI output with 4K@60Hz resolution and HDCP 2.2 compatibility.
attr -Key Feature 2 > Remote and button control switching, with LED indicators and memory for last selected channel.
attr -Key Feature 3 > Wide audio and video format support, including HDR, Dolby Atmos, DTS 7.1, and 3D.
attr -Key Feature 4 > External USB-C power input (5V/1A) with short-circuit, overcurrent protection, and low power use.
attr -Key Feature 5 > Warranty: 01-Year Brand Warranty
Additional Info
Additional Info Brand: Ugreen
Model: CM568 (25857)
Product Type: UGREEN HDMI Switch

Input Ports and Specifications:
5 x HDMI female ports
- Supports HDMI 2.0
- HDCP 2.2/1.4
- Max resolution: 4K@60Hz
Backward compatible with:
- 4K@30Hz
- 2560×1440@120Hz
- 1920×1080@240Hz

1 x USB-C female port:
- For power input only (5V/1A)
- Cannot transmit data

1 x Infrared port:
- For remote control input

Output Ports and Specifications:
1 x HDMI female port
- Max resolution: 4K@60Hz
Backward compatible with:
- 4K@30Hz
- 2560×1440@120Hz
- 1920×1080@240Hz

Button & Indicator Light:
5 buttons
- Tap to switch HDMI inputs

LED Indicators:
- Red = Power
- Blue = Active channel
- Off = Not powered
- Retains last input after power-off

Power Requirements:
Power Supply
- External USB-C 5V/1A
- Power cable included
- Power adapter not included

Power Consumption:
- No-load current ≈ 15 mA

Performance:
TMDS Clock Frequency: 600 MHz
Video Bandwidth: 18 Gbps (6 Gbps per channel)
Image Delay: Almost none

Video Formats Supported:
RGB
YCbCr 4:4:4
YCbCr 4:2:2
YCbCr 4:2:0
Color depth: 8/10/12-bit per channel

Audio Formats Supported
LPCM 2.0
Dolby 2.0 / 5.1 / Atmos
DTS 5.1 / 7.1
Up to 192kHz/24-bit

Other Features:
Supports 3D / CEC / HDR
Switch Mode: Button or Remote (No auto-switching)
Power failure memory function
HDMI cable length depends on signal strength (refer to wire gauge guidelines)

Environmental Specs:
Operating Temp: 0°C to 40°C
Storage Temp: -20°C to 60°C

Max Surface Temp: ~33°C (at 25°C ambient temp under full load)

System Compatibility:
Windows 11/10/8.1/8/7
macOS
Linux (Ubuntu)

Warranty: 01-Year Brand Warranty
Description:

UGREEN CM568 (25857) 5 In 1 Out HDMI Switch

UGREEN CM568 (25857) 5 In 1 Out HDMI Switch is suitable for those who need to connect multiple HDMI devices to a single display. It is equipped with 5 HDMI in and 1 HDMI out ports and supports HDMI 2.0 and HDCP 2.2/1.4. The switch supports 4K at 60Hz resolution and also has backward compatibility for 4K at 30Hz, 2560x1440 at 120Hz, and 1080p at 240Hz. It also supports video formats like RGB, YCbCr 4:4:4, 4:2:2, and 4:2:0 at 8, 10, or 12-bit color. It has a USB-C terminal to provide external power from a 5V/1A source, and an IR terminal for remote control. It offers 5 control buttons to change channels, with an LED display of active sources. The unit remembers the last input employed even in the case of power loss.

It has audio support in LPCM 2.0, Dolby 2.0/5.1/Atmos, and DTS 5.1/7.1 up to 192kHz/24bit. It is 3D, CEC, and HDR-compatible. The TMDS clock is 600 MHz with a video bandwidth of 18 Gbps to process the signal very fast with nearly zero delay. Low power dissipation and no-load current of about 15 mA. No power supply, but it has a power cord. Operating temperature range of 0°C to 40°C and storage temperature range of -20°C to 60°C. Generates about 33°C of surface temperature while operating at full load in an ambient of 25°C. The device is compatible with Windows 11/10/8.1/8/7, macOS, and Linux (Ubuntu). There is no auto-switching supported; switching manually or through remote is necessary. This HDMI switch is ideal for home and office use where there are multiple devices that require sharing a single screen.

Buy UGREEN CM568 (25857) 5 In 1 Out HDMI Switch in Bangladesh

You can buy your desired UGREEN CM568 (25857) 5 In 1 Out HDMI Switch at Global Brand PLC. We are the authorized distributor of UGREEN in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
