ASUS PRIME B860M-A Intel LGA1851 mATX Motherboard

ASUS PRIME B860M-A Intel LGA1851 mATX Motherboard

Key Features of PRIME B860M-A:

Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Memory: 4 x DIMM slots, max. 256GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, PCIe 5.0 slots, EZ PC DIY, AI Intelligence, Aura Sync

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max. 256GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, PCIe 5.0 slots, EZ PC DIY, AI Intelligence, Aura Sync
Motherboard
Model	PRIME B860M-A
CPU	Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B860 Chipset
Memory	4 x DIMM slots, max. 256GB, DDR5 Supports up to 8666+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	2 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots	Intel Core Ultra Processors(series 2) 1 x PCIe 5.0 x16 slot Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes) 4 x SATA 6Gb/s ports Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
USB	Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A ) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

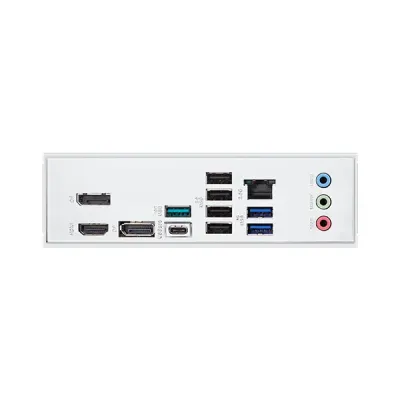

Back Panel I/O Ports	1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A ) 2 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield Aura Sync - Aura RGB header - Addressable Gen2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 rubber package 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor	9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS PRIME B860M-A Intel LGA1851 mATX Motherboard

The ASUS PRIME B860M-A Intel LGA1851 mATX Motherboard is designed to work with Intel Core Ultra Processors of Series 2 for ultimate performance and customization. A 7+1+1+1 power stage design is supported by enlarged VRM heatsinks, which efficiently deliver power to face the most demanding workloads. It features DDR5 memory with AEMP III and DIMM Fit to further boost speed, compatibility, and stability. It features two M.2 slots, one at PCIe 5.0 for data speeds up to 128Gbps and another at PCIe 4.0 for 64Gbps. With onboard features like PCIe 5.0 x16 SafeSlot, the installation of a graphics card is much better, while USB Type-C ports feature 20Gbps data transfer speeds. Realtek 2.5Gb Ethernet ensures lag-free networking performance for gaming and productivity.

Multiple onboard heatsinks and hybrid fan headers, along with ASUS Fan Xpert 2+ software, provide cooling support. Auto-tuning and an extremely quiet mode let users have advanced fan control and quieter operation during light loads. It features a pre-mounted I/O shield, SafeSlot for secure GPU installation, and Q-LED Core for troubleshooting. The UEFI BIOS offers easy setup through its user-friendly options for beginners and more advanced settings for seasoned veterans.

Other notable personalization features include Aura Sync RGB lighting, with three Addressable Gen 2 RGB headers for custom effects. Control system settings and lighting via Armoury Crate software. Meanwhile, driver management becomes easier with ASUS DriverHub for one-click installation and update. In ensuring stable performance with efficient power delivery, the PRIME B860M-A boasts a six-layer PCB design, ProCool connectors, and a passive chipset heatsink. It's a great motherboard to build a reliable system, with advanced connectivity, fast storage, and easy customization.

Buy ASUS PRIME B860M-A Intel LGA1851 mATX Motherboard in Bangladesh

You can buy your desired ASUS PRIME B860M-A Intel LGA1851 mATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
