ASUS PRIME B860M-K-CSM Intel LGA1851 mATX Motherboard

ASUS PRIME B860M-K-CSM Intel LGA1851 mATX Motherboard

Key Features of PRIME B860M-K-CSM:

Chipset: Intel B860 Chipset for Intel Core Ultra Processors(Series 2)
Socket: Intel Socket LGA1851
Memory: 2 x DIMM slots, max. 128GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Features: Advanced AI PC-ready, Onboard Heatsinks, Aura Sync, ASUS Fan Xpert 2+, AI Advisor, AEMP III

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel B860 Chipset for Intel Core Ultra Processors(Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 2 x DIMM slots, max. 128GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
attr -Key Feature 5 >	Features: Advanced AI PC-ready, Onboard Heatsinks, Aura Sync, ASUS Fan Xpert 2+, AI Advisor, AEMP III
Motherboard
Model	PRIME B860M-K-CSM
CPU	Supports Intel Core Ultra Processors (Series 2), LGA1851* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B860 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual-channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI port* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphics cards' resolution.
Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel B860 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
USB	Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A. ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

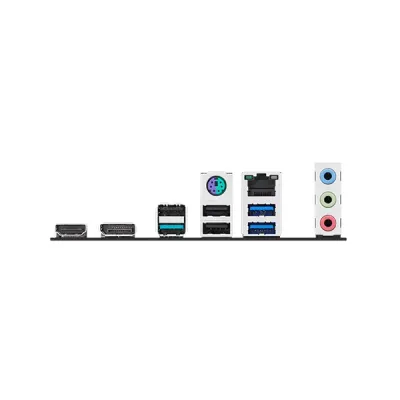

Back Panel I/O Ports	1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A) 1 x DisplayPort 1 x HDMITM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III - DIGI+VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	256(128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package Documentation 1 x Quick start guide 1 x ACC Express activation key card
Operating System	Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor	micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Warranty	3-Year Brand Warranty (Condition applied)

Description:

ASUS PRIME B860M-K-CSM Intel LGA1851 mATX Motherboard

From ASUS, for stable performance, strong connectivity, and smooth building experiences, comes the PRIME B860M-K-CSM Intel LGA1851 mATX Motherboard. It features support for the latest Intel Core Ultra Processors (Series 2), with a digital power design of 6+1+1+1 phases and a ProCool 8-pin connector for steady power delivery. The board supports DDR5 memory, has only two DIMM slots, and features AEMP III, which delivers speeds up to DDR5-7600 at OC for better performance in heavy workloads and AI tasks.

It features two M.2 slots for storage: one is PCIe 5.0 for speeds up to 128Gbps, and another one is PCIe 4.0 for 64Gbps, helping apps and the OS load fast. Cooling features on the motherboard include VRM heatsinks, thermal pads, a passive chipset heatsink, hybrid fan headers, and Fan Xpert 2+ software for smart fan control, which also includes an Extreme Quiet mode for low-noise usage. The motherboard features a PCIe 4.0 x16 slot with SafeSlot Core+ protection, two PCIe 4.0 x1 slots, USB 10Gbps Type-A, USB 5Gbps Type-C, Realtek 2.5Gb Ethernet, and Aura Sync support for full RGB lighting control. Armoury Crate, DriverHub and UEFI BIOS give quick setup, driver updates, and easy customisation. Two addressable Gen2 RGB headers auto-detect LED devices for smooth lighting effects.

Part of ASUS Corporate Stable Model, it provides up to 36-month supply support, plus ASUS Control Centre Express for IT management - including device monitoring, remote updates, and secure endpoint control. The ASUS PRIME B860M-K-CSM is a reliable solution for AI PC builds, home systems, and business desktops, respectively, promoting performance, cooling, flexibility, and easy DIY in a compact mATX form.
