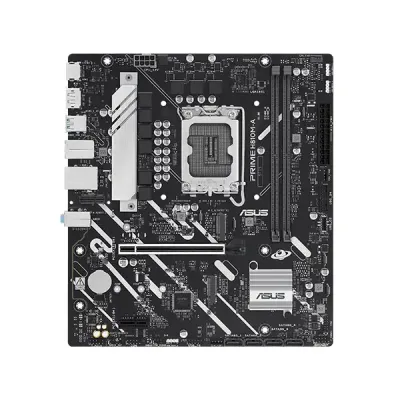

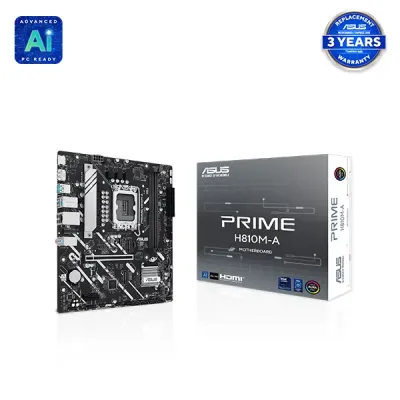

ASUS PRIME H810M-A Intel LGA1851 mATX Motherboard

ASUS PRIME H810M-A Intel LGA1851 mATX Motherboard

Key Features of PRIME H810M-A:

Chipset: Intel H810 Chipset for Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Memory: 2 x DIMM slots, max. 128GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, PCIe 4.0 slots, EZ PC DIY, Aura Sync

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel H810 Chipset for Core Ultra Processors (Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 2 x DIMM slots, max. 128GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, PCIe 4.0 slots, EZ PC DIY, Aura Sync
Motherboard
Model	PRIME H810M-A
CPU	Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H810 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. VGA resolution support depends on processor's or graphic cards' resolution.
Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Ethernet	1 x Intel 1Gb Ethernet port ASUS LANGuard With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wireless & Bluetooth	V-M.2 slot only (Key E, CNVi & PCIe) Wi-Fi module is sold separately.
USB	Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

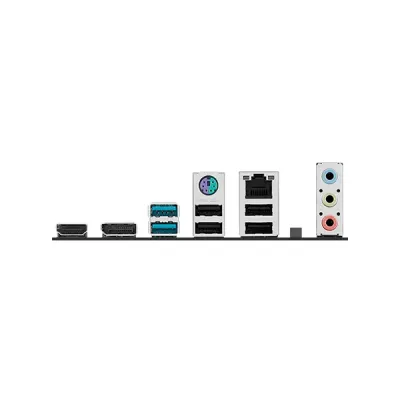

Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Vertical M.2 slot (Key E) 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor	micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS PRIME H810M-A Intel LGA1851 mATX Motherboard

The ASUS PRIME H810M-A Intel LGA1851 mATX Motherboard is designed to support Intel Core Ultra Processors, Series 2. It features a 6+1+1+1 phase digital power design for stable and efficient power delivery. With two DIMM slots, it supports DDR5 memory with DIMM Fit technology that optimizes performance and system stability. Featured on this motherboard are two M.2 PCIe 4.0 slots, one running up to 64Gbps and the other at up to 32Gbps for faster boot times and application loading. The PCIe 4.0 x16 and PCIe 4.0 x1 slots allow versatility with graphics cards and expansions. Ensuring that data transfers are smooth and networking is reliable, it provides USB 10Gbps Type-A, USB 5Gbps Type-C, and Intel 1Gb Ethernet.

Features like VRM heatsinks, thermal pads, and hybrid fan headers are available on the PRIME H810M-A for cooling. The ASUS Fan Xpert 2+ software offers fan control, including Auto-Tuning and Extreme Quiet modes. All this enables a system that runs cooler and more silently. An additional passive chipset heatsink provides extra stability when the workloads get heavier. Other customization features include the ASUS Armoury Crate software to control lighting with Aura Sync, which syncs seamlessly with supported hardware. Addressable Gen2 RGB headers automatically switch lighting effects based on the LED count. The UEFI BIOS has simple settings for beginners and advanced options for seasoned veterans.

The motherboard is designed to make DIY builds even easier with features like EZ PC DIY, such as SafeSlot Core+, which protects the PCIe slot with a robust stainless-steel brace. Q-LED Core aids in troubleshooting to make setup and maintenance easier. From its dependable performance and advanced cooling to its versatile connectivity options, the ASUS PRIME H810M-A is a dependable choice for modern PC builds, whether for gaming, content creation, or daily use.

Buy ASUS PRIME H810M-A Intel LGA1851 mATX Motherboard in Bangladesh

You can buy your desired ASUS PRIME H810M-A Intel LGA1851 mATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
