ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard
ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard
ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard
ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard

ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard

Key Features of PRIME B760M-F WIFI:
Chipset: Intel B760 Chipset for 14th, 13th, 12th Gen, Pentium Gold and Celeron Processors
Socket: Intel Socket LGA1700
Storage Supports: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Memory: 2 x DIMM slots, Max. 96GB, DDR5
Features: PCH Heatsinks, PCIe 5.0, Two-Way AI Noise Cancelation, Aura Sync RGB Lighting
ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard
Based on 0 reviews. - Write a review
৳17,700.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: Intel B760 Chipset for 14th, 13th, 12th Gen, Pentium Gold and Celeron Processors
attr -Key Feature 2 > Socket: Intel Socket LGA1700
attr -Key Feature 3 > Storage Supports: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
attr -Key Feature 4 > Memory: 2 x DIMM slots, Max. 96GB, DDR5
attr -Key Feature 5 > Features: PCH Heatsinks, PCIe 5.0, Two-Way AI Noise Cancelation, Aura Sync RGB Lighting
Motherboard
Model PRIME B760M-F WIFI
CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B760 Chipset
Memory 2 x DIMM slots, Max. 96GB, DDR5
8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400 (OC)/6200(OC)
/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual-channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab on the product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Graphics 1 x DisplayPort**
1 x HDMI port***

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@30Hz as specified in HDMI 1.4.
Expansion Slots Intel CoreTM Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot

Intel B760 Chipset
1 x PCIe 4.0 x1 slot

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet 1 x Realtek 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 4 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

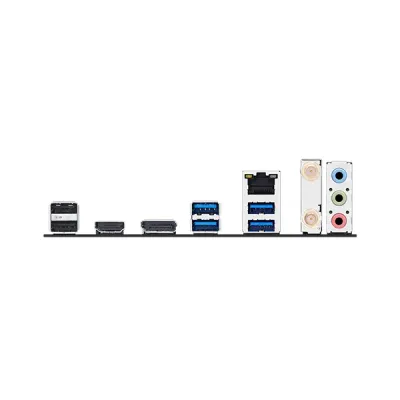

Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous
2 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuardv - Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS EZ DIY
- ProCool

ASUS Thermal Solution
- Aluminum heatsink design

Aura Sync
- Addressable RGB Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS DriverHub
-ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O Shield
2 x M.2 anchors

Documentation
1 x Quick start guide
Operating System Windows 11, Windows 10 64-bit
Form Factor micro-ATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard Price in Bangladesh

ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard

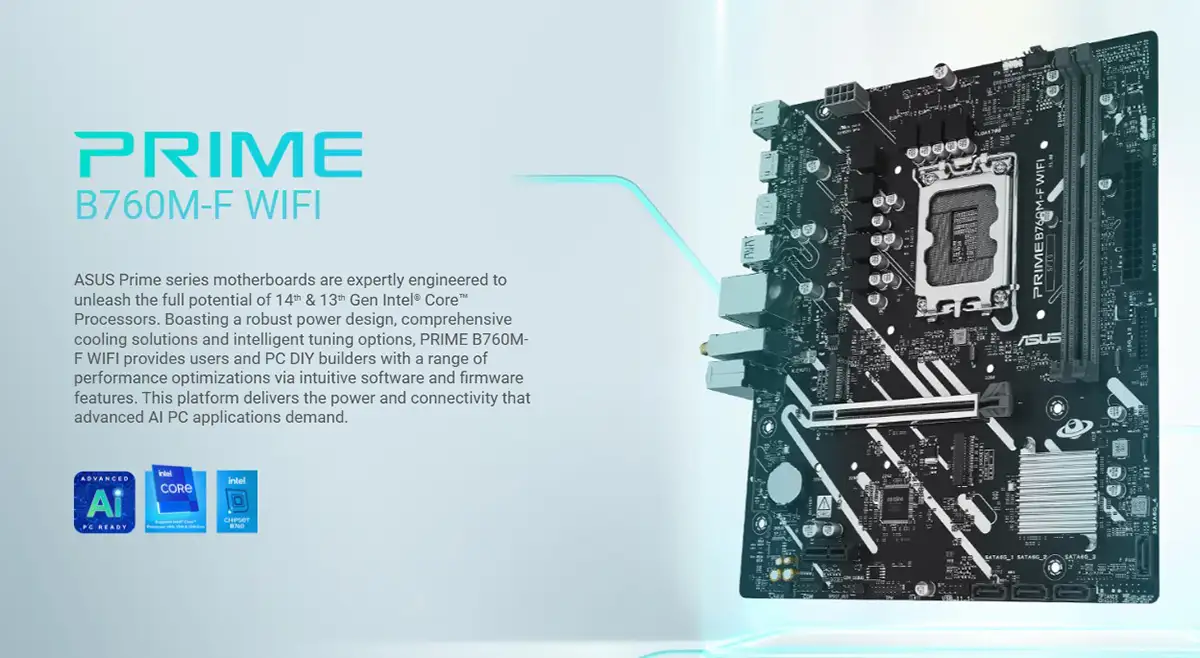

ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard is designed for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors. ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard has a sturdy base for everyday use, gaming, and future AI PC setups. The board features DDR5 memory and PCIe 5.0, offering speed and performance for modern systems. It features a single PCIe 5.0 x16 and one PCIe 4.0 x1 for high-speed expansion capabilities. Two PCIe 4.0 M.2 storage facilities and four SATA 6Gbps ports for standard drives are available. Front USB 5Gbps headers and various rear ports offer easy access for standard use.

Integrated Wi-Fi 6 and Realtek 1Gb Ethernet provide reliable internet connectivity. The motherboard also includes HDMI and DisplayPort outputs to render onboard graphics. ASUS Fan Xpert 2+ software and hybrid fan headers help keep system temperatures down with silent and smart cooling. The board features 8-pin ProCool power connectors with solid pins for better current delivery. It also offers several thermal sensors and quiet mode support to run cooler and quieter with light usage or heavy workloads.

Onboard audio features audio shielding, special PCB layers, and high-quality caps for clean and clear audio. Two-Way AI Noise Cancelation provides a clearer voice when calling or gaming by reducing background noise. With two RGB Gen 2 headers and Aura Sync, adding and synchronizing lighting effects is easy for users. ASUS PRIME B760M-F WIFI also comes with a 1-month Adobe Creative Cloud subscription, perfect for content creators.

Buy ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard in Bangladesh

You can buy your desired ASUS PRIME B760M-F WIFI Intel LGA1700 mATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
