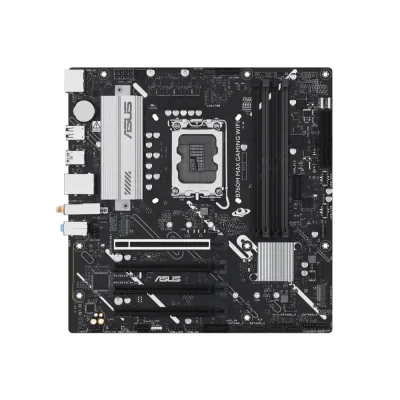

ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard

ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard

Key Features of B760M MAX GAMING WIFI:

Chipset: Intel B760 Chipset for Intel Core14th, 13th & 12th Gen Processors
Socket: Intel Socket LGA1700
Memory: 4 x DIMM, Max. 192GB, DDR5
Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Warranty: 3-Year Brand Warranty (Condition applied)

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel B760 Chipset for Intel Core14th, 13th & 12th Gen Processors
attr -Key Feature 2 >	Socket: Intel Socket LGA1700
attr -Key Feature 3 >	Memory: 4 x DIMM, Max. 192GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Warranty: 3-Year Brand Warranty (Condition applied)
Motherboard
Model	B760M MAX GAMING WIFI
CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel B760 Chipset
Memory	4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics	1 x DisplayPort 1 x HDMI port* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slot (support x1 mode) Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 1Gb Ethernet
Wireless & Bluetooth	Wi-Fi 6v Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3 *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C) 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C) 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Aura Addressable Gen 2 headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool AURA Sync - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 2 x Screw packages for M.2 SSD
Operating System	Windows 11, Windows 10 64-bit
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty	3-Year Brand Warranty (Condition applied)

Description:

ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard

ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard is designed to deliver strong performance, reliable stability, and advanced connectivity for modern gaming and productivity setups. Built on the Intel B760 chipset, it supports 14th, 13th, and 12th Gen Intel Core processors through the LGA1700 socket, ensuring compatibility with the latest CPUs. This motherboard is ready for advanced AI PC computing, offering the power and speed needed for demanding AI applications and multitasking workloads. The ASUS B760M MAX GAMING WIFI features PCIe 5.0 and DDR5 memory support for faster data transfer and improved system performance. With three M.2 slots, SATA 6 Gbps ports, and Realtek 1Gb Ethernet, it ensures quick and stable connectivity for both storage and network performance. Built-in Wi-Fi 6, rear USB 10Gbps, and front USB 5Gbps Type-C provide versatile and high-speed connection options.

For cooling, it includes a VRM heatsink, PCH heatsink, hybrid fan headers, and ASUS Fan Xpert 2+ software. The fan control system allows users to fine-tune cooling performance for air or liquid cooling setups. Auto-Tuning and Extreme Quiet modes make it simple to balance performance and silence during light workloads. ASUS OptiMem II technology ensures improved memory overclocking and signal integrity, while Aura Sync RGB lighting allows users to customize and sync lighting effects with other compatible devices. The motherboard also includes premium audio features such as audio shielding, dedicated left and right audio PCB layers, and high-quality capacitors for clear, natural, and balanced sound output.

Built to handle the high power and bandwidth demands of Intel’s latest processors, the ASUS B760M MAX GAMING WIFI ensures smooth, efficient, and stable operation for gaming, AI work, and content creation. With CEC Tier II readiness and a 3-year brand warranty, it provides long-term reliability and performance that users can depend on.

Buy ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard in Bangladesh

You can buy your desired ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard at Global Brand PLC. We are the authorized distributor of ASUS in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
