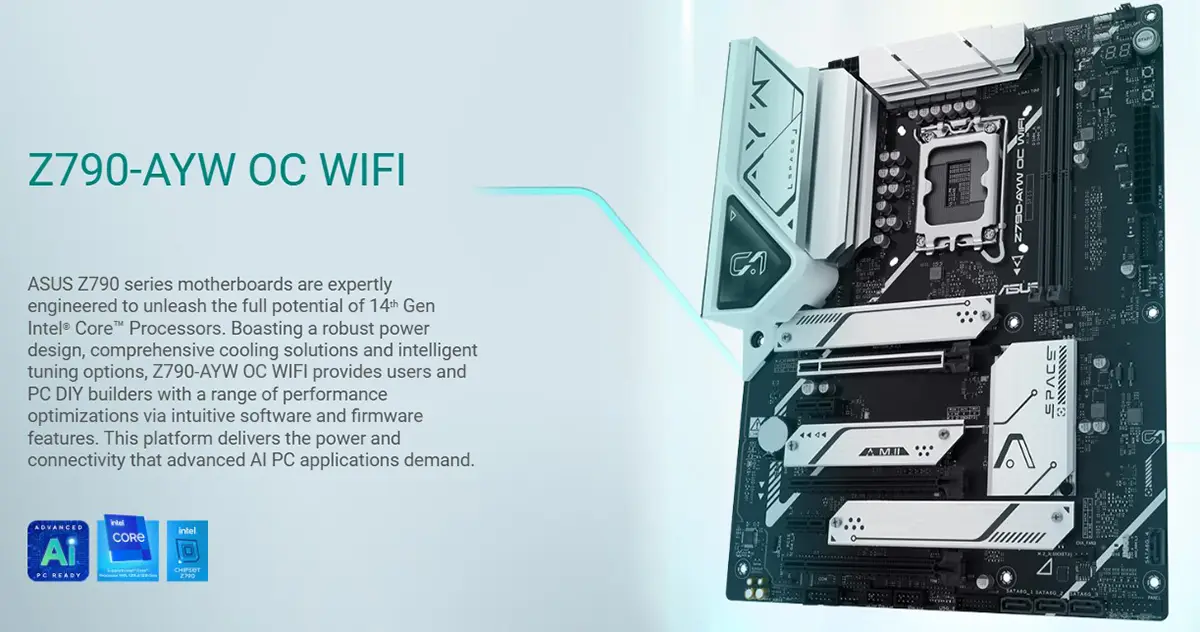

ASUS Z790-AYW OC WIFI Intel LGA1700 ATX Motherboard

ASUS Z790-AYW OC WIFI Intel LGA1700 ATX Motherboard

Key Features of Z790-AYW OC WIFI:

Chipset: Intel Z790 Chipset for 14th Gen, 13th Gen, 12th Gen, Pentium Gold & Celeron Processors
Socket: Intel Socket LGA1700
Memory: 2 x DIMM slots, Max. 96GB, DDR5 8200+
Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, WiFi 6, AEMP II, M.2 Heatsinks, Aura Sync, Al Noise Cancelation, Al Cooling II

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel Z790 Chipset for 14th Gen, 13th Gen, 12th Gen, Pentium Gold & Celeron Processors
attr -Key Feature 2 >	Socket: Intel Socket LGA1700
attr -Key Feature 3 >	Memory: 2 x DIMM slots, Max. 96GB, DDR5 8200+
attr -Key Feature 4 >	Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, WiFi 6, AEMP II, M.2 Heatsinks, Aura Sync, Al Noise Cancelation, Al Cooling II
Motherboard
Model	Z790-AYW OC WIFI
CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel Z790 Chipset
Memory	2 x DIMM slots, Max. 96GB, DDR5 8200+ (OC)/8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual-channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports the On-Die ECC function.
Graphics	1 x HDMI port** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. * Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	Intel Core Processors (14th & 13th & 12th Gen)* 1 x PCIe 4.0 x16 slot Intel Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 2 x PCIe 4.0 x1 slots * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* * The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)* Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports* * USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth. * USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 10Gbps ports (1 x Type-A+1 x Type-C) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x Clear CMOS button 1 x Reset button 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt (USB4) Header
Special Features	Extreme OC Kit - Start button ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-Code ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) MyASUS UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x M.2 rubber packages 2 x Screw packages for M.2 SSD Documentation 1 x Quick start guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS Z790-AYW OC WIFI Intel LGA1700 ATX Motherboard

ASUS Z790-AYW OC WIFI Intel LGA1700 ATX Motherboard is designed to deliver users with strong performance, flexible connectivity, and long-lasting operation. Built to support Intel Core 14th, 13th, and 12th Gen CPUs, Pentium Gold, and Celeron CPUs, the motherboard offers reliable power and efficient cooling for games, content creation, and general use. It has 12+1+1 power phases (60A each) with bigger VRM heatsinks to deliver silky smooth power supply under heavy load. It supports DDR5 memory up to 8200+(OC) and ASUS AEMP II technology to let users enjoy fast and stable memory performance. The three M.2 slots (PCIe 4.0 x4 & SATA) come with dedicated heatinks to avoid overheating when high transfer speed is used.

For connectivity, it has 2.5Gb Ethernet, WiFi 6, and rear and front USB Type-C connections, which make it ready for high-speed network and data performance. ASUS Intelligent Control and AI Cooling II will configure system performance, fan speed, and power consumption for greater efficiency and lower noise. The ProCool 4+8 pin connectors provide a solid connection of the power supply and CPU, while multiple hybrid fan headers guarantee system stability and coolness even during ongoing heavy load usage.

For audio quality, the Z790-AYW OC WIFI produces superior sound with audio shielding, isolated PCB layers for left and right channels, and top-notch audio capacitors to output clear and balanced sound. With RGB illumination that is fully adjustable, high-quality components, and easy setup options, the ASUS Z790-AYW OC WIFI is ideal for PC builders who desire dependable performance, smart controls, and modern connections on a single powerful ATX board.
