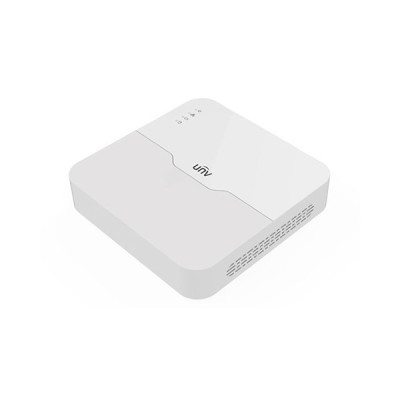

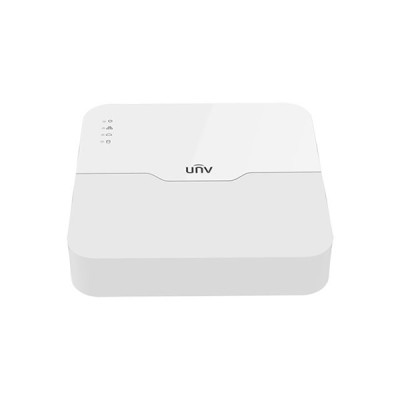

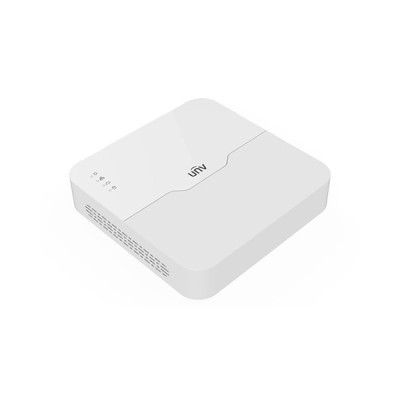

Uniview NVR301-04LS2 4 Channel 1 SATA NVR
Uniview NVR301-04LS2 4 Channel 1 SATA NVR
Uniview NVR301-04LS2 4 Channel 1 SATA NVR

Uniview NVR301-04LS2 4 Channel 1 SATA NVR

Key Features of NVR301-04LS2:
Channel: 4-Channel
Storage: Up to 6TB for each disk
Output Port: HDMI & VGA
Input Port: 1x RJ45, 2x USB2.0
Outgoing Bandwidth: 40Mbps

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Uniview NVR301-04LS2 4 Channel 1 SATA NVR
৳0.00
Specification:
Key Features
attr - Key Feature 1 > Channel: 4-Channel
attr -Key Feature 2 > Storage: Up to 6TB for each disk
attr -Key Feature 3 > Output Port: HDMI & VGA
attr -Key Feature 4 > Input Port: 1x RJ45, 2x USB2.0
attr -Key Feature 5 > Outgoing Bandwidth: 40Mbps
Call Info >

CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

General
Brand Uniview
Model NVR301-04LS2
Type 4 Channel 1 SATA NVR
Hard Disk
SATA 1 SATA interface
Capacity Up to 6TB for each disk
Video/Audio Input
IP Video Input 4-ch
Video/Audio Output
VGA Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, 3.5mm
Audio Compression G.711A, G.711U
Synchronous Playback 4-ch
Corridor Mode Screen 3/4
Snapshot
FTP/Schedule/Event Snapshot 1-ch snapshot, up to D1 resolution
Decoding
Capability 1 x 6MP@20, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, 4 x 1080p@30,
Decoding format Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Network
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Remote Users 128
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
VCA Search Face Search, Behavior Search
Extras Smart Intrusion Prevention (SIP), UMD by Camera

Total 4-ch
External Interface
Network Interface 1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
RS232 N/A
RS485 N/A
Alarm In N/A
Alarm Out N/A
Power
Power 12V DC
Power Consumption: ≤5 W (without HDD)
Operating Environment
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Physical Specification
Dimensions 260mm × 240mm × 46mm (10.2"×9.4"×1.8 ")
Weight ≤0.98kg (2.16 lb)
Additional
Certification Certification: CE, FCC, UL, RoHS, WEEE
CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC: Part15 Subpart B, ANSI C63.4
Warranty
Warranty Details 1-Year Brand Warranty
Description:

Uniview NVR301-04LS2 4 Channel 1 SATA NVR

Uniview NVR301-04LS2 is a reliable 4-channel NVR system designed for straightforward and efficient video surveillance. A single SATA interface supporting up to 6TB for each disk provides ample storage capacity for extensive video recordings. The NVR accommodates 4-channel IP video input, ensuring comprehensive coverage for your security needs. Display options include VGA and HDMI outputs with resolutions such as 1920x1080/60Hz, offering clear and detailed visuals. The recording resolution options range from 6MP to CIF, catering to various recording needs. The NVR supports different audio outputs via a 3.5mm interface, adding a layer of functionality.

The NVR301-04LS2 can handle different camera configurations, supporting up to 1 x 6MP@20, 1 x 5MP@30, 2 x 4MP@30, 2 x 3MP@30, or 4 x 1080p@30. It ensures a steady incoming and outgoing bandwidth of 40Mbps each, supporting smooth data transmission. The system has general alarms such as motion detection, tampering, human body detection, video loss, and alarm input. Additionally, it alerts for events like IP conflict, network disconnection, disk offline, disk abnormality, illegal access, low hard disk space, full hard disk, and abnormal recording/snapshot. With a convenient network interface, USB ports, and a 1-year brand warranty, the Uniview NVR301-04LS2 offers a dependable and user-friendly solution for your video surveillance requirements.
