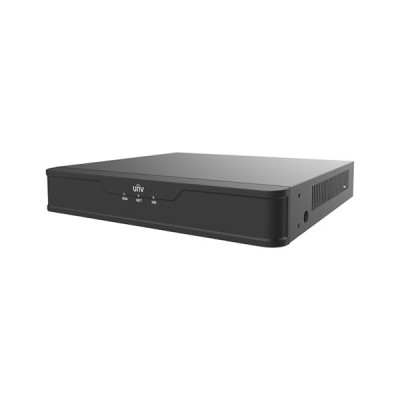

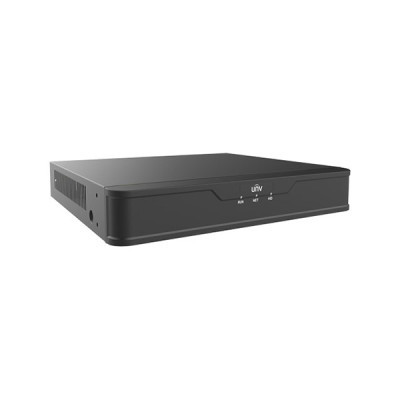

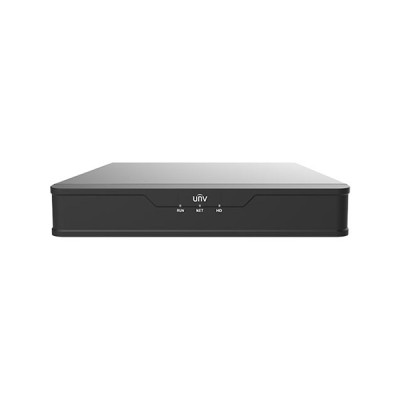

image of Uniview NVR301-04X-P4 4 Channel 1 SATA NVR with Spec and Price in BDT

Uniview NVR301-04X-P4 4 Channel 1 SATA NVR

Uniview NVR301-04X-P4 4 Channel 1 SATA NVR

Key Features of NVR301-04X-P4:

Channel: 4-Channel
Storage: Up to 8TB for each disk
Output Port: HDMI & VGA
Input Port: 1x RJ45, 2x USB
Outgoing Bandwidth: 64Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Channel: 4-Channel
attr -Key Feature 2 >	Storage: Up to 8TB for each disk
attr -Key Feature 3 >	Output Port: HDMI & VGA
attr -Key Feature 4 >	Input Port: 1x RJ45, 2x USB
attr -Key Feature 5 >	Outgoing Bandwidth: 64Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	NVR301-04X-P4
Type	4 Channel 1 SATA NVR
Hard Disk
SATA	1 SATA interface
Capacity	Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Video/Audio Input
IP Video Input	4-ch
Two-way Audio Input	1-ch, RCA
Video/Audio Output
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz]
HDMI Output	3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Audio Compression	G.711A, G.711U
Synchronous Playback	4-ch
Corridor Mode Screen	3/4
Snapshot
FTP/Schedule/Event Snapshot	4-ch snapshot, up to D1 resolution
Decoding
Capability	2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	8MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	64Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD)
VCA Search	Behavior Search
People Counting	People Flow Counting, Crowd Density Monitoring
Extras	Smart Intrusion Prevention (SIP), UMD by Camera Total 4-ch
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 1 x USB2.0,1 x USB3.0
RS232	N/A
RS485	N/A
Alarm In	N/A
Alarm Out	N/A
PoE
Interface	4 RJ45 10M/100M self-adaptive Ethernet Interface
Max Power	Max 30W for single port Max 54W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af
Power
Power	48V DC Power Consumption: ≤9 W (without HDD)
Operating Environment
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Physical Specification
Dimensions	260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
Weight	≤1kg (2.20 lb)
Additional
Certification	Certification: CE, FCC, UL, RoHS, WEEE CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 FCC: Part15 Subpart B, ANSI C63.4
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview NVR301-04X-P4 4 Channel 1 SATA NVR

Uniview NVR301-04X-P4 is a reliable 4-channel NVR system designed for efficient video surveillance. A single SATA interface supporting up to 8TB for each disk ensures substantial storage capacity for extensive video recordings. The NVR provides clear and detailed visuals with VGA and HDMI outputs at resolutions like 1920x1080p/60Hz and 3840x2160/30Hz. It can handle various camera configurations and supports recording resolutions ranging from 4K to CIF. The NVR301-04X-P4 is equipped with general alarms, including motion detection, tampering, human body detection, video loss, alarm input, and audio detection, enhancing security monitoring capabilities. The alert alarm system notifies users about events such as IP conflict, network disconnection, disk offline, disk abnormality, illegal access, low hard disk space, full hard disk, and abnormal recording/snapshots.

It facilitates smooth data transmission with an incoming bandwidth of 80Mbps and an outgoing bandwidth of 64Mbps. Supporting up to 128 remote users, this NVR offers flexibility in access. Backed by a 1-year brand warranty, the Uniview NVR301-04X-P4 provides a dependable and user-friendly solution for your video surveillance requirements.
