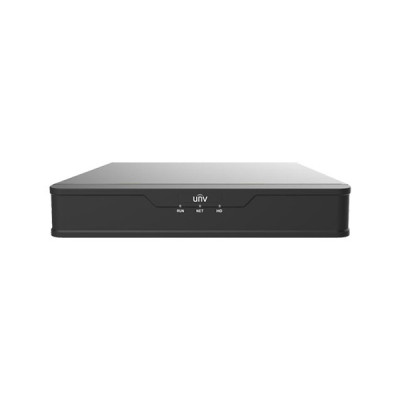

Uniview NVR301-16S3 16 Channel 1 SATA NVR

Key Features of NVR301-16S3:

Channel: 16-Channel
Storage: Up to 8TB for each disk
Output Port: HDMI & VGA
Input Port: 1x RJ45, 2x USB2.0
Outgoing Bandwidth: 48Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

৳0.00

Specification:

Key Features
attr - Key Feature 1 >	Channel: 16-Channel
attr -Key Feature 2 >	Storage: Up to 8TB for each disk
attr -Key Feature 3 >	Output Port: HDMI & VGA
attr -Key Feature 4 >	Input Port: 1x RJ45, 2x USB2.0
attr -Key Feature 5 >	Outgoing Bandwidth: 48Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	NVR301-04S3
Type	4 Channel 1 SATA NVR
Hard Disk
SATA	1 SATA interface
Capacity	Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)
Video/Audio Input
IP Video Input	16-ch
Video/Audio Output
VGA Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, 3.5mm
Audio Compression	G.711A, G.711U
Live view display	1/4/6/8/9/16
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16
Snapshot
FTP/Schedule/Event Snapshot	1-ch snapshot, up to D1 resolution
Decoding
Capability	1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, 16 x D1@25
Decoding format	Ultra 265/H.265/H.264
Liveview/Playback	4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Incoming Bandwidth	64Mbps
Outgoing Bandwidth	48Mbps
Remote Users	128
General Alarm
General Alarm	Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
VCA Search	Face Search, Behavior Search
Extras	Smart Intrusion Prevention (SIP), UMD by Camera Total 4-ch
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
RS232	N/A
RS485	N/A
Alarm In	N/A
Alarm Out	N/A
Power
Power	12V DC Power Consumption: ≤5 W (without HDD)
Operating Environment
Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Physical Specification
Dimensions	260mm × 240mm × 46mm (10.2"×9.4"×1.8 ")
Weight	≤0.98kg (2.16 lb)
Additional
Certification	Certification: CE, FCC, UL, RoHS, WEEE CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 FCC: Part15 Subpart B, ANSI C63.4
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview NVR301-16S3 16 Channel 1 SATA NVR

Uniview NVR301-16S3 is a reliable 16-channel NVR system, that offers practical and efficient video surveillance solutions without unnecessary complexity. A single SATA interface supporting up to 8TB for each disk ensures substantial storage capacity for extensive video recordings. This NVR accommodates 16-channel capabilities, supporting diverse camera configurations, such as 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30, and 16 x D1@25. Display options include VGA and HDMI outputs with resolutions like 1920x1080/60Hz and 3840x2160/30Hz, delivering clear and detailed visuals. The recording resolution options range from 4K to CIF, catering to various recording needs. It ensures a robust incoming bandwidth of 64Mbps and outgoing bandwidth of 48Mbps, facilitating smooth data transmission.

Equipped with general alarms, including motion detection, tampering, human body detection, video loss, and alarm input, it enhances security monitoring. The alert alarm system notifies users about events such as IP conflict, network disconnection, disk offline, disk abnormality, illegal access, low hard disk space, full hard disk, and abnormal recording/snapshot. Featuring a network interface, USB ports, and a 1-year brand warranty, the Uniview NVR301-16S3 offers a dependable and user-friendly solution for your video surveillance requirements.

What is the Uniview NVR301-16S3 16 Channel 1 SATA NVR price in Bangladesh?

Uniview NVR301-16S3 16 Channel 1 SATA NVR price in Bangladesh is BDT to be decided. At Global Brand Pvt Ltd, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. .

Where to buy Uniview NVR301-16S3 16 Channel 1 SATA NVR in Bangladesh?

You can buy Uniview NVR301-16S3 16 Channel 1 SATA NVR from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.

By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of Uniview NVR301-16S3 16 Channel 1 SATA NVR in BDT as well you can buy online NVR301-16S3 with best price. The Uniview NVR301-16S3 16 Channel 1 SATA NVR is available in Bangladesh for the following price: to be decided.Take advantage of our free delivery and don't miss out on the opportunity to buy NVR301-16S3 online at the best price in Bangladesh!
