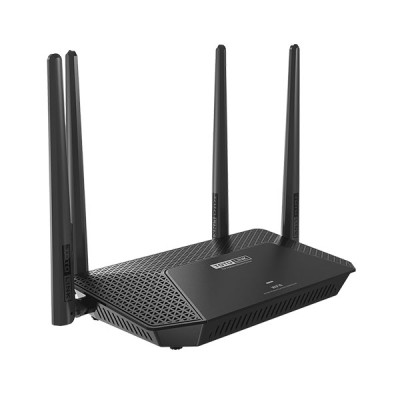

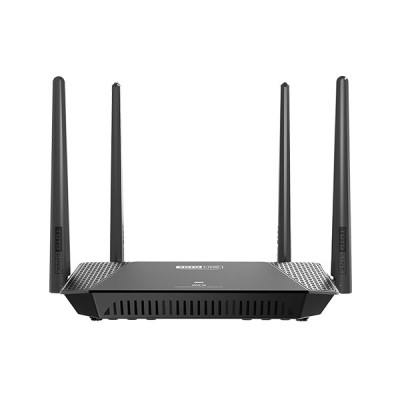

TOTOLINK X2000R AX1500 Wireless Dual Band Gigabit Router
TOTOLINK X2000R AX1500 Wireless Dual Band Gigabit Router
TOTOLINK X2000R AX1500 Wireless Dual Band Gigabit Router
Out Of Stock
TOTOLINK X2000R AX1500 Wireless Dual Band Gigabit Router
TOTOLINK X2000R AX1500 Wireless Dual Band Gigabit Router
TOTOLINK X2000R AX1500 Wireless Dual Band Gigabit Router
TOTOLINK X2000R AX1500 Wireless Dual Band Gigabit Router

TOTOLINK X2000R AX1500 Wireless Dual Band Gigabit Router

Key Features:

Key Features
attr - Key Feature 1 > Antenna: 2 * 2.4GHz fixed antennas(5dBi), 2 * 5GHz fixed antennas(5dBi)
attr -Key Feature 2 > Band: 2.4 GHz , 5 GHz
attr -Key Feature 3 > Speed: 300Mbps+1201Mbps
attr -Key Feature 4 > Feature:
Totolink Router

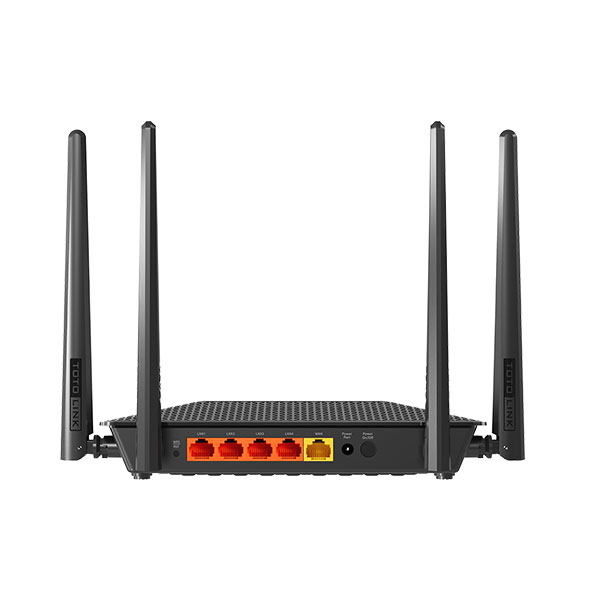

Interface 4 * 10/100/1000Mbps LAN Ports
1 * 10/100/1000Mbps WAN Port
Power Supply 12V DC/1A
Antenna 2 * 2.4GHz fixed antennas(5dBi)
2 * 5GHz fixed antennas(5dBi)
LED Indicators 1 *SYS, 1 *WAN, 4 *LAN
Dimensions (L x W x H) 206 x 121 x 41mm
Wireless
Standards IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,
IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
RF Frequency 2.4GHz/5GHz
Data Rate 2.4GHz: Up to 300Mbps
5GHz: Up to 1201Mbps
EIRP 2.4GHz < 20dBm
5GHz < 20dBm
Wireless Security 64/128-bit WEP, WPA, WPA2 and WPA-Mixed
WPA3
Reception Sensitivity - 2.4G:
11b 11M:[email protected]% PER
11g 54M:[email protected]% PER
11n HT20 MCS7:[email protected]% PER
HT40 MCS7:[email protected]% PER

- 5G:
11a 54M:[email protected]% PER
11n HT20 MCS7:[email protected]% PER
HT40 MCS7:[email protected]% PER
11ac VHT80 MCS9:[email protected]% PER
11ax HE80 MCS11:[email protected]% PER
Software
Basic WAN
Wireless
LAN
System Information
Network WAN Setting
LAN Setting
IPTV Setting
DHCP&ARP Tables
Static Route
Routing Table
Wireless Basic Settings
Guest network
Advanced Settings
Access Control
Wireless Schedule
Security IP/Port Filtering
MAC Filtering
URL Filtering
NAT Virtual Server(Port Forwarding) - DMZ
VPN Passthrough
Operation Mode Gateway Mode
Repeater Mode
AP Mode
WISP Mode
Other Function Upgrade Firmware
Save/Reload Settings
Time Zone Settings
DDNS
Denial-of-Service
TR-069 Config
Password Settings
Reboot Schedule
System Log
Statistics
Run Command
Logout
Others
Package Contents X2000R Wireless Router * 1
Power Adapter * 1
Ethernet Cable * 1
Quick Installation Guide * 1
Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty 1 Year
Totolink Router
WAN Type Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
QoS Up/Down speed control on WAN,
Bandwidth control based on IP address
৳0

Specification:

Key Features
attr - Key Feature 1 > Antenna: 2 * 2.4GHz fixed antennas(5dBi), 2 * 5GHz fixed antennas(5dBi)
attr -Key Feature 2 > Band: 2.4 GHz , 5 GHz
attr -Key Feature 3 > Speed: 300Mbps+1201Mbps
attr -Key Feature 4 > Feature:
Totolink Router
Interface 4 * 10/100/1000Mbps LAN Ports
1 * 10/100/1000Mbps WAN Port
Power Supply 12V DC/1A
Antenna 2 * 2.4GHz fixed antennas(5dBi)
2 * 5GHz fixed antennas(5dBi)
LED Indicators 1 *SYS, 1 *WAN, 4 *LAN
Dimensions (L x W x H) 206 x 121 x 41mm
Wireless
Standards IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n,
IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
RF Frequency 2.4GHz/5GHz
Data Rate 2.4GHz: Up to 300Mbps
5GHz: Up to 1201Mbps
EIRP 2.4GHz < 20dBm
5GHz < 20dBm
Wireless Security 64/128-bit WEP, WPA, WPA2 and WPA-Mixed
WPA3
Reception Sensitivity - 2.4G:
11b 11M:[email protected]% PER
11g 54M:[email protected]% PER
11n HT20 MCS7:[email protected]% PER
HT40 MCS7:[email protected]% PER

- 5G:
11a 54M:[email protected]% PER
11n HT20 MCS7:[email protected]% PER
HT40 MCS7:[email protected]% PER
11ac VHT80 MCS9:[email protected]% PER
11ax HE80 MCS11:[email protected]% PER
Software
Basic WAN
Wireless
LAN
System Information
Network WAN Setting
LAN Setting
IPTV Setting
DHCP&ARP Tables
Static Route
Routing Table
Wireless Basic Settings
Guest network
Advanced Settings
Access Control
Wireless Schedule
Security IP/Port Filtering
MAC Filtering
URL Filtering
NAT Virtual Server(Port Forwarding) - DMZ
VPN Passthrough
Operation Mode Gateway Mode
Repeater Mode
AP Mode
WISP Mode
Other Function Upgrade Firmware
Save/Reload Settings
Time Zone Settings
DDNS
Denial-of-Service
TR-069 Config
Password Settings
Reboot Schedule
System Log
Statistics
Run Command
Logout
Others
Package Contents X2000R Wireless Router * 1
Power Adapter * 1
Ethernet Cable * 1
Quick Installation Guide * 1
Environment Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty 1 Year
Totolink Router
WAN Type Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
QoS Up/Down speed control on WAN,
Bandwidth control based on IP address
