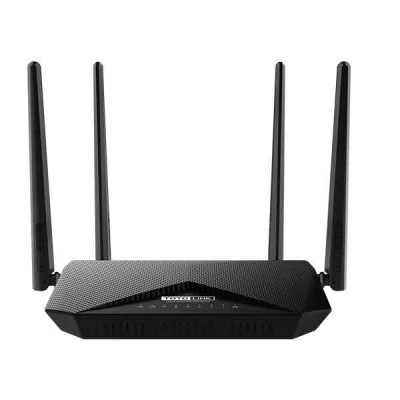

TOTOLINK A3002RU-V2 Dual Band AC Gigabit Wi-Fi Router
TOTOLINK A3002RU-V2 Dual Band AC Gigabit Wi-Fi Router

TOTOLINK A3002RU-V2 Dual Band AC Gigabit Wi-Fi Router

Key Features:

Key Features
attr - Key Feature 1 > Antenna: 4 x 5dBi
attr -Key Feature 2 > Band: 2.4GHz & 5GHz
attr -Key Feature 3 > Speed: 1200 Mbps
attr -Key Feature 4 > Feature: 3,000 sqft Coverage, 40 Users
Totolink Router
IPv6 Protocol – DHCP/Static IP/PPPoE
Interface – 4 *1000Mbps LAN Adaptive Ports
– 1 *1000Mbps WAN Adaptive Port
– USB 2.0 Port
Operation Mode – Gateway Mode
– Repeater Mode
– AP Mode
– WISP Mode
Status – WAN
– Wireless
– LAN
– System Information
USB functional – DLNA
– Samba
– FTP
WAN Type – Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP
Wireless – Basic Settings
– Multiple SSID1
– Multiple SSID2
– Multiple SSID3
– Multiple SSID4
– Advanced Settings
– Access Control
– WDS Settings
– WPS Settings
– Wireless Schedule
– Band Steering
Power Supply – DC 12V/1A
Button – 1 *RST/WPS Button,
– 1* Power On/Off Button
LED Indicator – 1 *SYS
– 1 *2.4G
– 1 *5G
– 1 *WAN
– 4 *LAN
– 1 *USB
Antenna – 2 * 2.4GHz fixed antennas(5dBi)
– 2 * 5GHz fixed antennas(5dBi)
Dimensions (L x W x H) – 210 x 120 x 40mm (not including antennas)
Wireless Standards – IEEE 802.11ac,
– IEEE 802.11n,
– IEEE 802.11g,
– IEEE 802.11b,
– IEEE 802.11a
RF Frequency – 2.4GHz/5GHz
Data Rate – 2.4GHz: Up to 300Mbps
– 5GHz: Up to 867Mbps
EIRP – 2.4GHz < 20dBm
– 5GHz < 20dBm
Wireless Security – 64/128-bit WEP, WPA and WPA2
Reception Sensitivity – 2.4G:11b 11M:[email protected]% PER
11g 54M:[email protected]% PER
11n HT20 MCS7:[email protected]% PER
HT40 MCS7:[email protected]% PER
– 5G: 11a 54M:[email protected]% PER
11n HT20 MCS7:[email protected]% PER
HT40 MCS7:[email protected]% PER
11ac VHT80 MCS9:[email protected]% PER
Network – WAN Setting
– LAN Setting
– IPTV Setting
– DHCP&ARP Tables
– Static Router
– Routing Table
QoS – Up/Down speed control on WAN, Bandwidth control based on IP address
Firewall – MAC Filtering
– IP/Port Filtering
– Virtual Server(Port Forwarding)
– URL Filtering
– DMZ
System – Upgrade Firmware
– Save/Reload Settings
– Time Zone Settings
– DDNS
– Denial-of-Service
– TR-069 Config
– Password Settings
– Reboot Schedule
– System Log
– Statistics
– Run Command
– Logout
Environment – Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
– Operating Humidity: 10%~90% non-condensing
– Storage Humidity: 5%~90% non-condensing
Package Contents – A3002RU_V2 Wireless Router *1
– Power Adapter *1
– Ethernet Cable *1
– Quick Installation Guide *1
Warranty Information
Warranty 1 Year Brand Warranty.
৳3,600
