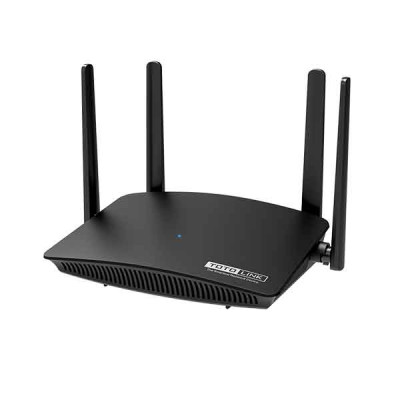

TOTOLINK A720R Dual Band AC Wi-Fi Router
TOTOLINK A720R Dual Band AC Wi-Fi Router
Key Features:
| Key Features | |
| attr - Key Feature 1 > | Antenna: 4 x 5dBi |
| attr -Key Feature 2 > | Band: 2.4GHz & 5GHz |
| attr -Key Feature 3 > | Speed: 1200 Mbps |
| attr -Key Feature 4 > | Feature: 2,000 sqft Coverage, 25 Users |
| Totolink Router | |
| Device management | – Static Route – Routing Table – IP/MAC Binding |
| Home | – Quick Setup
– Basic setup
– Advanced setup – QR Code – LED – Logout – Reboot |
| Interface | – 2 *100Mbps LAN Ports – 1 *100Mbps WAN Port |
| NAT | – Virtual Server(Port Forwarding) – DMZ – VPN passthrough |
| Operation Mode | – Gateway Mode – Repeater Mode – AP Mode – WISP Mode |
| Parental Control | – Internet time control based on MAC |
| Security | – MAC Filtering – IP/Port Filtering – URL Filtering |
| Tools | – Upgrade Firmware – Time Setup – Remote management – Password Settings – Reboot Schedule – System Log and so on |
| WAN Type | – Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP |
| Wireless | – Basic setup – Guest Network(Multiple SSID) – Wireless Schedule – Access Control – Advanced setup |
| Power Supply | – DC 9V/0.8A |
| Button | – 1 *RST/WPS Button |
| LED Indicator | – 1 *SYS |
| Antenna | – 2 * 2.4GHz fixed antennas(5dBi) – 2 * 5GHz fixed antennas(5dBi) |
| Dimensions (L x W x H) | – 142X95 X41mm |
| Wireless Standards | – IEEE 802.11ac, – IEEE 802.11a, – IEEE 802.11b, – IEEE 802.11g, – IEEE 802.11n |
| RF Frequency | – 2.4GHz/5GHz |
| Data Rate | – 2.4GHz: Up to 300Mbps – 5GHz: Up to 867Mbps |
| EIRP | – 2.4GHz < 20dBm – 5GHz < 20dBm |
| Wireless Security | – WPA/WPA2 Mixed |
| Reception Sensitivity | – 2.4G:11b 11M：[email protected]% PER 11g 54M：[email protected]% PER 11n HT20 MCS7：[email protected]% PER HT40 MCS7：[email protected]% PER – 5G: 11a 54M：[email protected]% PER 11n HT20 MCS7：[email protected]% PER HT40 MCS7：[email protected]% PER 11ac VHT80 MCS9：[email protected]% PER |
| Network | – WAN Setting – LAN Setting – DDNS Setting – IPTV Setting – IPv6 Setting |
| QoS | – Up/Down speed control on WAN, – Bandwidth control based on IP address |
| Environment | – Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) – Operating Humidity: 10%~90% non-condensing – Storage Humidity: 5%~90% non-condensing |
| Package Contents | – A720R Wireless Router *1 – Power Adapter *1 – Ethernet Cable *1 – Quick Installation Guide *1 |
৳2,400
