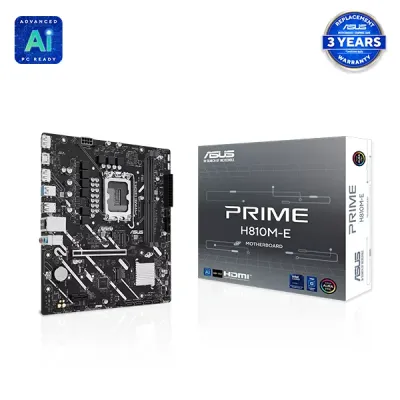

image of ASUS PRIME H810M-E Intel LGA1851 mATX Motherboard with Spec and Price in BDT

Upcoming

ASUS PRIME H810M-E Intel LGA1851 mATX Motherboard

ASUS PRIME H810M-E Intel LGA1851 mATX Motherboard

Key Features of PRIME H810M-E:

Chipset: Intel H810 Chipset for Intel Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Storage Supports: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Memory: 2 x DIMM slots, max. 128GB, DDR5
Features: Onboard Heatsinks, PCIe 5.0, ASUS Fan Xpert 2+, Aura Sync RGB Lighting, Armoury Crate

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel H810 Chipset for Intel Core Ultra Processors (Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Storage Supports: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 4 >	Memory: 2 x DIMM slots, max. 128GB, DDR5
attr -Key Feature 5 >	Features: Onboard Heatsinks, PCIe 5.0, ASUS Fan Xpert 2+, Aura Sync RGB Lighting, Armoury Crate
Motherboard
Model	PRIME H810M-E
CPU	Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H810 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual-channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	2 x DisplayPort 1 x HDMI port* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Ethernet	1 x Realtek 1Gb Ethernet port ASUS LANGuard
USB	Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port and USB_E3 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Dual DIMM clips Aura Sync - Addressable RGB Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS DriverHub - ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey DIMM FIT Pro * For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor	micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS PRIME H810M-E Intel LGA1851 mATX Motherboard

The ASUS PRIME H810M-E Intel LGA1851 mATX Motherboard is designed for users who require stable performance, easy setup, and support for the latest Intel Core Ultra Processors (Series 2). It features a 6+1+1+1 phase digital power design along with Digi+ VRM control that will stabilise the power delivery for daily tasks and heavy loads. This motherboard features DDR5 memory with DIMM Fit and DIMM Fit Pro, which work together to allow users to fine-tune their memory settings and enhance speeds. Due to the twin PCIe 4.0 M.2 slots, you enjoy fast storage options right up to 64Gbps, meaning faster boot times and reduced loading times. A PCIe 4.0 x16 slot with SafeSlot Core+ provides robust graphics card support, while a PCIe 4.0 x1 slot improves expansion flexibility.

Cooling is provided by a passive chipset heatsink, multiple fan headers, and ASUS Fan Xpert 2+ software, which allows for auto-tuning and quiet fan profiles to provide even better temperature control. This keeps the system stable even during heavy use. Other niceties for connectivity include Realtek 1Gb Ethernet, USB 5Gbps Type-A, and a front USB 5Gbps Type-C connector for fast data transfers, all of which could support various devices and peripherals serving different purposes, whether for work, gaming, or school projects.

Customisation features include UEFI BIOS for simple or advanced system settings, ASUS DriverHub for easy driver updates, and Armoury Crate for RGB lighting control. Aura Sync and three Addressable RGB Gen 2 headers allow lighting effects that match compatible components. EZ PC DIY tools, Q-LED Core for quick troubleshooting, and SafeSlot Core+ will make the build process much easier for DIY users. Equipped with strong power support, modern storage options, and lots of helpful software tools, the ASUS PRIME H810M-E gives users a solid and dependable foundation for an everyday or advanced PC setup.

Buy ASUS PRIME H810M-E Intel LGA1851 mATX Motherboard in Bangladesh

You can buy your desired ASUS PRIME H810M-E Intel LGA1851 mATX Motherboard at Global Brand PLC. We are the authorised distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
