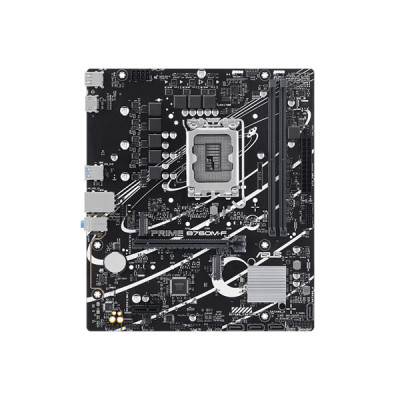

ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard

ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard

Key Features of PRIME B760M-F:

Chipset: Intel B760 Chipset for Intel Core14th & 13th Gen
Socket: Intel Socket LGA1700
Memory: 2 x DIMM slots, Max. 96GB, DDR5
Ready for Advanced AI PC
Aura Sync RGB Lighting

৳0.00

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel B760 Chipset for Intel Core14th & 13th Gen
attr -Key Feature 2 >	Socket: Intel Socket LGA1700
attr -Key Feature 3 >	Memory: 2 x DIMM slots, Max. 96GB, DDR5
attr -Key Feature 4 >	Ready for Advanced AI PC
attr -Key Feature 5 >	Aura Sync RGB Lighting
Motherboard
Model	PRIME B760M-F
CPU	Intel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for the CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU type.
Chipset	Intel B760 Chipset
Memory	2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics	1 x HDMI port * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@30Hz as specified in HDMI 1.4.
Expansion Slots	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 1Gb Ethernet
USB	Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)* Front USB (Total 5 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

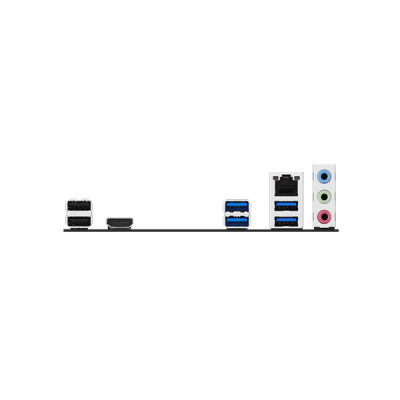

Back Panel I/O Ports	4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front panel audio header (F_AUDIO) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 2 x M.2 anchors Documentation 1 x Quick Start guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard

ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard is designed to unleash the full potential of 14th, 13th, and 12th Gen Intel Core processors. This Intel B760 micro-ATX motherboard supports the LGA 1700 socket, making it ready for advanced AI computing and other demanding applications. It offers ultrafast connectivity with PCIe 4.0, two PCIe 4.0 M.2 slots, Realtek 1Gb Ethernet, and front USB 5Gbps ports. The motherboard features comprehensive cooling solutions, including a PCH heatsink, hybrid fan headers, and Fan Xpert 2+ technology, ensuring your system remains cool and efficient. The ASUS PRIME B760M-F also comes with Aura Sync RGB lighting, allowing for easy customization with onboard Addressable Gen 2 headers that can sync with other Aura Sync-capable hardware.

For clear communication during games or video conferences, this motherboard includes Two-Way AI Noise cancellation, which reduces background noise from both the microphone and audio output. Additionally, the ASUS PRIME B760M-F is backed by a 3-year replacement warranty, providing peace of mind for your build. With its strong performance, reliable connectivity, and efficient cooling, the ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard is an excellent choice for anyone looking to build a powerful and versatile PC.

Buy ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard in Bangladesh

You can buy your desired ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard at Global Brand PVT LTD. We are the authorized distributor of ASUS in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.

What is the ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard price in Bangladesh?

ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard price in Bangladesh is BDT to be decided. At Global Brand Pvt Ltd, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. .

Where to buy authentic ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard in Bangladesh?

You can buy 100% authentic ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.

By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard in BDT as well you can buy online PRIME B760M-F with best price. The ASUS PRIME B760M-F LGA1700 Micro-ATX Motherboard is available in Bangladesh for the following price: to be decided.Take advantage of our free delivery and don't miss out on the opportunity to buy PRIME B760M-F online at the best price in Bangladesh!
