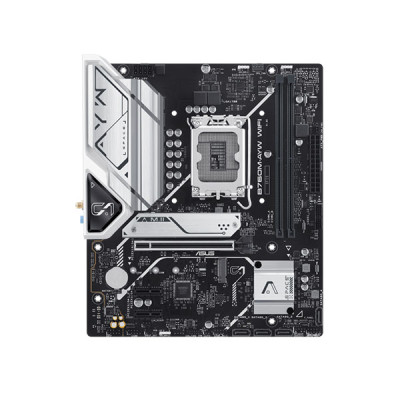

Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard

Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard

Key Features of B760M-AYW WIFI:

Chipset: Intel B760 Chipset for Intel Core 14th & 13th Gen Processors
Socket: Intel Socket LGA1700
Memory: 2 x DIMM slots, Max. 96GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Aura Sync RGB Lighting, Comprehensive Cooling, Ultrafast Connectivity

৳0.00

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel B760 Chipset for Intel Core 14th & 13th Gen Processors
attr -Key Feature 2 >	Socket: Intel Socket LGA1700
attr -Key Feature 3 >	Memory: 2 x DIMM slots, Max. 96GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
attr -Key Feature 5 >	Aura Sync RGB Lighting, Comprehensive Cooling, Ultrafast Connectivity
Motherboard
Model	B760M-AYW WIFI
CPU	Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for the CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU type.
Chipset	Intel B760 Chipset
Memory	2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * Supported memory types, data rate (speed), and several DRAM modules vary depending on the CPU and memory configuration, for more information please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports the On-Die ECC function.
Graphics	1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMITM 2.1.
Expansion Slots	Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots Note: To ensure compatibility with the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Internal I/O Ports	Fan and Cooling-related: 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header ) 1 x 10-1 pin System Panel header
Wireless & Bluetooth	Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 6 ports): 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports): 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

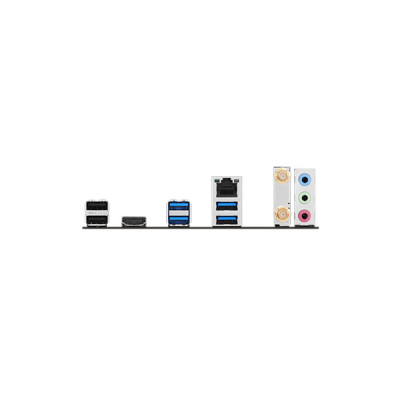

Back Panel I/O Ports	4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMITM port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core + - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - M.2 heatsink - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z MyASUS Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE

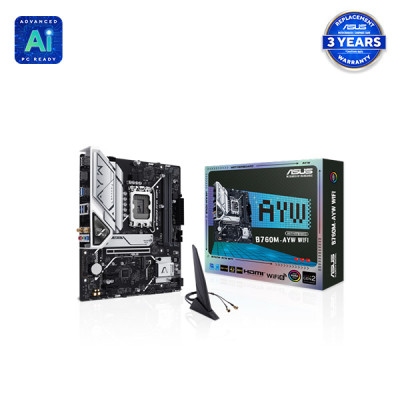

Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x User guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard

Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard comes with complete features for users focused on building a stable system for AI-enabled computing. Designed for the 14th, 13th, and 12th Gen Intel processors, this model is equipped with an Intel B760 chipset, and built-in DDR5 support, which means you can work and create with maximum productivity. Asus has done quite a good job with the B760M-AYW WIFI, especially with its connectivity options. It includes PCIe 4.0 support and two PCIe 4.0 M.2 slots, which means that it can support extremely fast data transfer and a variety of storage configurations. Realtek 2.5Gb Ethernet and WiFi 6 guarantee a fast and stable internet connection, Front USB 3.2 Gen 1 ports give the user an easier interface to high-speed USB devices. The HDMI connectivity guarantees stable video Signal performance and thus offers an easy fixing of multi-display systems.

Cooling is one of the most important functions because it protects the performance, and this motherboard is equipped with a cooling system. The VRM heatsink, M.2 heatsink, and PCH heatsink ensure that heat is adequately removed from critical components, hybrid fan headers, and Fan Xpert 2+ provide great control over the fans, maintaining mixed cool and silent performance. Aura Sync RGB lighting allows for easy customization to fit an individual’s needs or preferences. Two Addressable Gen 2 headers allow you to connect and synchronize RGB LED strips with any other Aura Sync-compatible components for lighting control.

It also includes ASUS Intelligent Control that enables you to manage your PC, as well as optimize and fine-tune it effectively. The Power Saving function aims at lowering energy consumption by utilizing PC-level settings for restricting the CPU power, changing fan operations, and Aura RGB lighting controls. For improved power control functionality, ProCool connectors with solid pins are used, which help deliver stable power output for multi-core processors. Equipped with all these features, the Asus B760M-AYW WIFI motherboard provides an ideal combination of performance, connectivity, and power-saving features to build an AI-optimized future PC.

Buy Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard in Bangladesh

You can buy your desired Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.

What is the Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard price in Bangladesh?

Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard price in Bangladesh is BDT to be decided. At Global Brand Pvt Ltd, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. .

Where to buy authentic Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard in Bangladesh?

You can buy 100% authentic Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.

By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard in BDT as well you can buy online B760M-AYW WIFI with best price. The Asus B760M-AYW WIFI LGA1700 Micro-ATX Motherboard is available in Bangladesh for the following price: to be decided.Take advantage of our free delivery and don't miss out on the opportunity to buy B760M-AYW WIFI online at the best price in Bangladesh!
