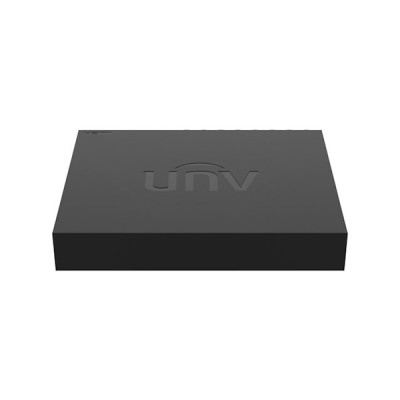

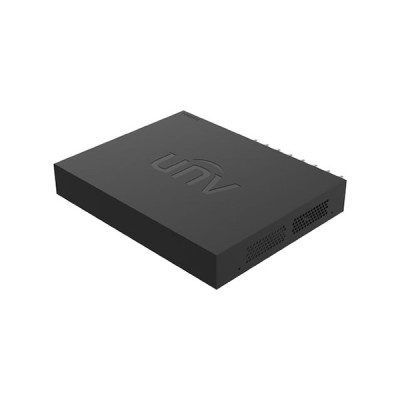

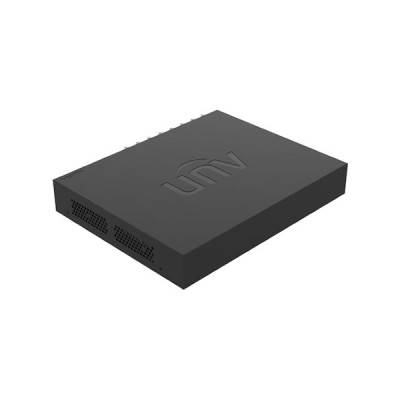

image of Uniview XVR301-16F 16 Channel 1 SATA XVR with Spec and Price in BDT

Uniview XVR301-16F 16 Channel 1 SATA XVR

Uniview XVR301-16F 16 Channel 1 SATA XVR

Key Features of XVR301-16F:

Channel: 16-Channel
Storage: Up to 6TB for each HDD
Output Port: HDMI & VGA
Input Port: 1x RJ45, 2x USB2.0
Outgoing Bandwidth: 64Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Channel: 16-Channel
attr -Key Feature 2 >	Storage: Up to 6TB for each HDD
attr -Key Feature 3 >	Output Port: HDMI & VGA
attr -Key Feature 4 >	Input Port: 1x RJ45, 2x USB2.0
attr -Key Feature 5 >	Outgoing Bandwidth: 64Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	XVR301-16F
Type	16 Channel 1 SATA XVR
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
Video/Audio Input
Analog Video Input	16-ch, BNC
IP Video Input	2-ch (only IP up to 18ch), each channel up to 8MP
Supported Analog Camera Types	Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Compression	G.711U
Video/Audio Output
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Live view display	HDMI/VGA: 1/4/6/8/9/16/25
Synchronous Playback	HD:16-ch SD:16-ch
Snapshot
FTP/Schedule/Event Snapshot	Schedule snapshot is not supported 16-ch snapshot, up to 704*576 resolution
Encoding
Recording Resolution	1080P Lite/720P/D1
Recording Frame Rate	Main stream: 1080P Lite@12fps \| 720P@15fps Sub stream: D1@12fps \| D1@15fps
Audio Sample Rate	8KHz,16 bit per channel
Audio Bit Rate	64Kbps per channel
Decoding
Capability	Analog:16x 1080P Lite@12, 16x 720P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30, 8 x 720P@30,16 x D1@30
Network
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Incoming Bandwidth	24Mbps (Up to 56Mbps after all-analog channel conversion)
Outgoing Bandwidth	64Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm
General Alarm	Motion detection
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Smart Alarm
VCA Detection	Ultra Motion Detection(UMD) for analog:8-ch
VCA Search	Behavior Search
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
Power
Power	12V DC Power Consumption: ≤ 10 W( without HDD )
Operating Environment
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Additional
Certification	UL/CE/FCC /RoHS /WEEE
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview XVR301-16F 16 Channel 1 SATA XVR

Uniview XVR301-16F is a robust 16-channel XVR system designed for efficient and practical surveillance applications. Equipped with a single SATA interface supporting up to 6TB per HDD, it ensures ample storage capacity for extensive video recordings. Featuring 16 analog video inputs through BNC connectors and supporting 2 IP video inputs, each accommodating up to 8MP, this XVR provides comprehensive coverage for security monitoring. Display options include VGA and HDMI outputs with resolutions like 1920x1080p/60Hz, delivering clear and detailed visuals. The recording resolution options include 1080P Lite, 720P, and D1, maintaining optimal video quality with frame rates such as 1080P Lite at 12fps and 720P at 15fps for the main stream. The substream operates at D1 with frame rates of 12fps and 15fps.

Audio features include an 8KHz sample rate and 16-bit per channel, coupled with a bit rate of 64Kbps per channel. The system ensures a steady incoming bandwidth of 24Mbps, expanding to 56Mbps after converting all analog channels. With an outgoing bandwidth of 64Mbps, it supports smooth data transmission. The Uniview XVR301-16F accommodates up to 128 remote users and comes with a 1-year brand warranty, offering reliability and simplicity for your surveillance needs.
