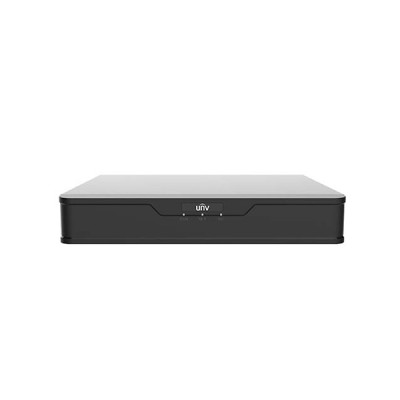

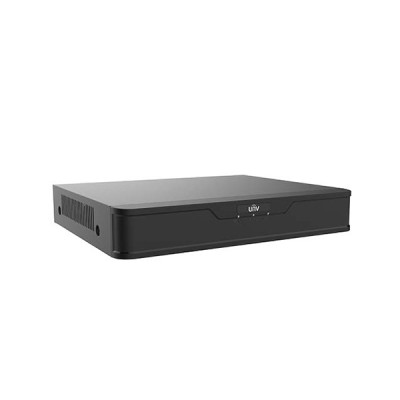

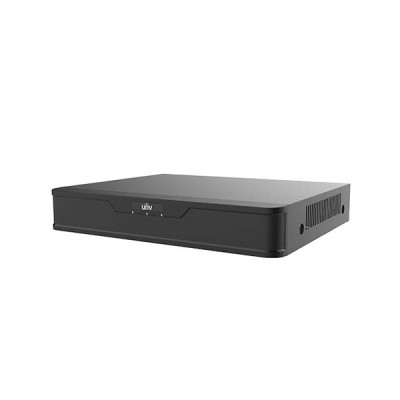

image of Uniview XVR301-08G3 8-Channel 1 SATA XVR with Spec and Price in BDT

Uniview XVR301-08G3 8-Channel 1 SATA XVR

Uniview XVR301-08G3 8-Channel 1 SATA XVR

Key Features of XVR301-08G3:

Channel: 8-Channel
Storage: Up to 8TB for each HDD
Output Port: HDMI. VGA & Audio
Input Port: 1x RJ45, 2x USB2.0
Outgoing Bandwidth: 64Mbps
CALL FOR DETAILS: +880 1729-200300, +880 1969-633163

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Channel: 8-Channel
attr -Key Feature 2 >	Storage: Up to 8TB for each HDD
attr -Key Feature 3 >	Output Port: HDMI. VGA & Audio
attr -Key Feature 4 >	Input Port: 1x RJ45, 2x USB2.0
attr -Key Feature 5 >	Outgoing Bandwidth: 64Mbps
Call Info >	CALL FOR DETAILS: +880 1729-200300, +880 1969-633163
General
Brand	Uniview
Model	XVR301-04G3
Type	4-Channel 1 SATA XVR
Hard Disk
SATA	1 SATA interface
Capacity	Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature)
Video/Audio Input
Analog Video Input	8-ch, BNC
IP Video Input	4-ch(only IP up to 8ch), each channel up to 4MP
Supported Analog Camera Types	Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input
Audio Compression	G.711U
Video/Audio Output
VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Two-way Audio	1-ch, RCA
Live view display	HDMI/VGA: 1/4/6/8/9/16
Synchronous Playback	HD:4-ch SD:8-ch
Snapshot
FTP/Schedule/Event Snapshot	Schedule snapshot is not supported 8-ch snapshot, up to 704*576 resolution
Encoding
Recording Resolution	5MP Lite/4MP Lite /1080P Lite/720P/CIF
Recording Frame Rate	Main stream: 5MP Lite@6fps \| 4MP Lite@8fps \| 1080P Lite@12fps \| 720P@12fps Sub stream: D1@6fps \| D1@8fps \| D1@12fps \| D1@12fps
Audio Sample Rate	8KHz,16 bit per channel
Audio Bit Rate	64Kbps per channel
Decoding
Capability	Analog: 4 x 5MP Lite@6,4x 4MP Lite@8, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30
Network
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Incoming Bandwidth	32Mbps (Up to 40Mbps after all-analog channel conversion)
Outgoing Bandwidth	64Mbps
Web Browser	IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows
Remote Users	128
General Alarm
General Alarm	Motion detection
Alert Alarm	IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal External Interface
Smart Alarm
VCA Detection	Ultra Motion Detection(UMD) for analog:4-ch
VCA Search	Behavior Search
External Interface
Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel: 2 x USB2.0
Power
Power	12V DC Power Consumption: ≤ 8 W (without HDD)
Operating Environment
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Physical Specification
Dimensions	260mm ×226mm× 47mm (10.2" × 8.9"×1.8")
Weight	≤1.1 Kg ( 2.42lb )
Additional
Certification	UL CE FCC RoHS WEEE
Warranty
Warranty Details	1-Year Brand Warranty

Description:

Uniview XVR301-08G3 8-Channel 1 SATA XVR

Uniview XVR301-08G3 is a straightforward 8-channel XVR system, designed for reliable surveillance without unnecessary complexities. Boasting a single SATA interface with an impressive capacity of up to 8TB per HDD, it ensures extensive storage for your video recordings. With 8 analog video inputs via BNC connectors and support for 4 IP video inputs, each accommodating up to 4MP, this XVR offers comprehensive coverage for your security needs.

Display options include VGA and HDMI outputs with resolutions like 1920x1080p/60Hz, delivering clear and detailed visuals. The addition of an audio output via RCA enhances the functionality of the system. Recording options comprise 5MP Lite, 4MP Lite, 1080P Lite, 720P, and CIF, catering to various recording requirements. The main stream maintains optimal video quality with frame rates like 5MP Lite at 6fps, 4MP Lite at 8fps, 1080P Lite at 12fps, and 720P at 12fps. The substream operates at D1 with frame rates of 6fps, 8fps, 12fps, and 12fps. Audio features include an 8KHz sample rate and 16-bit per channel, with a bit rate of 64Kbps per channel. The system offers a reliable incoming bandwidth of 32Mbps, expanding to 40Mbps after converting all analog channels. With a capacity for 128 remote users and a 1-year brand warranty, the Uniview XVR301-08G3 ensures dependable performance for your surveillance needs.
