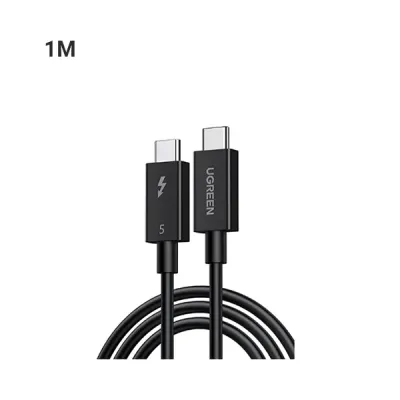

image of UGREEN L703 (45996) 5A Thunderbolt TM 5 Cable - 1M with Spec and Price in BDT

UGREEN L703 (45996) 5A Thunderbolt TM 5 Cable - 1M

Key Features of L703 (45996):
Supports 80 Gbps Data Transfer and up to 120 Gbps Video Bandwidth
Display Support: Handles 3x 4K@60Hz Displays
Supports up to 240W charging (48V/5A) with PD 3.1
Certified Safety and Quality
Warranty: 01-Year Brand Warranty
UGREEN L703 (45996) 5A Thunderbolt TM 5 Cable - 1M
Based on 0 reviews. - Write a review
৳4,600.00
Add to Cart
Buy Now
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Supports 80 Gbps Data Transfer and up to 120 Gbps Video Bandwidth
attr -Key Feature 2 > Display Support: Handles 3x 4K@60Hz Displays
attr -Key Feature 3 > Supports up to 240W charging (48V/5A) with PD 3.1
attr -Key Feature 4 > Certified Safety and Quality
attr -Key Feature 5 > Warranty: 01-Year Brand Warranty
Additional Info
Additional Info Brand: Ugreen
Model: L703 (45996)
Color: Black
Length: 1 meter

Outer Diameter (OD): 4.8 ± 0.15 mm
Outer Coating: FRPE (Flame-Retardant Polyethylene)
Wire Material: Silver-Coated Copper + Tin-Coated Copper

Wire Structure:
8 Coaxial high-speed signal wires (30 AWG)
USB 2.0 pair (34 AWG)
Additional power and CC lines
Total: 8 coaxial + 10 cores

Shielding: Aluminum foil + Tin-coated copper braided
Connector Type: USB-C/M (24-pin)

Connector Material:
Black Vinyl Core (94V-0 rated)
Gold-plated contacts (30U")
Nickel-plated stainless steel housing

E-Marker Chip: CYPD2103
Capacitor: 200nF × 2
Voltage Withstand: 100V
Plug Lifecycle: 10,000 times
Swing Test: 3000 times, ±60°, 300g, 30 cycles/min

Resistance:
High-speed signal: ≈ 0.31Ω/m²
USB 2.0 line: ≈ 0.89Ω/m²
CC/SBU: ≈ 0.5Ω/m²
Power line: ≈ 0.11Ω/m²

Data Transfer: Thunderbolt 5 (Backward-compatible with TB4/TB3/USB4/3.1/3.0/2.0)

Bandwidth:
Bidirectional: 80 Gbps
Unidirectional video: 120 Gbps

Resolution Support:
Triple 4K@60Hz (tested)
Theoretical: Triple 4K@144Hz, Single 16K@60Hz

Charging Power: Up to 240W (48V/5A Max)
Charging Protocols: PD 3.1 / 3.0 / 2.0
Flame Retardant Grade: GB/T 5169.23-2008
Operating Temperature: 0°C to 45°C
Storage Temperature: -15°C to 70°C
Environmental Compliance: RoHS 2.0, REACH, SVHC, POPs, California Prop 65, TSCA, China RoHS
Description:

UGREEN L703 (45996) 5A Thunderbolt TM 5 Cable - 1M

UGREEN L703 (45996) 5A Thunderbolt TM 5 Cable - 1M is a high-speed USB-C cable for ultimate data transfer, power delivery, and display output. The 1-meter cable supports Thunderbolt 5 and is backward compatible with Thunderbolt 4, Thunderbolt 3, USB4, USB 3.1, USB 3.0, and USB 2.0 devices. The cable is made of 8 silver-plated copper coaxial high-speed signal wires (30 AWG) and another 10 cores for power and signal stability. It has an aluminum foil and tin-plated copper braiding shielding that protects it well from interference. The wire coating is flame-retardant FRPE, and the diameter is 4.8±0.15mm.

It has a 24-pin USB-C connector with 30U" gold-plated contacts, black vinyl core, and nickel-plated stainless steel shell. The connector is equipped with a CYPD2103 E-Marker chip and dual 200nF capacitors to aid in secure power and intelligent identification. It supports 10,000 plug and unplug times and has withstood 3000 swing tests at 300g load at ±60°. It offers up to 80 Gbps bidirectional bandwidth, 120 Gbps video bandwidth, and supports resolutions of up to 16K@60Hz or triple 4K@144Hz. For Thunderbolt 5 PCs and docks that have been certified, it handles three 4K@60Hz monitors at once.

It can support up to 48V/5A (240W Max) charging and is PD 3.1, PD 3.0, and PD 2.0 compatible. Resistance is dealt with nicely with 0.31Ω/m² for signal lines and 0.11Ω/m² for power. The cable is compliant with GB/T 5169.23-2008 flame retardant standards and RoHS, REACH, SVHC, TSCA, and other safety standards. It can work within 0–45°C and be safely stored between -15–70°C, making it home, office, or travel-ready.

Buy UGREEN L703 (45996) 5A Thunderbolt TM 5 Cable - 1M in Bangladesh

You can buy your desired UGREEN L703 (45996) 5A Thunderbolt TM 5 Cable - 1M at Global Brand PLC. We are the authorized distributor of UGREEN in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
