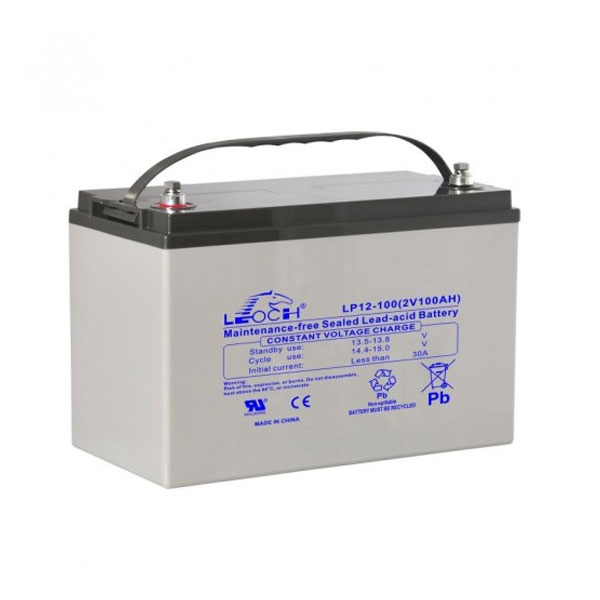

Leoch 100AH UPS Battery
Leoch 100AH UPS Battery

Leoch 100AH UPS Battery

Key Features:

Key Features
attr - Key Feature 1 > Brand: Leoch
attr -Key Feature 2 > Capacity: 100AH
attr -Key Feature 3 > Nominal Voltage: 12V
attr -Key Feature 4 > Internal Resistance: Approx. 4.9mΩ
attr -Key Feature 5 > IEC 60896 Certified
Battery - UPS
Nominal Voltage 12V
Nominal Capacity (20HR) 100AH
Dimensions Length: 330± 3mm
Width: 173 ± 3mm
Container Height: 213 ± 3mm
Total Height (with Terminal): 220 ± 3mm
Terminal T11
Container Material ABS
Max. Discharge Current 1150A (5s)
Internal Resistance Approx. 4.9mΩ
Operating Temp. Range Discharge: -15~50°C (5~122°F)
Charge: 0~40°C (32~104°F)
Storage: -15~40°C (5~104°F)
Nominal Operating Temp. Range 25±3°C (77 ± 5°F)
Applications Uninterruptable Power Supply (UPS)
Electric Power System (EPS)
Aircraft Signal
Electronic apparatus and equipment
Emergency backup power supply
DC power supply
Standards IEC 60896 Certified
Classified as “Standard commercial” according to Eurobat
UL Certified
Approved as non-hazardous cargo for ground, sea, and air transportation in accordance with ICAO, IATA, and IMDG
Manufactured in Leoch® Ts16949, ISO 9001, ISO 14001, and OHSAS 18001 certified production facilities.
৳20,700

Specification

Key Features
attr - Key Feature 1 > Brand: Leoch
attr -Key Feature 2 > Capacity: 100AH
attr -Key Feature 3 > Nominal Voltage: 12V
attr -Key Feature 4 > Internal Resistance: Approx. 4.9mΩ
attr -Key Feature 5 > IEC 60896 Certified
Battery - UPS
Nominal Voltage 12V
Nominal Capacity (20HR) 100AH
Dimensions Length: 330± 3mm
Width: 173 ± 3mm
Container Height: 213 ± 3mm
Total Height (with Terminal): 220 ± 3mm
Terminal T11
Container Material ABS
Max. Discharge Current 1150A (5s)
Internal Resistance Approx. 4.9mΩ
Operating Temp. Range Discharge: -15~50°C (5~122°F)
Charge: 0~40°C (32~104°F)
Storage: -15~40°C (5~104°F)
Nominal Operating Temp. Range 25±3°C (77 ± 5°F)
Applications Uninterruptable Power Supply (UPS)
Electric Power System (EPS)
Aircraft Signal
Electronic apparatus and equipment
Emergency backup power supply
DC power supply
Standards IEC 60896 Certified
Classified as “Standard commercial” according to Eurobat
UL Certified
Approved as non-hazardous cargo for ground, sea, and air transportation in accordance with ICAO, IATA, and IMDG
Manufactured in Leoch® Ts16949, ISO 9001, ISO 14001, and OHSAS 18001 certified production facilities.
