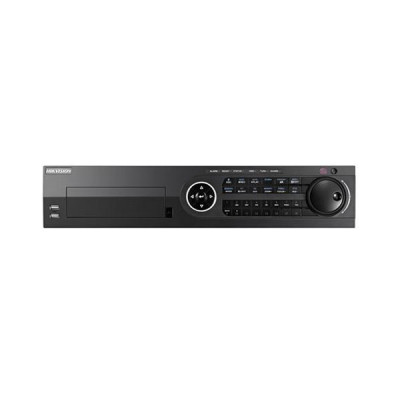

Hikvision DS-8132HQHI-K8 Turbo HD DVR
Out Of Stock
Hikvision DS-8132HQHI-K8 Turbo HD DVR

Hikvision DS-8132HQHI-K8 Turbo HD DVR

Key Features:

Key Features
attr - Key Feature 1 > Support H.265 Pro+/H.265 Pro/H.265 video compression
attr -Key Feature 2 > Support HDTVI/AHD/CVI/CVBS/IP video input
attr -Key Feature 3 > Max 40/48 IP cameras input (up to 6 MP)
attr -Key Feature 4 > Max 800 m for 1080p and 1200 m for 720p HDTVI signal
attr -Key Feature 5 > Up to 10 TB capacity per HDD
DVR, NVR & XVR
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP [email protected]; 1080p lite/720p/WD1/4CIF/VGA/CIF
@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/[email protected]
For 1080p stream access: 1080p/[email protected]; WD1/4CIF/VGA/[email protected] (P)/30fps
(N)
For 720p stream access: 720p/WD1/4CIF/VGA/[email protected] (P)/30fps (N)
When 1080p Lite mode enabled:
For 4 MP stream access: 4 MP [email protected]; 1080p lite/720p lite/WD1/4CIF/VGA
/[email protected] (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/[email protected]
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/[email protected] (P)/30fps
(N)
For 720p stream access: 720p/WD1/4CIF/VGA/[email protected] (P)/30fps (N)
Sub-stream:
WD1/[email protected]; [email protected] (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
stream type video, video, and audio
Audio bit rate 64 Kbps
Video and audio
Ip video Input 16-ch (up to 48-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 24-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
*: The 3 MP signal input is only available for channel 1/2/3/4.
AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI1/ VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz
HDMI2 output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input 16-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 2-ch, RCA (Linear, 1 KΩ)
Two way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
synchronous playback 16-ch
Network
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI,
UPnP™, HTTPS,
ONVIF, SNMP
Network interface 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA 8 SATA interfaces
eSATA Support
Capacity Up to 10 TB capacity for each disk
serial interfaces RS-232, RS-485 (full-duplex), Keyboard
alarm in / out 16/8
usb interface Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
power supply 100 to 240 VAC
consumption ≤ 45 W
৳0

Specification

Key Features
attr - Key Feature 1 > Support H.265 Pro+/H.265 Pro/H.265 video compression
attr -Key Feature 2 > Support HDTVI/AHD/CVI/CVBS/IP video input
attr -Key Feature 3 > Max 40/48 IP cameras input (up to 6 MP)
attr -Key Feature 4 > Max 800 m for 1080p and 1200 m for 720p HDTVI signal
attr -Key Feature 5 > Up to 10 TB capacity per HDD
DVR, NVR & XVR
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP [email protected]; 1080p lite/720p/WD1/4CIF/VGA/CIF
@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/[email protected]
For 1080p stream access: 1080p/[email protected]; WD1/4CIF/VGA/[email protected] (P)/30fps
(N)
For 720p stream access: 720p/WD1/4CIF/VGA/[email protected] (P)/30fps (N)
When 1080p Lite mode enabled:
For 4 MP stream access: 4 MP [email protected]; 1080p lite/720p lite/WD1/4CIF/VGA
/[email protected] (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/[email protected]
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/[email protected] (P)/30fps
(N)
For 720p stream access: 720p/WD1/4CIF/VGA/[email protected] (P)/30fps (N)
Sub-stream:
WD1/[email protected]; [email protected] (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
stream type video, video, and audio
Audio bit rate 64 Kbps
Video and audio
Ip video Input 16-ch (up to 48-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input 24-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
*: The 3 MP signal input is only available for channel 1/2/3/4.
AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI1/ VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz
HDMI2 output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input 16-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 2-ch, RCA (Linear, 1 KΩ)
Two way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
synchronous playback 16-ch
Network
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI,
UPnP™, HTTPS,
ONVIF, SNMP
Network interface 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA 8 SATA interfaces
eSATA Support
Capacity Up to 10 TB capacity for each disk
serial interfaces RS-232, RS-485 (full-duplex), Keyboard
alarm in / out 16/8
usb interface Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
power supply 100 to 240 VAC
consumption ≤ 45 W
