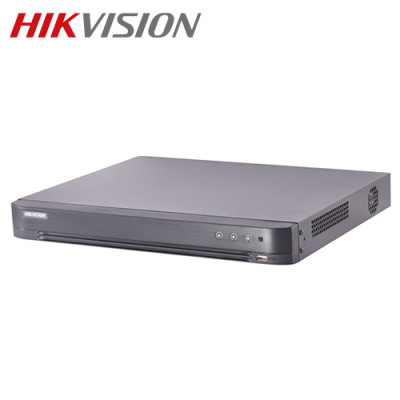

Hikvision DS-7224HQHI-K2 Turbo HD DVR
Out Of Stock
Hikvision DS-7224HQHI-K2 Turbo HD DVR

Hikvision DS-7224HQHI-K2 Turbo HD DVR

Key Features:

Key Features
attr - Key Feature 1 > 32 channels and 2 HDDs 1U DVR
attr -Key Feature 2 > Efficient H.265 pro+ compression technology
attr -Key Feature 3 > Encoding ability up to 1080p @ 15 fps
attr -Key Feature 4 > 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
attr -Key Feature 5 > Up to 32 network cameras can be connected
DVR, NVR & XVR
Video compression H.265+/H.265/H.264+/H.264
Encoding Resolution When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP [email protected]; 1080p
lite/720p/WD1/4CIF/VGA/[email protected]
(P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/[email protected]
For 1080p stream access: 1080p/[email protected]; VGA/WD1/4CIF/[email protected]
(P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/[email protected] (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 [email protected]; 1080p lite/720p lite/VGA/WD1/4CIF/[email protected]
(P)/30fps (N) Sub-stream:
WD1/[email protected]; [email protected] (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream support
stream type video video and audio
Audio bit rate 64 Kbps
Video and audio
Ip video Input 2-ch
Up to 4 MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras
Analog video input BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
Note: The 3 MP signal input is only available for channel 1/2/3/4.
AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI1/ VGA output VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz,
1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output Audio output: 1-ch, RCA (Linear, 1 KΩ)
Two way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1
st audio input)
synchronous playback 16-ch
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
SATA 2 sata interface
Capacity Up to 8 TB capacity for each disk
serial interfaces RS-485 (half-duplex)
usb interface Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
More Information network management: —
Hard disk: —
External Interface: —
৳0
