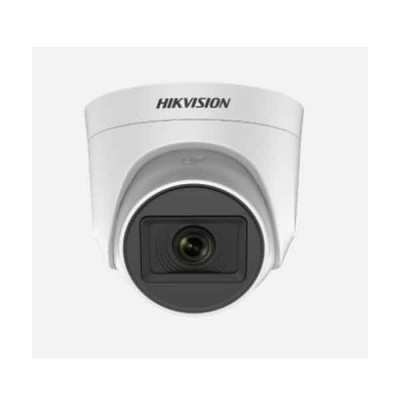

HikVision DS-2CE76H0T-ITPFS 5MP Indoor Fixed Turret Camera
Out Of Stock
HikVision DS-2CE76H0T-ITPFS 5MP Indoor Fixed Turret Camera

HikVision DS-2CE76H0T-ITPFS 5MP Indoor Fixed Turret Camera

Key Features:

Key Features
attr - Key Feature 1 > 5 MP coaxial audio camera
attr -Key Feature 2 > Enhanced safety with a discreet and economical built-in microphone
attr -Key Feature 3 > Transmit audio over coaxial cable
attr -Key Feature 4 > EXIR 2.0: advanced infrared technology with 20 m IR distance
attr -Key Feature 5 > 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
CC Cam
General Information Material: Plastic
Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Approx. 140.5 g (0.31 lb.) Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication: HIKVISION-C
Language: English
Power Supply: 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera. Consumption: Max. 3.7 W
IR Range: Up to 20 m
Camera Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) × 1944 (V
Min. Illumination: 0.01 [email protected](F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night: ICR
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System: PAL/NTSC
Image Image Parameters Switch: STD/HIGH-SAT
Image Settings: Brightness, Sharpness, Mirror, Smart IR
Frame Rate:TVI: [email protected], [email protected], [email protected], [email protected], [email protected]
CVI: [email protected], [email protected]
AHD: [email protected], [email protected], [email protected]
CVBS: PAL/NTSC
Day/Night Mode: Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR): Digital WDR
AGC: Support
Lens Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV:
2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7°
3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
Lens Mount: M12
Interface Video Output: Switchable TVI/AHD/CVI/CVBS
Warranty 1 Years Brand Warranty
৳0

Specification

Key Features
attr - Key Feature 1 > 5 MP coaxial audio camera
attr -Key Feature 2 > Enhanced safety with a discreet and economical built-in microphone
attr -Key Feature 3 > Transmit audio over coaxial cable
attr -Key Feature 4 > EXIR 2.0: advanced infrared technology with 20 m IR distance
attr -Key Feature 5 > 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
CC Cam
General Information Material: Plastic
Dimension: Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Approx. 140.5 g (0.31 lb.) Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
Communication: HIKVISION-C
Language: English
Power Supply: 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera. Consumption: Max. 3.7 W
IR Range: Up to 20 m
Camera Image Sensor: 5 MP CMOS
Max. Resolution: 2560 (H) × 1944 (V
Min. Illumination: 0.01 [email protected](F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night: ICR
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Signal System: PAL/NTSC
Image Image Parameters Switch: STD/HIGH-SAT
Image Settings: Brightness, Sharpness, Mirror, Smart IR
Frame Rate:TVI: [email protected], [email protected], [email protected], [email protected], [email protected]
CVI: [email protected], [email protected]
AHD: [email protected], [email protected], [email protected]
CVBS: PAL/NTSC
Day/Night Mode: Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR): Digital WDR
AGC: Support
Lens Lens Type: 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV:
2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7°
3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°
6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
Lens Mount: M12
Interface Video Output: Switchable TVI/AHD/CVI/CVBS
Warranty 1 Years Brand Warranty
