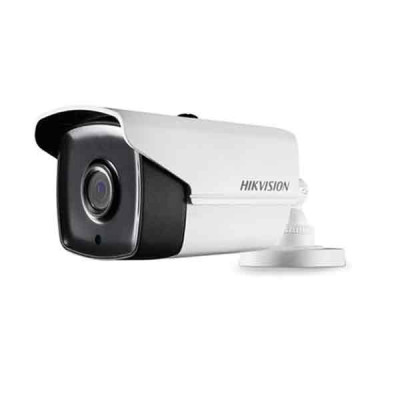

HikVision DS-2CE16D0T-IT3F HD1080P EXIR Bullet Camera
Out Of Stock
HikVision DS-2CE16D0T-IT3F HD1080P EXIR Bullet Camera

HikVision DS-2CE16D0T-IT3F HD1080P EXIR Bullet Camera

Key Features:

Key Features
attr - Key Feature 1 > 2 Megapixel high-performance CMOS
attr -Key Feature 2 > Analog HD output, up to 1080P resolution
attr -Key Feature 3 > True Day/Night
attr -Key Feature 4 > Water and dust resistant (IP67)
attr -Key Feature 5 > 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
CC Cam
General Information Material: Front cover: Mental ,Main Body: Plastic,Bracket: Metal
Dimension: 86.7 mm × 81.6 mm × 226 mm (3.4" × 3.2" × 8.9")
Weight : 430 g (0.95 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Language: English, Chinese
Power Supply: 12 VDC±15%
Consumption: Max. 4 W
IR Range: Up to 40 m
Camera Image Sensor: 2MP CMOS image sensor
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.01 [email protected](F1.2,AGC ON),0 Lux with IR
Shutter Time:1/25 (1/30) s to 1/50,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Signal System: PAL/NTSC
Image Image Settings: Brightness, Sharpness, DNR, Mirror
Frame Rate:PAL: [email protected],NTSC: [email protected]
Wide Dynamic Range: (WDR): DWDR
Image Enhancement: BLC
Day/Night Mode: Smart/color/BW(Black and White)
AGC: Low/middle/high
Lens Lens Type: 3.6 mm, 2.8 mm, 6 mm, 8 mm, 12 mm fixed lens
Focal Length & FOV:
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5°
12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1° Lens Mount: M12
Interface Video Output: Switchable TVI/AHD/CVI/CVBS
More Information Approval: Protection IP66
Warranty 1 Years Brand Warranty
৳0

Specification

Key Features
attr - Key Feature 1 > 2 Megapixel high-performance CMOS
attr -Key Feature 2 > Analog HD output, up to 1080P resolution
attr -Key Feature 3 > True Day/Night
attr -Key Feature 4 > Water and dust resistant (IP67)
attr -Key Feature 5 > 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
CC Cam
General Information Material: Front cover: Mental ,Main Body: Plastic,Bracket: Metal
Dimension: 86.7 mm × 81.6 mm × 226 mm (3.4" × 3.2" × 8.9")
Weight : 430 g (0.95 lb.)
Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Language: English, Chinese
Power Supply: 12 VDC±15%
Consumption: Max. 4 W
IR Range: Up to 40 m
Camera Image Sensor: 2MP CMOS image sensor
Max. Resolution: 1920 (H) × 1080 (V)
Min. Illumination: 0.01 [email protected](F1.2,AGC ON),0 Lux with IR
Shutter Time:1/25 (1/30) s to 1/50,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Signal System: PAL/NTSC
Image Image Settings: Brightness, Sharpness, DNR, Mirror
Frame Rate:PAL: [email protected],NTSC: [email protected]
Wide Dynamic Range: (WDR): DWDR
Image Enhancement: BLC
Day/Night Mode: Smart/color/BW(Black and White)
AGC: Low/middle/high
Lens Lens Type: 3.6 mm, 2.8 mm, 6 mm, 8 mm, 12 mm fixed lens
Focal Length & FOV:
2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
8 mm, horizontal FOV: 39.9°, vertical FOV: 21.9°, diagonal FOV: 46.5°
12 mm, horizontal FOV: 24.6°, vertical FOV: 13.9°, diagonal FOV: 28.1° Lens Mount: M12
Interface Video Output: Switchable TVI/AHD/CVI/CVBS
More Information Approval: Protection IP66
Warranty 1 Years Brand Warranty
