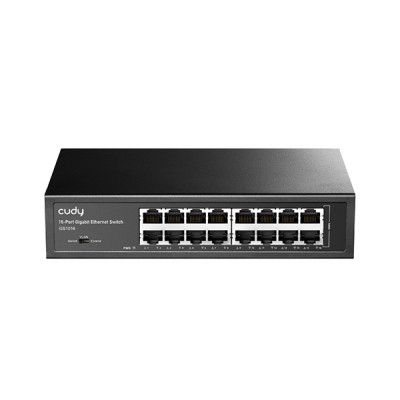

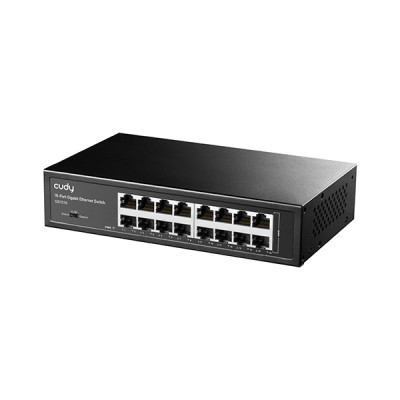

Cudy GS1016 16-Port Gigabit Ethernet Switch
Cudy GS1016 16-Port Gigabit Ethernet Switch
Cudy GS1016 16-Port Gigabit Ethernet Switch

Cudy GS1016 16-Port Gigabit Ethernet Switch

Key Features of GS1016:
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
16x 10/100/1000Mbps Auto-Negotiation, Auto MDI/MDIX ports provide
Non-blocking switching architecture enables full wire-speed packet forwarding and filtering
Store-and-Forward switching method
Supports 8K MAC address auto-learning and auto-aging
Cudy GS1016 16-Port Gigabit Ethernet Switch
৳0.00
Specification:
Key Features
attr - Key Feature 1 > Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
attr -Key Feature 2 > 16x 10/100/1000Mbps Auto-Negotiation, Auto MDI/MDIX ports provide
attr -Key Feature 3 > Non-blocking switching architecture enables full wire-speed packet forwarding and filtering
attr -Key Feature 4 > Store-and-Forward switching method
attr -Key Feature 5 > Supports 8K MAC address auto-learning and auto-aging
Cudy Switch
Model GS1016
Main Features Transmission Distance: 100Meter (328ft)
Ethernet Standard: IEEE 802.3/802.3u / 802.3ab
Switching capacity: 32G
MACAddress: 8K MAC address table

Transfer Rate:
14,880 pps for 10Mbps
148,800 pps for 100Mbps
148,8000 pps for 100Mbps
Hardware Features VLAN (1-14Ports): Port Isolation: Downlink designated ports are isolated from each other, and only transmit data with the uplink port.
Default: Standard Switch: All ports communicate freely
Extend (1-14Ports): Link Extension: The specified port speed drops to 10Mbps, max transmission distance is 250 meters.

LINK/ACT
On: Green - The port is connecting
Blinks: The port is receiving or transmitting data
Off: The port is not linked successfully with the device

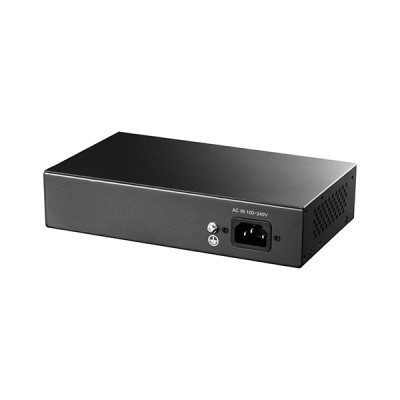

Power Power Supply: Built-in power supply
Voltage Range: Ac100~ 240V
Consumption: <15W
Environment Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~70℃
Operating Humidity: 10%~85% non-condensing
Storage humidity: 5%~85% non-condensing
Dimensions (L*W*H) 200 x 118 x 44mm
Warranty 1-Year Brand Warranty
Description:

Cudy GS1016 16-Port Gigabit Ethernet Switch

Cudy GS1016 16-Port Gigabit Ethernet Switch is a reliable and straightforward networking solution designed to meet essential standards and provide efficient connectivity for various devices. Complying with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standards, this switch features 16 10/100/1000Mbps Auto-Negotiation, Auto MDI/MDIX ports with smart switching abilities. With a non-blocking switching architecture, the GS1016 ensures full wire-speed packet forwarding and filtering, offering consistent and efficient data transfer. Employing a Store-and-Forward switching method, the switch supports 8K MAC address auto-learning and auto-aging, contributing to reliable network performance.

The switch boasts a switching capacity of 32G and supports a transmission distance of up to 100 meters (328ft). With a variety of transfer rates, including 14,880 pps for 10Mbps and 148,800 pps for both 100Mbps and 1000Mbps, it caters to different network demands. Featuring VLAN capabilities, the GS1016 provides Port Isolation for downlink designated ports, isolating them from each other and allowing only data transmission with the uplink port. It also supports an Extend mode, where specified ports drop to 10Mbps, extending the maximum transmission distance to 250 meters. Installation is flexible, supporting 8-inch Rack-mount Steel Case and Desktop installations, allowing deployment in various environments. The switch offers high performance with auto-negotiation RJ-45 ports, providing compatibility with 10/100/1000Mbps Ethernet devices. Additionally, it incorporates IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode, enhancing bandwidth and alleviating network congestion.

Notably, the GS1016 integrates power-saving features, utilizing green Ethernet technology to automatically power down idle ports and adjust power output based on Ethernet cable lengths. This efficient design allows for power savings of up to 40%, contributing to energy efficiency without compromising performance. Backed by a 1-year brand warranty, the Cudy GS1016 16-Port Gigabit Ethernet Switch is a dependable and practical choice for expanding and optimizing your network, offering essential features for efficient data transfer in diverse networking scenarios.
