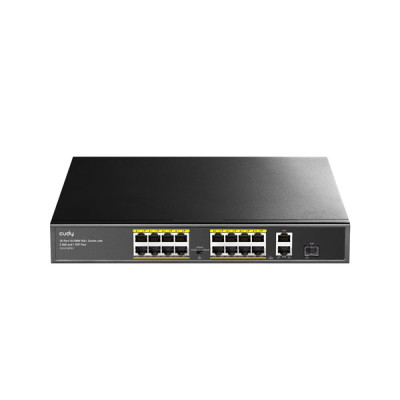

Cudy FS1018PS1 16-Port 10/100M PoE+ Switch
Cudy FS1018PS1 16-Port 10/100M PoE+ Switch
Key Features:
| Key Features | |
| attr - Key Feature 1 > | 200 watts PoE power supply, up to 30 watts per port |
| attr -Key Feature 2 > | 2 10/100/1000M uplink ports +1 SFP Port |
| attr -Key Feature 3 > | 16 10/100M PoE+ ports |
| attr -Key Feature 4 > | CCTV mode support remote PoE feeding up to 250m |
| attr -Key Feature 5 > | VLAN mode isolate each PoE Ports for security |
| Cudy Switch | |
| Model | FS1018PS1 |
| Network Switch | Ethenet Standard: IEEE 802.3 802.3u 802.3ab 802.3af/at Switching Capacity: 7.2G Transfer Rate: 14880 pps for 10Mbps 148800 pps for 100Mbps 1488000 pps for 1000Mbps MAC Adsress: 4K MAC sddress table |
| Link/ACT | On(Green): The port is connecting Blinks: The port is receiving or transmitting data. Off: The port is notl inked successfully with the device |
| POE | On(Oranfe): PD is connected Off: No PD is connected or power forwarding fails PoE Pin Assignmnet: V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6) |
| Environment | Working Temperature: 0~40°C Storage Temperature: -40~70°C Humidity Non Condesing: 0~85% |
| Mechanical | Dimension L*W*H: 280*180*44mm Color: Gray |
| Power supply | Power Supply: Built-in power supply Voltage Range: AC100~240V Consumption: 190W for 16 PoE |
| Switch | |
| Ethernet | Speed: 1~16 Port: 10/100/Mbps G1(combo):10/100/1000Mbps & 1.25bps G2:10/100/1000Mbps Transmission Distance: 100Meter(328ft)for RJ-45 The distance is determined by the optical module The optical module is optional |
৳9,690
Specification
Description
Reviews
Specification
| Key Features | |
| attr - Key Feature 1 > | 200 watts PoE power supply, up to 30 watts per port |
| attr -Key Feature 2 > | 2 10/100/1000M uplink ports +1 SFP Port |
| attr -Key Feature 3 > | 16 10/100M PoE+ ports |
| attr -Key Feature 4 > | CCTV mode support remote PoE feeding up to 250m |
| attr -Key Feature 5 > | VLAN mode isolate each PoE Ports for security |
| Cudy Switch | |
| Model | FS1018PS1 |
| Network Switch | Ethenet Standard: IEEE 802.3 802.3u 802.3ab 802.3af/at Switching Capacity: 7.2G Transfer Rate: 14880 pps for 10Mbps 148800 pps for 100Mbps 1488000 pps for 1000Mbps MAC Adsress: 4K MAC sddress table |
| Link/ACT | On(Green): The port is connecting Blinks: The port is receiving or transmitting data. Off: The port is notl inked successfully with the device |
| POE | On(Oranfe): PD is connected Off: No PD is connected or power forwarding fails PoE Pin Assignmnet: V+(RJ45 Pin 1, 2) - (RJ45 Pin 3,6) |
| Environment | Working Temperature: 0~40°C Storage Temperature: -40~70°C Humidity Non Condesing: 0~85% |
| Mechanical | Dimension L*W*H: 280*180*44mm Color: Gray |
| Power supply | Power Supply: Built-in power supply Voltage Range: AC100~240V Consumption: 190W for 16 PoE |
| Switch | |
| Ethernet | Speed: 1~16 Port: 10/100/Mbps G1(combo):10/100/1000Mbps & 1.25bps G2:10/100/1000Mbps Transmission Distance: 100Meter(328ft)for RJ-45 The distance is determined by the optical module The optical module is optional |
