ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard
ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard
ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard
ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard
ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard

ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard

Key Features of ROG STRIX X870E-H GAMING WIFI7:
Chipset: AMD X870E Chipset for AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 256GB, DDR5
Storage: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, AI Overclocking, DDR5, PCIe Gen 5 Support, WIFI 7, DIY Friendly Design
ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD X870E Chipset for AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors
attr -Key Feature 2 > Socket: AMD Socket AM5
attr -Key Feature 3 > Memory: 4 x DIMM slots, max. 256GB, DDR5
attr -Key Feature 4 > Storage: Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 > Features: Advanced AI PC-ready, AI Overclocking, DDR5, PCIe Gen 5 Support, WIFI 7, DIY Friendly Design
Motherboard
Model ROG STRIX X870E-H GAMING WIFI7
CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to
https://www.asus.com/support/download-center/ for CPU support list.
Chipset AMD X870E
Memory 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen
9000 & 8000 & 7000 Series Processors
Dual-channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
Supports DIMM Fit / DIMM Fit Pro
ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site.
Or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x HDMI port**
2 x USB4 (40Gbps) ports support USB
Type-C display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on the processors or graphics cards' resolution.
Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
- To ensure compatibility of the device
installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*

AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**

AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

* M.2_2 shares bandwidth with PCIEX16(G5).
When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
** M.2_2 will be disabled when using AMD
Ryzen 8000 Series Desktop Processors.
Ethernet 1 x Realtek 5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 7 (Realtek RTL8922AE)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For,
Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,
Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For,
Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth Regulations may vary between countries.
*** The Bluetooth version may vary, please Refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 14 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A
** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*
- Impedance sense for front and rear
headphone outputs
- Internal audio Amplifier to enhance the
highest quality sound for headphones and speakers
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback
output and 113 dB SNR recording input (Line-in)
- Supports up to 32-bit/192 kHz
playback*

Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio.
Make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

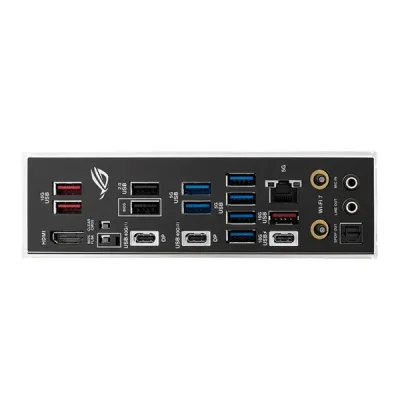

Back Panel I/O Ports 2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB
Type-C with up to 30W PD/PPS Fast-charge)**
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector

Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Overvoltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Special Features Extreme Engine Digi+
- 5K Black metallic capacitors

ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
-Addressable RGB Gen 2 headers
Software Features ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey

* For more software features, please visit the ASUS support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer,
please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber

Documentation
1 x Quick start guide
Operating System Windows 11
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3-Year Brand Warranty (Condition applied)
Description:

ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard Price in Bangladesh

ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard

ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard delivers gaming and content creation ultimate performance, speed, and stability. Built for AMD Ryzen 9000, 8000, and 7000 Series desktop processors, it features PCIe 5.0, DDR5 8000+ MT/s (OC), and two USB4 Type-C ports, delivering the latest connectivity and future-proofing power. The motherboard features a 16+2+2 power stage architecture with 110A rating for efficient and stable power delivery that is ideal for overclocking and heavy loads. AI-powered utilities like AI Overclocking, AI Cooling II, and AI Cache Boost auto-tune CPU, memory, and cooling for the best balance between speed and temperature. AI Networking II provides a fast and stable connection with intelligent traffic optimization.

Storage expansion is quick and easy with two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots. Enhanced cooling support comes in the form of VRM heatsinks, M.2 heatsinks, and multiple fan headers for maintaining stable performance under heavy loads. Support for up to 256GB DDR5 memory with ASUS Enhanced Memory Profile (AEMP) ensures smoother gaming and multitasking performance. Connectivity includes WiFi 7, Realtek 5Gb Ethernet, and several high-speed USB ports, including two USB4 ports with up to 30W PD fast charging. SupremeFX audio enhances in-game audio with clear, immersive sound. The ROG Strix X870E-H also features handy DIY elements like PCIe Q-Release, M.2 Q-Latch, Q-LED, BIOS FlashBack, and Clear CMOS buttons for faster setup and debugging. With its strong power design, premium cooling, and AI optimization, the ASUS ROG STRIX X870E-H is perfect for gamers and professionals who desire fast, stable, and future-proof performance.

Buy ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard in Bangladesh

You can buy your desired ASUS ROG STRIX X870E-H GAMING WIFI7 Ryzen AM5 ATX Gaming Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
