ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard
ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard
ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard
ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard
ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard

ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard

Key Features of Pro WS WRX90E-SAGE SE:
Chipset: AMD WRX90 Chipset for Ryzen Threadripper PRO 9000 & 7000 WX-Series
Socket: AMD Socket sTR5
Ready for Advanced AI PC
Server-grade IPMI remote management
ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD WRX90 Chipset for Ryzen Threadripper PRO 9000 & 7000 WX-Series
attr -Key Feature 2 > Socket: AMD Socket sTR5
attr -Key Feature 4 > Ready for Advanced AI PC
attr -Key Feature 5 > Server-grade IPMI remote management
Motherboard
Model Pro WS WRX90E-SAGE SE
CPU AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series*

*Refer to www.asus.com for CPU support list.
Chipset AMD WRX90 Chipset
Memory 8 x DIMM slots, DDR5, ECC Registered Memory*
8 Channel Memory Architecture

*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU
and memory configuration. For more information,
please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/.
Expansion Slots AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series Processors*
6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)

*Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
**To ensure compatibility of the device installed,
please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD WRX90 Chipset
2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel dual 10Gb Ethernet
ASUS LANGuard
USB Rear USB (Total 9 ports)
2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 ports (2 x Type-A )

Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-bit/192 kHz playback

Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit

*A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

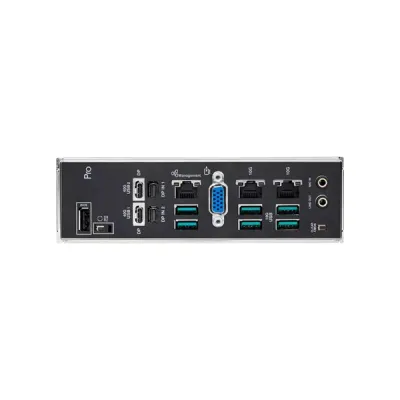

Back Panel I/O Ports 2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (2 x Type-A)
1 x VGA port
2 x mini DisplayPort IN
1 x Intel dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M.2 FAN onboard)

Power related
1 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
2 x 8-pin PCIe Power connector

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port

USB
1 x USB 20Gbps connector supports USB Type-C
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports

Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin system panel header
1 x Thermal sensor header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O

ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate and onboard thermal pads
- M.2 heatsink
- Steel backplate
- VRM heatsink design with active fans

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Bespoke Motherboard Design & Business-Focused Features
- 24/7 Reliability
- Overcurrent Protection

BMC Related
1 x BMC switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
1 x Message LED header
1 x microSD card socket
2 x LAN LED headers
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header (Dedicated Management for AST2600)
1 x VPP_I2C header
Software Features ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey

IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS(text-based)
Manageability WOL by PME, PXE (UEFI mode)

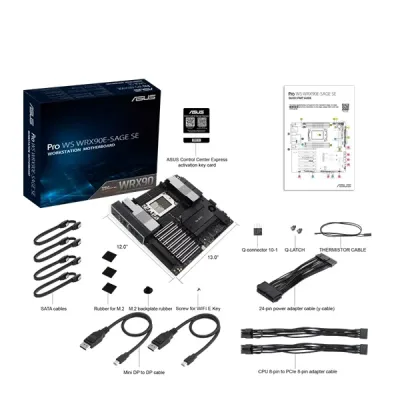

Accessories Cables
2 x PCIe 8-pin to CPU power cables
1 x 24-pin power cable (Y cable)
2 x Mini DisplayPort cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack

Miscellaneous
1 x Q-connector
1 x M.2 Q-Latch package
1 x AMI license sticker
4 x M.2 rubber packages
1 x Screw package for M.2 Key E

Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide
Operating System Windows 11
Windows 10 64-bit
Form Factor EEB Form Factor
12 inch x 13 inch
(30.5 cm x 33 cm)
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard Price in Bangladesh

ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard

ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard is designed for high-performance workstations that need excessive power, speed, and dependability. It supports AMD sTR5 socket for Ryzen Threadripper PRO 7000 WX-Series processors with up to 96 cores, and up to 2TB ECC R-DIMM DDR5 memory. The board features seven PCIe 5.0 x16 slots for multi-GPU setups, perfect for AI computing, rendering, and simulation. Storage is fast and nimble with four PCIe 5.0 M.2 slots and two SlimSAS ports for industrial SSDs. Two Intel X710-AT2 10Gb LAN ports provide server-grade networking, along with a dedicated 1Gb LAN for onboard BMC remote management. Two USB4 40Gbps Type-C ports, six USB 10Gbps Type-A ports, and a front USB 20Gbps Type-C offer high-speed data transfer and connectivity to modern devices.

The 32+3+3+3 power-stage design with two 8-pin CPU connectors offers reliable performance even at heavy loads. Active VRM cooling, chipset cooling, and massive M.2 heat sinks with fans ensure low temperatures during prolonged use. More PCIe power connectors allow multiple high-power graphics cards to be supported. ASUS Q-Release Slim PCIe is easy to remove GPUs from, and SafeSlot and SafeDIMM designs protect PCIe and memory slots. Tool-free installation via the Q-Latch system is available for M.2 SSD. Full fan controls that run through UEFI BIOS, IPMI web UI, or Fan Xpert 4 software, based on several thermal sensor inputs, are available.

Built for 24/7 uptime, this board is thoroughly tested at 45°C and 80% humidity, and it's designed to perform flawlessly in demanding environments. The backplate protects components, and server-grade IPMI with ASUS Control Center Express software offers total remote manageability. The motherboard delivers power, connectivity, and stability for commercial workloads in AI, 3D design, software programming, and beyond.

Buy ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard in Bangladesh

You can buy your desired ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
