ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard
ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard
ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard
ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard

ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard

Key Features of PRO WS TRX50-SAGE WIFI:
Chipset: AMD TRX50 Chipset for Ryzen Threadripper PRO 7000 WX-Series
Socket: AMD Socket sTR5
AMD sTR5 socket supports up to 96-core CPUs
Ready for Advanced AI PC
Server-grade IPMI remote management
ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD TRX50 Chipset for Ryzen Threadripper PRO 7000 WX-Series
attr -Key Feature 2 > Socket: AMD Socket sTR5
attr -Key Feature 3 > AMD sTR5 socket supports up to 96-core CPUs
attr -Key Feature 4 > Ready for Advanced AI PC
attr -Key Feature 5 > Server-grade IPMI remote management
Motherboard
Model Pro WS TRX50-SAGE WIFI
CPU AMD Socket sTR5 for Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors
Chipset AMD TRX50 Chipset
Memory 4 x DIMM slots, DDR5, ECC Registered Memory*
4-Channel Memory Architecture
* Supported memory types, data rate (speed), and several DRAM modules vary depending on the CPU and memory configuration, for more information please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/.
Expansion Slots AMD Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot (x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
Storage Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet 1 x Marvell AQtion 10Gb Ethernet
1 x Intel I226-LM 2.5Gb Ethernet
Wireless & Bluetooth Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 9 ports)
1 x USB 20Gbps port (1 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports
Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphones and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-bit/192 kHz playback

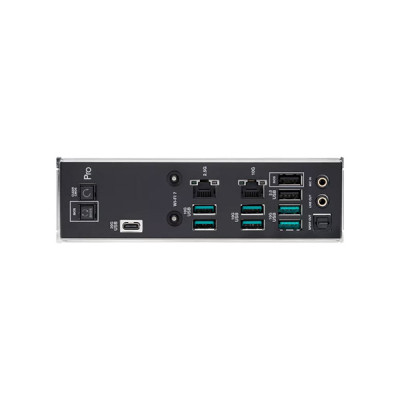

Back Panel I/O Ports 1 x USB 20Gbps port (1 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
1 x SlimSAS port

USB
1 x USB 20Gbps connector supports USB Type-C
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports

Miscellaneous
1 x BMC header1 x COM Port header
1 x USB4 header1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor header
Special Features ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMMBespoke
Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
Software Features ASUS Exclusive Software
Armoury Crate- Fan Xpert 4
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash UtilityFlexKey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE (UEFI mode)
Accessories Cables
2 x SATA 6Gb/s cables
1 x CPU 8-pin to PCIe 8-pin adapter cable package
1 x Thermistor cable pack
Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
1 x M.2 Q-Latch package(2 in 1)
2 x M.2 Rubber Packages
1 x Q-connectorDocumentation
1 x ACC Express Activation Key Card
1 x QSG
Operating System Windows 11 64-bit
Form Factor CEB Form Factor
12 inch x 11 inch
(30.5 cm x 28.0 cm)
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard Price in Bangladesh

ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard

ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard is a powerful solution for professionals in content creation, software development, machine learning, and more. This AMD TR5 CEB workstation motherboard supports AMD Ryzen Threadripper PRO 7000 WX-Series and AMD Ryzen Threadripper 7000 Series processors, accommodating up to 96-core CPUs. The board is designed to handle demanding tasks with its support for up to 1TB ECC R-DIMM DDR5 memory modules, ensuring that your system can run smoothly and efficiently. This motherboard features 36 power stages with two 8-pin power connectors, providing stable power delivery for high-performance CPUs. Its advanced cooling system includes massive VRM cooling, chipset and M.2 heatsinks, and an M.2 thermal pad, ensuring that your system remains cool even during heavy workloads.

For connectivity, the ASUS Pro WS TRX50-SAGE WIFI offers three PCIe 5.0 x16 slots, making it ready for multiple GPUs, which is essential for rendering, simulations, and other graphics-intensive tasks. It also includes three M.2 slots for fast storage, 10 Gb and 2.5 Gb LAN ports for high-speed networking, and both front and rear USB 20Gbps Type-C ports. Additionally, SlimSAS NVMe support allows for fast data transfers, further enhancing the motherboard’s capabilities. ASUS has integrated server-grade IPMI remote management into this motherboard, with support for ASUS IPMI expansion cards and ASUS Control Center Express software. This provides real-time monitoring and management, crucial for maintaining system performance and stability.


Overview of ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard:

  • Designed for advanced AI computing with power and connectivity.
  • Supports up to 96-core AMD Ryzen Threadripper PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.
  • Supports up to 1TB ECC R-DIMM DDR5 memory modules.
  • Robust power and thermal design with 36 power stages, massive VRM cooling, chipset M.2 heatsinks, and M.2 thermal pad.
  • Offers ultrafast connectivity with three PCIe® 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, and SlimSAS NVMe support.
  • Provides server-grade IPMI remote management and ASUS Control Center Express software for real-time monitoring and management.
  • Validated for extensive compatibility with the latest technologies and 24/7 operation.


The ASUS Pro WS TRX50-SAGE WIFI motherboard is built with trusted stability in mind. It has been validated for extensive compatibility with the latest technologies and tested for 24/7 operation, making it a reliable choice for professional environments. Whether you are working on advanced AI computing, running multiple GPUs, or overclocking your system, the ASUS Pro WS TRX50-SAGE WIFI motherboard is designed to meet the needs of the most demanding applications. Its combination of power, connectivity, and stability makes it an ideal choice for high-end workstations.

Buy ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard in Bangladesh

You can buy your desired ASUS Pro WS TRX50-SAGE WIFI Workstation Motherboard at Global Brand PLC. We are the authorized distributor of ASUS in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
