ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard
ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard
ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard
ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard
ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard

ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard

Key Features of Pro WS TRX50-SAGE WIFI A:
Chipset: AMD TRX50 Chipset for Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors
Socket: AMD Socket sTR5
AMD sTR5 socket supports up to 96-core CPUs
Ready for Advanced AI PC
Server-grade IPMI remote management
ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD TRX50 Chipset for Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors
attr -Key Feature 2 > Socket: AMD Socket sTR5
attr -Key Feature 3 > AMD sTR5 socket supports up to 96-core CPUs
attr -Key Feature 4 > Ready for Advanced AI PC
attr -Key Feature 5 > Server-grade IPMI remote management
Motherboard
Model Pro WS TRX50-SAGE WIFI A
CPU AMD Socket sTR5 for Ryzen Threadripper PRO 9000 & 7000 WX-Series
and Ryzen Threadripper 9000 & 7000 Series Processors **

*Refer to www.asus.com for CPU support list.
**System boot may take longer with Threadripper 9000 series CPUs due to memory calibration.
This behavior is normal. Please allow sufficient time for the process to complete.
Chipset AMD TRX50 Chipset
Memory 4 x DIMM slots, DDR5, ECC Registered Memory*
4 Channel Memory Architecture

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
For more information, please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Expansion Slots AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series Processors
3 x PCIe 5.0 x16 slots
1 x PCIe 4.0 x16 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
Storage Total supports 4 x M.2 slots, 4 x SATA 6Gb/s ports , 2 x SlimSAS ports
AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series and AMD Ryzen Threadripper 9000 & 7000 Series Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**

AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode),shared bandwidth with SlimSAS_2***
4 x SATA 6Gb/s ports
SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device, shared bandwidth M.2_3***

AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)****
SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device****

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
** M.2_1 & M.2_2 slots only support PCIe 4.0 x4 mode when using Threadripper 7000 non-pro series CPUs
*** M.2_3 slot shares bandwidth with SlimSAS_2.When M.2_3 slot is operating, SlimSAS_2 will be disabled, and vice versa.
**** Supported when the Threadripper PRO series CPU is installed
Ethernet 1 x Marvell AQtion 10Gb Ethernet
1 x Intel I226-LM 2.5Gb Ethernet
Wireless & Bluetooth Wi-Fi 7 (Realtek RTL8922AE)
2x2 Wi-Fi 7* (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth
Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
**Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country. **
*** The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 9 ports)
2 x USB4 (40Gbps) (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A )
1 x USB 2.0 ports (1 x Type-A )

Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD)*
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports

* USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphones and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-bit/192 kHz playback

Audio Features
- Audio Shielding
- Dedicated audio PCB layers
- Unique de-pop circuit

* A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

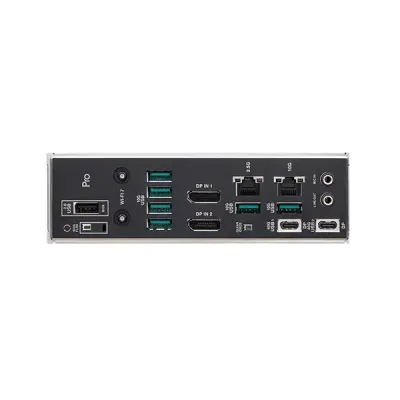

Back Panel I/O Ports 2 x USB4 (40Gbps) ports (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
2 x DisplayPort IN
1 x Wi-Fi Module
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)

Power related
1 x 24-pin Main Power connectors
1 x 4-pin to 24-pin Main Power connectors
2 x 8-pin +12V CPU Power connector
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector

Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port

USB
1 x USB 20Gbps connector supports USB Type-C
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports

Miscellaneous
1 x Addressable RGB Gen 2 header
1 x BMC header
1 x COM Port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
1 x Chassis intrusion header
1 x Thermal Sensor header
7 x ProbeIt Measurement Points
Special Features ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- M.2 Q-Release
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- M.2 heatsink backplate
- VRM heatsink design with active fans

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Addressable RGB Gen 2 header

Bespoke Motherboard Design & Business-Focused Features
- 24/7 Reliability
- Overcurrent Protection
Software Features ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
- Aura Sync
ASUS CPU-Z
ASUS DriverHub
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey

* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer,
please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Remote Management Features IT Management software supported
- ASUS Control Center Express(ACCE)

Ready for IPMI Expansion Card*
1 x BMC header
* IPMI Expansion Card is sold separately.
Manageability WOL by PME, PXE (UEFI mode)

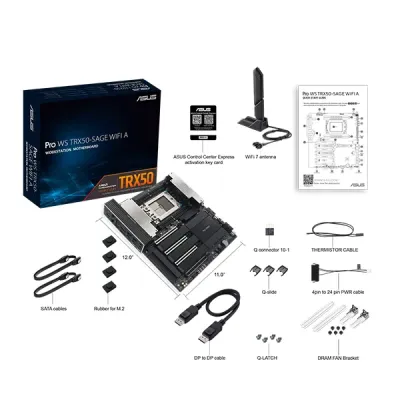

Accessories Cables
2 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x DisplayPort cable
1 x 4-pin to 24-pin ATX power connector

Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 Q-Latch package(2 in 1)
2 x M.2 Q-Slide package
2 x M.2 Rubber Packages
1 x Fan bracket
1 x Q-connector

Documentation
1 x ACC Express Activation Key Card
1 x QSG
Operating System Windows 11
Form Factor CEB 12 inch x 11 inch (30.5 cm x 28.0 cm)
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard Price in Bangladesh

ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard

ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard is built for professionals who need extreme power, stability, and connectivity for top-level workloads such as 3D design, video editing, machine learning, and AI computing. Constructed for AMD sTR5 socket, it is compatible with Ryzen Threadripper PRO 9000 & 7000 WX-Series and Ryzen Threadripper 9000 & 7000 Series processors with up to 96 cores, offering users the performance needed for the most demanding applications. This motherboard can be equipped with up to 1TB ECC R-DIMM DDR5 memory, CPU, and memory overclocking support for better performance. The 20+3+3+3 power-stage design, dual 8-pin CPU power connectors, ProCool II connectors, and premium VRM cooling enable stable operation under heavy loads. Comprehensive heatsinks, active cooling, and thermal pads on M.2 slots keep temperatures in check for stable performance.

ASUS Pro WS TRX50-SAGE WIFI A provides three PCIe 5.0 x16, one PCIe 4.0 x16, and four M.2 slots (PCIe 5.0/4.0) along with SlimSAS support for expansion of high-speed storage. It connects using dual USB4 ports (40 Gbps), USB 20 Gbps Type-C front panel, six USB 10 Gbps ports, WiFi 7, and both 10 Gb and 2.5 Gb Ethernet for high-speed networking. Multi-GPU support ensures support for high-powered graphics configurations.

For IT commercial use, the motherboard supports ASUS IPMI expansion cards and ASUS Control Center Express for remote management, monitoring, and security. SafeSlot, SafeDIMM, M.2 Q-Latch, and PCIe Q-Release Slim are all features that ensure easy and secure installation. ASUS Pro WS TRX50-SAGE WIFI A is a workstation solution designed for stability, expandability, and performance, and has been tested for 24/7 reliability in high temperature and humidity environments.

Buy ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard in Bangladesh

You can buy your desired ASUS Pro WS TRX50-SAGE WIFI A Workstation Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
