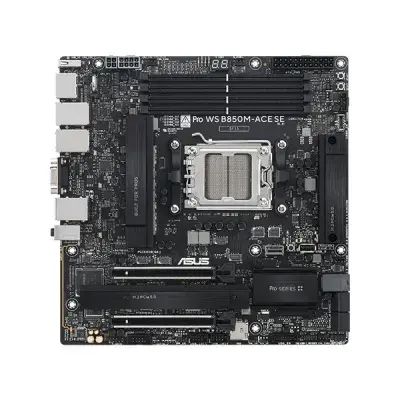

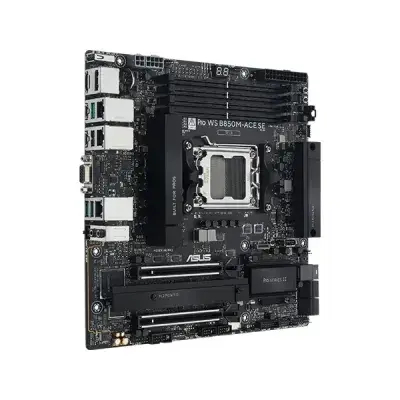

ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard
ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard
ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard
ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard
ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard

ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard

Key Features of Pro WS B850M-ACE SE:
Chipset: AMD B850 Chipset
Socket: AMD Socket AM5
Storage Supports: 3 × M.2 slots & 4 × SATA 6Gb/s ports
Memory: 4 x DIMM slots, max. 256GB, DDR5
Features: Easy PC DIY, PCIe 5.0 Expansion Slot, Intelligent AI Solutions, Dual Ethernet, ASUS Fan Xpert 4, Armoury Crate
ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD B850 Chipset
attr -Key Feature 2 > Socket: AMD Socket AM5
attr -Key Feature 3 > Storage Supports: 3 × M.2 slots & 4 × SATA 6Gb/s ports
attr -Key Feature 4 > Memory: 4 x DIMM slots, max. 256GB, DDR5
attr -Key Feature 5 > Features: Easy PC DIY, PCIe 5.0 Expansion Slot, Intelligent AI Solutions, Dual Ethernet, ASUS Fan Xpert 4, Armoury Crate
Motherboard
Model Pro WS B850M-ACE SE
CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset AMD B850 Chipset
Memory 4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Supports up to 5600MT/s with AMD EPYC 4005 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or
visit https://www.asus.com/support/download-center/. Adjustments will be made based
on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports
On-Die ECC function.
Graphics 1 x DisplayPort**
1 x VGA port from AST2600
1 x HDMI port***
1 x USB 10Gbps port (USB Type-C) supports
DisplayPort video output**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU type.
- To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots, 1 x MCIO connector, 1 x U.2 connector and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors and AMD EPYC 4005 Series Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
MCIO connector (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
MCIO connector (supports PCIe 4.0 x4/x2 mode)**
AMD B850 Chipset
U.2_1 connector supports PCIe 3.0 x4 mode via an SFF-8643 adapter cable. The cable is purchased separately.
4 x SATA 6Gb/s ports***
* Specifications vary by CPU types.
** MCIO connector shares bandwidth with M.2_2 slot. When the MCIO connector is operating, the M.2_2 slot will be disabled.
*** U.2 shares bandwidth with SATA ports; Enable U.2 in the BIOS menu to support an NVMe storage device, and SATA ports will be disabled.
Ethernet 1 x Realtek 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
1 x Realtek 1Gb Ethernet*
ASUS LANGuard
* This dedicated LAN port is for BMC and IPMI connections only; internet access is not supported.
USB Rear USB (Total 7 ports)
5 x USB 10Gbps port(s) (3 x Type-A + 2 x USB Type-C)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A Onboard USB port(s)
1 x USB 2.0 port (1 x Type-A) for BIOS FlashBack
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack detection, Multi-streaming, Front Panel Jack retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** The audio codec will be suspended once an AMD EPYC™ 4005 Series Processor is installed.
Back Panel I/O Ports 3 x USB 10Gbps port(s) (3 x Type-A)
1 x USB 10Gbps port(s) (USB Type-C)
1 x USB 10Gbps port(s) (USB Type-C) supports DisplayPort video output
2 x USB 2.0 port(s) (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI port
1 x Realtek 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet ports
1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
2 x Audio jacks
1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
3 x 4-pin Chassis Fan header(s)
1 x W_PUMP+ header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x U.2 connector
1 x MCIO connector
USB
1 x USB 20Gbps connector (support(s) USB Type-C )
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
1 x USB 2.0 port (1 x Type-A)
Miscellaneous
1 x BIOS FlashBack button
1 x Chassis Intrusion header
1 x COM Port header
1 x Reset button
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x RTC Battery header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Code
- Q-Connector
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- Dual DIMM clips
- ProCool II
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 reliability
- Overcurrent protection
Software Features ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS DriverHub
- ASUS CPU-Z
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
** For detailed information on the supported models and restricted regions for this redemption offer, please refer
to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
BIOS 512 Mb Flash ROM, UEFI AMI BIOS(text-based)
Remote Management Features IT Management software supported
- ASUS Control Center Express(ACCE)
BMC Related
1 x BMC switch
1 x BMC LAN fixed IP switch
1 x Message LED header
1 x microSD card socket
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VPP_I2C header
BMC LED Design
- 1 x BMC LED
- 1 x Message LED
- 1 x Location LED
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x Q-connector
1 x M.2 rubber package(s)
Documentation
1 x ACC Express activation key card
1 x Quick start guide
Operating System Windows 11, Windows 10 64-bit (with AMD Ryzen Desktop Processors)
Form Factor micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
RAID Support AMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
* Specifications vary by CPU types.
Warranty
Warranty Details 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard

ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard is a professional motherboard designed specifically for work with AI, content creation, IT systems, and 24/7 business purposes. The motherboard supports AMD Ryzen 9000, 8000, 7000 series and AMD EPYC 4005 series processors on the AM5 socket and thus ensures top-notch performance for today's tasks. The board features 8+2+1 power phases with a maximum current of 80A per phase, an 8-layer design, ProCool II connectors, Digi+ VRM technology, quality chokes and capacitors for reliable power supply in any load conditions. The board can support DDR5 memory with AMD EXPO up to 8000+ MHz.In terms of storage, there are two PCIe 5.0 x4 M.2 slots, a PCIe 5.0 MCIO, and one U.2 connector for enterprise SSDs, along with NVMe RAID capabilities. The presence of a PCIe 5.0 x16 slot ensures compatibility with the latest graphics and expansion cards.

Among other things, the board boasts reliable connectivity due to its dual Ethernet: one is 10Gb LAN, another one – 2.5Gb LAN; there is an additional 1Gb BMC/IPMI port for remote management. Other connectivity options include a USB 20Gbps Type-C front connector, USB 10Gbps ports, HDMI, and DisplayPort. Remote management of the server type is possible via BMC AST2600 on board and ASUS Control Center Express, which provide in-band and out-of-band management, monitoring, BIOS, and IT asset management.

There is a range of security and management solutions provided, such as USB port control, software blacklist, registry lock, and remote system control. It also provides AI Cache Boost to enhance the local AI and LLM performance and ASUS DriverHub for convenient driver updates. It is created for 24/7 stable performance and tested in a high-temperature and high-humidity environment with support for cooling, fault monitoring, and reliability features.

Buy ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard in Bangladesh

You can buy your desired ASUS Pro WS B850M-ACE SE Ryzen AM5 mATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You can buy online and enjoy free home delivery. You can also visit any of our branches near you.
