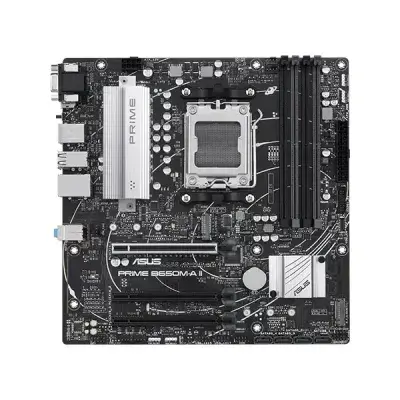

ASUS PRIME B650M-A II-CSM AM5 Micro-ATX Motherboard
ASUS PRIME B650M-A II-CSM AM5 Micro-ATX Motherboard
ASUS PRIME B650M-A II-CSM AM5 Micro-ATX Motherboard

ASUS PRIME B650M-A II-CSM AM5 Micro-ATX Motherboard

Key Features of PRIME B650M-A II-CSM:
AM5 Socket for AMD Ryzen Desktop Processors
Broad Ultrafast Connectivity
ASUS OptiMem II
Comprehensive Cooling with VRM heatsink, PCH heatsink, and Fan Xpert 2+
ASUS Control Center Express (ACCE)
ASUS PRIME B650M-A II-CSM AM5 Micro-ATX Motherboard
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > AM5 Socket for AMD Ryzen Desktop Processors
attr -Key Feature 2 > Broad Ultrafast Connectivity
attr -Key Feature 3 > ASUS OptiMem II
attr -Key Feature 4 > Comprehensive Cooling with VRM heatsink, PCH heatsink, and Fan Xpert 2+
attr -Key Feature 5 > ASUS Control Center Express (ACCE)
Motherboard
Model PRIME B650M-A II-CSM
CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.
Chipset AMD B650 Chipset
Memory 4 x DIMM, Max. 192GB, DDR5 7600+
(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration.
For more information, refer to www.asus.com for the memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics 1 x DisplayPort**
1 x VGA port
1 x HDMI port***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD B650 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Specifications vary by CPU types.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet 1 x Realtek 2.5Gb Ethernet
USB Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS Thermal Solution
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED

Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving

AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner

ASUS CPU-Z
Norton Anti-Virus software (Free Trial version)
WinRAR
UEFI BIOS

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O Shield
1 x Screw Package for M.2 SSD

Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System Windows 11, Windows 10 64-bit
Form Factor mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty 3-Year Replacement Warranty
*(Terms and Conditions Applied)
Description:

ASUS PRIME B650M-A II-CSM AM5 Micro-ATX Motherboard Price in Bangladesh

ASUS PRIME B650M-A II-CSM AM5 Micro-ATX Motherboard

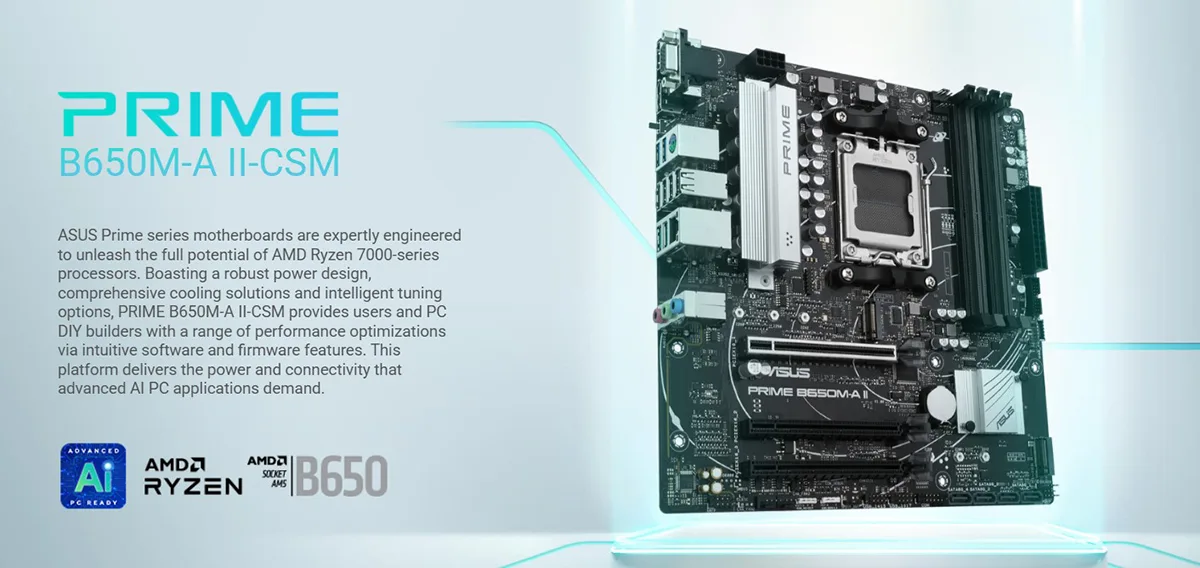

The ASUS PRIME B650M-A II-CSM AM5 Motherboard is made for AMD Ryzen 7000 series CPUs and the AM5 socket, along with DDR5 RAM. The board provides high reliability, fast data transfer, and powerful connectivity. ASUS Prime B650M-A II-CSM supports up to three M.2 slots – one PCIe 5.0 and two PCIe 4.0; there are also four SATA ports. Moreover, it provides 2.5 Gigabit Ethernet with a Realtek chip to ensure a fast connection. As far as visual output is concerned, you can use HDMI, DisplayPort, and VGA outputs for connecting any monitor. There is a set of USB 3.2 Gen 2 ports at the back of the board, while USB 3.2 Gen 1 Type-C at the front side.

ASUS OptiMem II technology is used to achieve maximum stability and performance of the memory. In addition, the board features AMD Precision Boost Overdrive technology that maximizes CPU performance. The cooling aspect is taken care of through VRM and PCH heatsink modules, as well as hybrid fan headers and Fan Xpert 2+, to achieve optimal temperatures when under load. Aura Sync RGB lighting is supported with many headers on the motherboard, allowing you to customize the look of your computer easily.

ASUS Control Center Express (ACCE) assists with the management of systems in an enterprise environment, providing options for remote monitoring, updates, and device management. The CSM program guarantees long-term support and a stable supply. With PCIe slots, BIOS Flashback, and a simple design, the ASUS PRIME B650M-A II-CSM is a worthy option for constructing a modern PC that performs well and is future-proof.

Buy ASUS PRIME B650M-A II-CSM AM5 Micro-ATX Motherboard in Bangladesh

You can buy your desired ASUS PRIME B650M-A II-CSM AM5 Micro-ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
