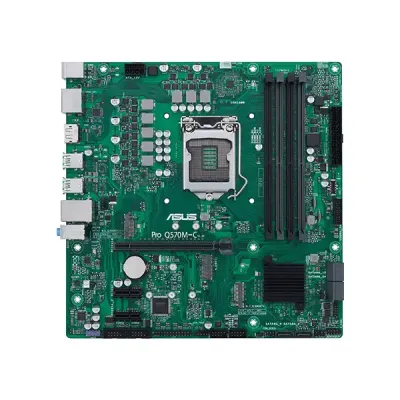

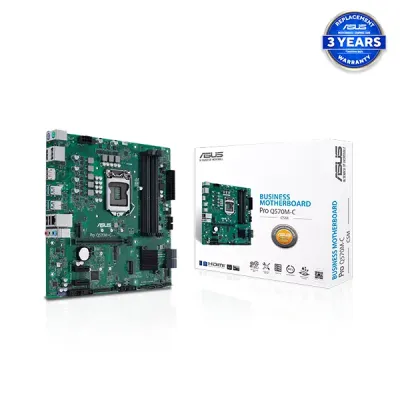

ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard
ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard
ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard

ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard

Key Features of Pro Q570M-C/CSM:
Chipset: Intel Q570 Chipset
Socket: Intel Socket LGA1200
Memory: 4 x DIMM, Max. 128GB, DDR4
Storage: 6 x SATA 6Gb/s ports
Features: Business-Grade Security & Management, High-Speed Connectivity, Enterprise Stability
ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: Intel Q570 Chipset
attr -Key Feature 2 > Socket: Intel Socket LGA1200
attr -Key Feature 3 > Memory: 4 x DIMM, Max. 128GB, DDR4
attr -Key Feature 4 > Storage: 6 x SATA 6Gb/s ports
attr -Key Feature 5 > Features: Business-Grade Security & Management, High-Speed Connectivity, Enterprise Stability
Motherboard
Model Pro Q570M-C/CSM
CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core,
Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel Q570 Chipset
Memory 4 x DIMM, Max. 128GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Optimem

* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively,
others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics * Graphics specifications may vary between CPU types.

** Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.
Please refer to www.intel.com for any updates.

*** Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz,
others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16 mode
- Intel 10th processors support PCIe 3.0 x16 mode

Intel Q570 Chipset
2 x PCIe 3.0 x1 slots
Storage Intel 11th & 10th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Core processors support PCIe 4.0 x4 mode; this slot will be disabled for other CPUs

Intel Q570 Chipset
M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes)*
6 x SATA 6Gb/s ports

* When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed
in both CPU-attached and PCH-attached slots, or 2. Any other 3rd-party SSDs installed in PCH-attached slots.
To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
USB 4 x USB 3.2 Gen 2 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 front panel connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

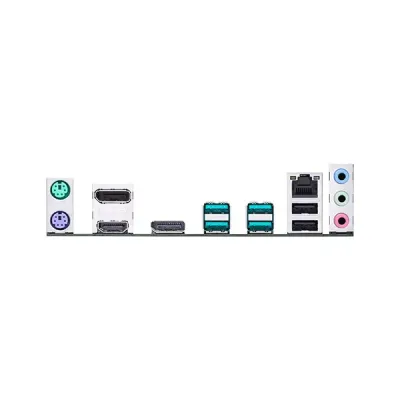

Back Panel I/O Ports 4 x USB 3.2 Gen 2 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMITM
3 x Audio jacks
1 x Intel I219-LM 1Gb Ethernet
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Internal I/O Connectors Fan and cooling-related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1 Front Panel connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME jumper
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 System Panel header
Special Features ASUS EZ DIY
- Box Headers

Bespoke Motherboard Design & Business-Focused Features
- ASUS Self-Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection

TPM 2.0 IC onboard
Software Features ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS 128+64 Mb Flash ROM
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package

Installation Media
1 x Support DVD

Documentation
1 x ACC Express Activation Key Card
1 x User manual
Operating System Windows 10 64-bit
Form Factor Micro-ATX
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard

ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard is designed for business use with 11th Gen Intel Core processor and Intel vPro technology support. It provides more robust security, reliability, and manageability for business IT infrastructure. It is equipped with ASUS-exclusive self-recovering BIOS technology, which automatically recovers BIOS from a proven backup in case of update failure. This board features PCIe 4.0 for rapid data transfer, Intel 1Gb Ethernet, and a front USB 3.2 Gen 1 Type-C header for better connectivity. It features a moisture-resistant coating, anti-sulfur resistors, LAN Guard, ESD Guards, overvoltage protection, and a stainless-steel back I/O for resilience. The onboard SMBUS header offers a spot where a DASH LAN card may be hooked to allow remote IT management, and an event log records system changes for improved troubleshooting.

With ASUS Control Center Express included, IT organizations are able to remotely monitor and manage devices, update and upgrade devices, and automate maintenance and endpoint security management. The Commercial BIOS Kit features customization utilities, including changing the BIOS logo, value editing, and OEM activation key management. The Pro Q570M-C/CSM supports a maximum of 64GB DDR4 memory, includes two M.2 slots (Key M and Key E), six SATA 6Gb/s ports, and other expansion slots like PCIe 4.0/3.0 x16 and PCIe 3.0 x1. It also features HDMI, DisplayPort, USB 3.2 Gen 2, USB 2.0, and COM ports for flexible connectivity.

Compliant with different international environmental and safety certifications, this motherboard is 24/7 reliable consistently. By using the ASUS Corporate Stable Model (CSM) solution, it also offers a 36-month product life cycle and a 6-month end-of-life notice that provides long-term business deployment stability. Fixed-position connectors and box headers simplify assembly and reduce training requirements for IT personnel.

Buy ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard in Bangladesh

You can buy your desired ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
