ASUS Pro H810M-C-CSM Intel LGA1851 mATX Motherboard

ASUS Pro H810M-C-CSM Intel LGA1851 mATX Motherboard

Key Features of Pro H810M-C-CSM:

Chipset: Intel H810 Chipset for Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Memory: 2 x DIMM slots, max. 128GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, PCIe 5.0 slots, DIY Friendly Design

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel H810 Chipset for Core Ultra Processors (Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 2 x DIMM slots, max. 128GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, PCIe 5.0 slots, DIY Friendly Design
Motherboard
Model	Pro H810M-C-CSM
CPU	Supports Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list. Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H810 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x VGA port 1 x DVI-D port 1 x HDMI port Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports up to 3 displays simultaneously.
Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slot Intel H810 Chipset 2 x PCIe 4.0 x1 slots - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Ethernet	1 x Intel 1Gb Ethernet port ASUS LANGuard With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
USB	Rear USB (Total 6 ports) 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

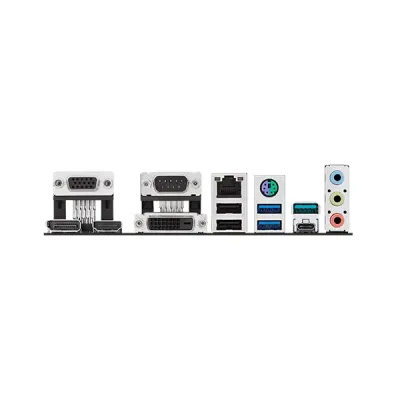

Back Panel I/O Ports	2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x DVI-D port 1 x HDMI port 1 x Intel 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x COM Debug header 1 x LPT header 1 x Mono-Out Audio header (with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Special Features	ASUS Q-Design - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers - Dual DIMM clips - SafeSlot Bespoke Motherboard Design & Business Focused Features - ASUS Self-Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS Kit - Anti-moisture coating - 24/7 reliability - Overcurrent protection Please contact local FAE for Commercial BIOS kit.
Software Features	ASUS Exclusive Software ASUS DriverHub UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Remote Management Features	IT Management software supported - ASUS Control Center Express (ACCE) Ready for ASUS DASH LAN Card 1 x SMBUS header ASUS DASH LAN Card is sold separately.
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package Documentation 1 x ACC Express activation key card 1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor	micro-ATX Form Factor 9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS Pro H810M-C-CSM Intel LGA1851 mATX Motherboard

The ASUS Pro H810M-C-CSM Intel LGA1851 mATX Motherboard is designed for business applications requiring dependability, security, and manageability. It is powered by Intel Core Ultra Processors, Series 2, and the Intel H810 chipset for consistent performance. It features a PCIe 5.0 SafeSlot, two PCIe 4.0 M.2 slots, and DDR5 support for fast data transfer speeds and enhanced memory performance. Connectivity features on the motherboard would include rear USB 10Gbps Type-A and Type-C, two front USB 5Gbps, and four SATA 6Gb/s for a wide array of attachments. ASUS Control Center Express streamlines IT monitoring and management, featuring automated updates and real-time control. The ASUS CSM program helps with stable supply and extended lifecycle for enterprises.

Security features include ASUS Self-Recovering BIOS, which restores the system in case of update failures; and Trusted Platform Module (TPM) support for better data protection. Anti-moisture coating and anti-sulfur resistors protect the motherboard against challenging environments. The motherboard features an onboard event log to record important hardware changes, BIOS updates, and power loss events that may occur, providing quick fault diagnosis. ASUS Commercial BIOS Kit: A package providing tools to customize boot logos, BIOS options, and other settings for business branding and easy maintenance.

Key Features of ASUS Pro H810M-C-CSM Intel LGA1851 mATX Motherboard:

Ready for Advanced AI PCs
Intel LGA 1851 Socket
ASUS CSM Program
ASUS Control Center Express
Enhanced System Security
Consistent and Reliable Performance
Efficient Management and Customization
Better Serviceability
Ultrafast Connectivity
DIY Friendly Design

With DIY-friendly designs like dual DIMM clips and SafeSlot, the Pro H810M-C-CSM is pretty easy to assemble and install components securely. It is designed to be tough, with a stainless steel back I/O and extensive testing for long-term reliability. This motherboard supports advanced connectivity and performance, making it suitable for demanding business applications. It combines security, manageability, and efficient customization, ensuring seamless operation in enterprise environments.
