Asus PRIME H610M-R LGA1700 micro-ATX Motherboard
Asus PRIME H610M-R LGA1700 micro-ATX Motherboard
Asus PRIME H610M-R LGA1700 micro-ATX Motherboard

Asus PRIME H610M-R LGA1700 micro-ATX Motherboard

Key Features of PRIME H610M-R:
Chipset: Intel H610 Chipset for 14th Gen, 13th Gen & 12th Gen
Socket: Intel Socket LGA1700
Storage Supports: 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory: 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800
Features: Aluminum heatsink design, PCIe 4.0, ASUS 5X PROTECTION III
Asus PRIME H610M-R LGA1700 micro-ATX Motherboard
Based on 0 reviews. - Write a review
৳11,450.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: Intel H610 Chipset for 14th Gen, 13th Gen & 12th Gen
attr -Key Feature 2 > Socket: Intel Socket LGA1700
attr -Key Feature 3 > Storage Supports: 1 x M.2 slot and 4 x SATA 6Gb/s ports
attr -Key Feature 4 > Memory: 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800
attr -Key Feature 5 > Features: Aluminum heatsink design, PCIe 4.0, ASUS 5X PROTECTION III
Motherboard
Model PRIME H610M-R
CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports up to Intel 65W CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Refer to www.asus.com for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel H610 Chipset
Memory 2 x DIMM, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)

Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort
1 x VGA port
1 x HDMITM port

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMITM 2.1.
Expansion Slots Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot

- To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
USB Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

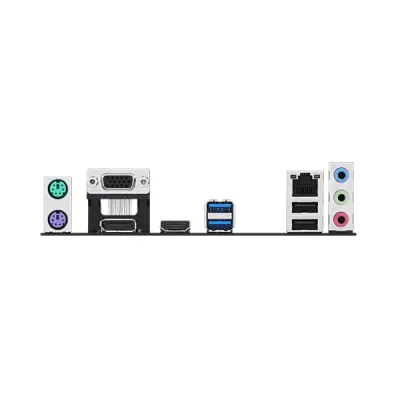

Back Panel I/O Ports 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors Fan and Cooling-related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header

Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector

Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core

ASUS Thermal Solution
- Aluminum heatsink design
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
EPU
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR

Documentation
1 x User guide
Operating System Windows 11 64-bit, Windows 10 64-bit
Form Factor mATX Form Factor
8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

Asus PRIME H610M-R LGA1700 micro-ATX Motherboard Price in Bangladesh

Asus PRIME H610M-R LGA1700 micro-ATX Motherboard

Asus PRIME H610M-R is a micro-ATX board with support for Intel 14th, 13th, and 12th Gen processors that have an LGA 1700 socket. It supports DDR5 memory, PCIe 4.0, and a fast M.2 slot for fast data transfer. It has a Realtek 1Gb Ethernet connector, HDMI, DisplayPort, and VGA outputs to support varied display settings. The motherboard has a PCIe 4.0 x16 slot for graphics and a PCIe 3.0 x1 slot for miscellaneous expansion. It has two DDR5 slots for enhanced memory performance, four SATA 6Gbps ports for storage devices, and a few USB 3.2 Gen 1 and USB 2.0 ports for peripherals. The onboard COM and LPT headers ensure legacy device support.

Cooling is supported by a PCH heatsink and hybrid fan headers to ensure system stability under load. The motherboard further includes an Energy Processing Unit (EPU) to ensure power efficiency and energy efficiency. UEFI BIOS supports a user-friendly interface for fine-tuning the system, and ASUS 5X Protection III safeguards the hardware with voltage regulation and upgraded components. For issue-solving, the Q-LED Core display helps identify problems in indicator lights of DRAM, VGA, and boot devices. The motherboard further supports Armoury Crate software that allows users to manage system settings and updates with a single platform. With its reliable power design, fast connectivity, and all-around expansion abilities, the Asus PRIME H610M-R is a dependable choice for home, office, and entry-level gaming PCs.

Buy Asus PRIME H610M-R LGA1700 micro-ATX Motherboard in Bangladesh

You can buy your desired Asus PRIME H610M-R LGA1700 micro-ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
