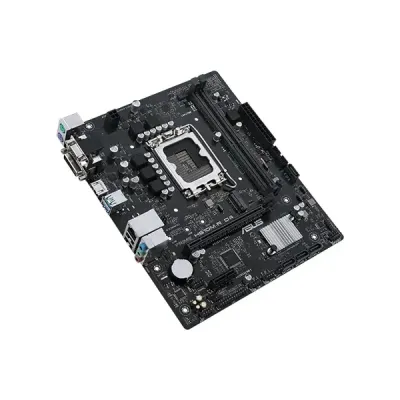

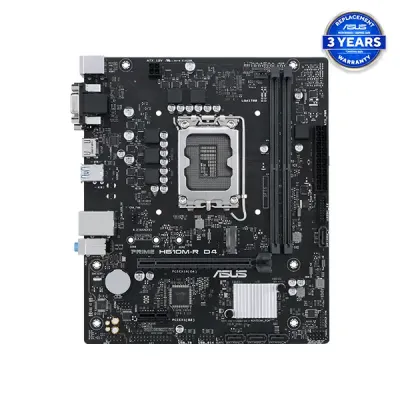

ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard
Key Features of PRIME H610M-R D4:Chipset: Intel H610 Chipset for 14th Gen, 13th Gen & 12th Gen, Pentium Gold and Celeron Processors |
Socket: Intel Socket LGA1700 |
Storage Supports: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
Memory: 2 x DIMM, Max. 64GB, DDR4, 3200/3000/2933/2800/2666/2400/2133 |
Features: PCH Heatsink, PCIe 4.0, ASUS 5X PROTECTION III, DIY Friendly |
Key Features | |
attr - Key Feature 1 > | Chipset: Intel H610 Chipset for 14th Gen, 13th Gen & 12th Gen, Pentium Gold and Celeron Processors |
attr -Key Feature 2 > | Socket: Intel Socket LGA1700 |
attr -Key Feature 3 > | Storage Supports: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
attr -Key Feature 4 > | Memory: 2 x DIMM, Max. 64GB, DDR4, 3200/3000/2933/2800/2666/2400/2133 |
attr -Key Feature 5 > | Features: PCH Heatsink, PCIe 4.0, ASUS 5X PROTECTION III, DIY Friendly |
Motherboard | |
Model | PRIME H610M-R D4 |
CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel H610 Chipset |
Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture |
Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMITM 2.1. |
Expansion Slots | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
Ethernet | 1 x Realtek 1Gb Ethernet |
USB | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |

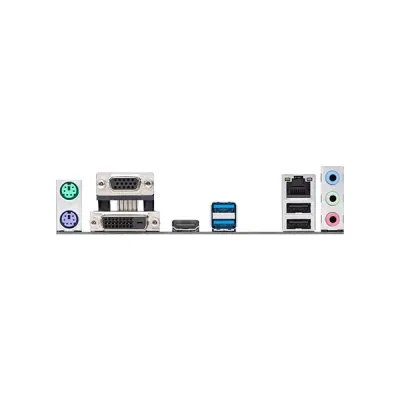

Back Panel I/O Ports | 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design |
Software Features | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |

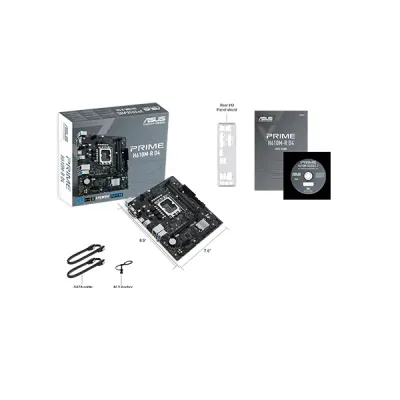

Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 ANCHOR Documentation 1 x User guide |
Operating System | Windows 11 64-bit, Windows 10 64-bit |
Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
Warranty | 3 Years Replacement Warranty *(Terms and Conditions Applied) |
ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard
ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard supports 13th and 12th Gen Intel Core processors. It has support for Intel LGA 1700 socket and compatibility with DDR4 memory up to 64GB. The board offers a single M.2 slot that offers speeds of up to 32Gbps through PCIe 3.0 and four SATA 6Gb/s ports for storage. It comes with a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional expansion.
This motherboard supports Realtek 1Gb Ethernet, HDMI, DVI-D, and D-Sub display ports, making it fit for work and casual game use. It has 2 USB 3.2 Gen 1 ports, 2 USB 2.0 ports, PS/2 mouse and keyboard ports, and three audio jacks at the back panel. Onboard headers are present for COM, LPT, TPM, and extra USB headers to connect more devices. The ASUS PRIME H610M-R D4 also features 5X Protection III that provides power surge protection, over-voltage protection, and a safe slot core for added durability. It also includes a PCH heatsink for even cooling and hybrid fan headers with the capability to auto-adjust based on thermal readings. The Q-LED Core enables users to diagnose hardware issues during startup using easy-to-read LED indicators.
The board has the ASUS UEFI BIOS with EZ and advanced modes of system setup. Armoury Crate software allows management of connected ASUS devices from one place. Audio shielding and isolated audio layers are among the features that help improve the audio quality. This motherboard is Windows 11 ready and gives all-day tasks power-saving features like EPU. With smart design, decent connectivity, and a solid foundation, it offers DIY builders a stable and practical foundation for new PC builds.
Buy ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard in Bangladesh
You can buy your desired ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
What is the ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard price in Bangladesh?
ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard price in Bangladesh is BDT ৳10,700.00 . At Global Brand, we are committed to providing our customers with the best shopping experience. With our affordable prices and top-notch customer service, you can be confident that you're making the right choice. So what are you waiting for? Buy online ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard for you and enjoy a top-class experience. .
Where to buy authentic ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard in Bangladesh?
You can buy 100% authentic ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard from our online shop or in-person at our branch. Shop with confidence and take advantage of free delivery when you buy from our online shop.
By visiting this page you can explore about Features, Specification, Description, Reviews & Latest price of ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard in BDT as well you can buy online PRIME H610M-R D4 with best price. The ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard is available in Bangladesh for the following price: ৳10,700.00 .Take advantage of our free delivery and don't miss out on the opportunity to buy PRIME H610M-R D4 online at the best price in Bangladesh!
