ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard
ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard
ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard

ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard

Key Features of PRIME H610M-F D4 R2.0:
Chipset: Intel Z890 Chipset for Core 14th & 13th Gen Processors
Socket: Intel Socket LGA1700
Memory: 2 x DIMM slots, Max. 64GB, DDR4
Storage: Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
Features: 32Gbps M.2 slot, PCH heatsink, PCIe 4.0, USB 5Gbps Type-A
ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard
Based on 0 reviews. - Write a review
৳10,300.00
Add to Cart
Buy Now
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: Intel Z890 Chipset for Core 14th & 13th Gen Processors
attr -Key Feature 2 > Socket: Intel Socket LGA1700
attr -Key Feature 3 > Memory: 2 x DIMM slots, Max. 64GB, DDR4
attr -Key Feature 4 > Storage: Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
attr -Key Feature 5 > Features: 32Gbps M.2 slot, PCH heatsink, PCIe 4.0, USB 5Gbps Type-A
Motherboard
Model PRIME H610M-F D4 R2.0
CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
Supports up to Intel 65W CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel H610 Chipset
Memory 2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics 1 x HDMI port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
2 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
USB Rear USB (Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

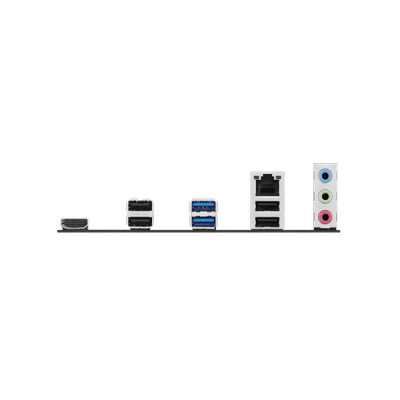

Back Panel I/O Ports 2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO)
1 x Speaker header
1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
- EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x M.2 anchor
Documentation
1 x Quick start guide
Operating System Windows 11 , Windows 10 64-bit
Form Factor micro-ATX Form Factor
8.9 inch x 7.4 inch (22.6 cm x 18.8 cm )
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard

ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard is designed to support 14th, 13th, and 12th Gen Intel processors with reliable performance and essential features for daily computing and light gaming. Featuring the Intel H610 chipset, this micro-ATX motherboard includes a PCIe 4.0 slot, DDR4 memory support, and Realtek 1Gb Ethernet, ensuring steady connectivity and speed for your system needs. For fast data transfers, the 32Gbps M.2 slot enables quicker boot-ups and fast app loads, while USB 5Gbps Type-A ports offer convenient connectivity for multiple peripherals. 5X Protection III safeguards the motherboard with multiple hardware protections, providing lasting reliability.

The ASUS PRIME H610M-F D4 R2.0 features a PCH heatsink to keep the system cool, ensuring steady thermal performance during extended use. The board’s design also focuses on delivering quality audio, combining onboard features for rich, clear sound quality. With support for modern components and a design focused on efficient performance, the ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard is an ideal choice for reliable computing. Backed by a 3-year replacement warranty (terms apply), it’s ready to meet the needs of PC builders looking for dependable performance in a compact form factor.

Buy ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard in Bangladesh

You can buy your desired ASUS PRIME H610M-F D4 R2.0 Intel LGA1700 Micro-ATX Motherboard at Global Brand PLC. We are the authorized distributor of ASUS in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
