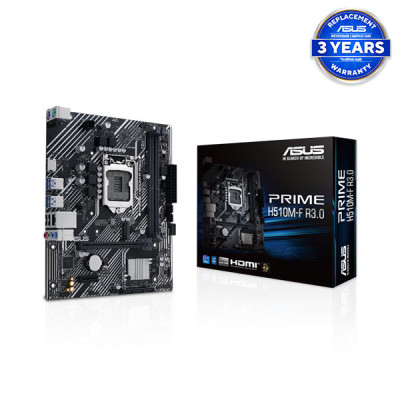

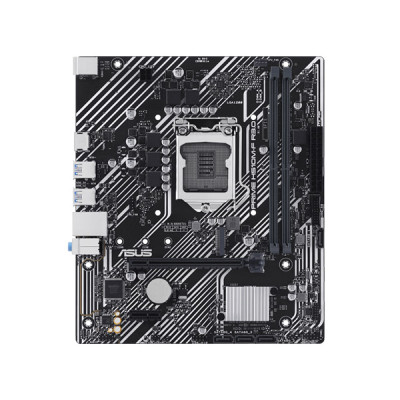

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

Key Features of PRIME H510M-F R3.0:

Chipset: Intel H470 Chipset for 11th Gen Processors
Socket: Intel Socket LGA1200
Memory: 2 x DIMM slots, Max. 64GB, DDR4
Storage: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
PCIe 4.0, 32Gbps M.2 slot, Comprehensive cooling, 5X Protection III

৳0.00

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel H470 Chipset for 11th Gen Processors
attr -Key Feature 2 >	Socket: Intel Socket LGA1200
attr -Key Feature 3 >	Memory: 2 x DIMM slots, Max. 64GB, DDR4
attr -Key Feature 4 >	Storage: Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	PCIe 4.0, 32Gbps M.2 slot, Comprehensive cooling, 5X Protection III
Motherboard
Model	PRIME H510M-F R3.0
CPU	Intel Socket LGA1200 for 11th Gen Intel® Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H470 Chipset
Memory	2 x DIMM slots, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics	1 x HDMI port** * Graphics specifications may vary between CPU types. ** Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Expansion Slots	Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot
Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Ethernet	1 x Realtek 1Gb Ethernet
USB	Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

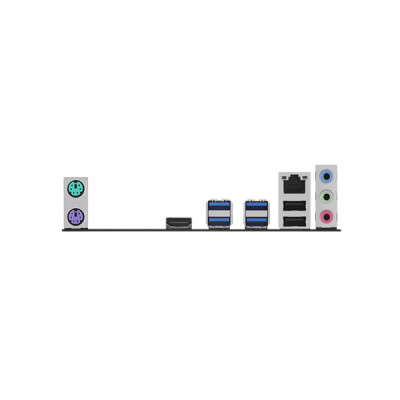

Back Panel I/O Ports	4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
Internal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Software Features	ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM - EZ update ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Anchor Documentation 1 x Quick start guide
Operating System	Windows 10 64-bit
Form Factor	mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard is engineered to unlock the potential of 11th and 10th-generation Intel processors. Designed for daily users and DIY builders, this motherboard offers a range of performance tuning options through intuitive software and firmware features. ASUS PRIME H510M-F R3.0 provides comprehensive controls that allow you to tweak every aspect of your system, ensuring it matches your work style and boosts productivity. The motherboard includes ASUS Intelligent Control, which simplifies complex tuning and dynamically optimizes essential aspects of your system. Whether you're new to PC building or an experienced enthusiast, the motherboard offers options that cater to all levels.

The PRIME H510 series is built to handle the additional cores and increased bandwidth of 11th-generation Intel Core processors. It features hybrid fan headers that help keep your system cool and stable during intense workloads. The UEFI BIOS allows you to map the temperature of the CPU and motherboard, ensuring optimal cooling. The M.2 slot supports data transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling faster boot-up and app load times. Additionally, the onboard features are designed to deliver enhanced audio quality, making your computing experience even better. ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard is the perfect foundation for a reliable and efficient system, ready to handle your daily tasks with stable power and flexible transfer options. This motherboard comes with a 3 Years Replacement Warranty *(Terms and Conditions Applied).
