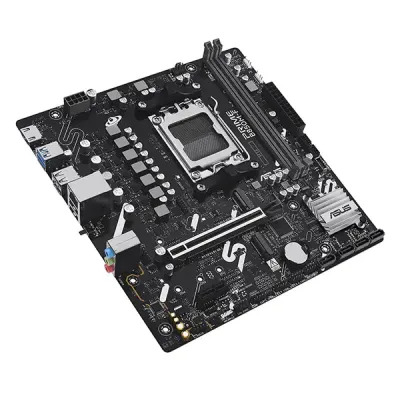

ASUS PRIME B850M-F-CSM AMD AM5 mATX Motherboard

ASUS PRIME B850M-F-CSM AMD AM5 mATX Motherboard

Key Features of PRIME B850M-F-CSM:

Chipset: AMD B850 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
Socket: AMD Socket AM5
Memory: 2 x DIMM slots, max. 128GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: ASUS Fan Xpert 2+, Armoury Crate, DIY friendly, Pre-Mounted I/O Shield, ASUS 5X PROTECTION III

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: AMD B850 Chipset for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
attr -Key Feature 2 >	Socket: AMD Socket AM5
attr -Key Feature 3 >	Memory: 2 x DIMM slots, max. 128GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: ASUS Fan Xpert 2+, Armoury Crate, DIY friendly, Pre-Mounted I/O Shield, ASUS 5X PROTECTION III
Motherboard
Model	PRIME B850M-F
CPU	AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors* Supports up to AMD 120W CPU * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B850 Chipset
Memory	2 x DIMM slots, max. 128GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen 9000 Series Processors, 8400+MT/s(OC) with Ryzen 8000 Series Processors, 8000+MT/s(OC) with Ryzen 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual-channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x HDMI port** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD B850 Chipset 4 x SATA 6Gb/s ports * Specifications vary by CPU types.
Ethernet	1 x Realtek 1Gb Ethernet ASUS LANGuard
USB	Rear USB (Total 6 ports) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Addressable RGB Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS DriverHub ASUS CPU-Z TurboV Core Adobe Creative Cloud (Free Trial)** Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey * For more software features, please visit the ASUS support site or refer to www.asus.com/support for additional information. ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O shield 1 x M.2 anchor package Documentation 1 x Quick start guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor 8.9 inch x 8.75 inch (22.6 cm x 22.2 cm)
RAID Support	AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types.
Dimension	Product (mm) LWH: 226mm222mm36.5mm Color Box (mm) LWH: 260mm270mm51.5mm
Weight	Motherboard only: 0.53kg Full package: 0.917kg
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS PRIME B850M-F-CSM AMD AM5 mATX Motherboard

The ASUS PRIME B850M-F-CSM AMD AM5 mATX Motherboard is based on the AMD B850 chipset, supporting AMD Ryzen 7000, 8000, and 9000 processors, and is ideal for gaming or multimedia builds. It provides a balance of performance and value compared to X870-based platforms. Boasting two DDR5 dual-channel slots with speeds of up to 8400 MHz (OC), this board enables high-performance memory, with a maximum of 8200 MHz on Ryzen 9000 CPUs and 8000 MHz on Ryzen 7000 series CPUs.

It's fitted with one PCI-Express 5.0 x16 slot for next-gen graphics cards, one PCIe 5.0 x4 M.2 slot for high-speed storage, and another PCIe 4.0 x4 M.2 slot. Four SATA 6Gbps ports are available to add flexibility to your storage needs. Thanks to PCIe 5.0 support, enjoy faster load times and smoother gameplay, and handle creative projects more efficiently. With the option to install fast PCIe 5.0 SSDs, heavy files and apps open in a snap, which is great for editing, rendering, or heavy gaming.

Designed for marathon gaming sessions, this motherboard pairs well with the high-frequency power of Ryzen processors to deliver smooth gameplay, low latency, and strong multitasking. Further, it provides 7.1-channel surround audio for clear sound, adding to the experience whether one is gaming, watching movies, or creating content. Realtek 1 GbE LAN makes for stable wired networking while playing online or streaming. The ASUS PRIME B850M-F-CSM is a great choice if you want to build up a modern PC with fast memory, support for PCIe 5.0, strong CPU compatibility, and features for everyday work or gaming. It should be a good choice for users seeking next-generation performance but at a more affordable price without giving up key features.
