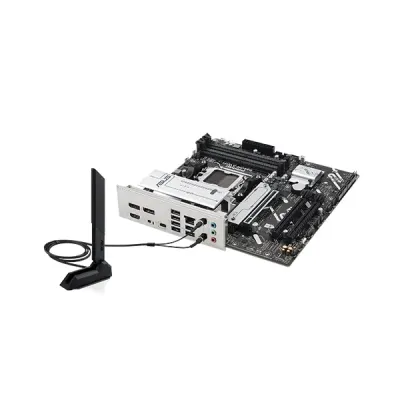

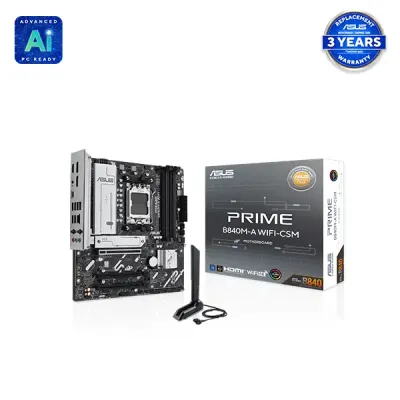

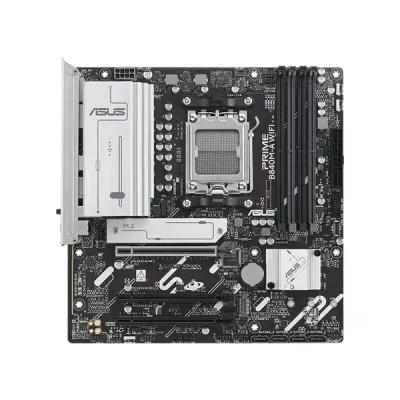

ASUS Prime B840M-A WIFI-CSM AMD Ryzen AM5 Micro-ATX Motherboard

ASUS Prime B840M-A WIFI-CSM AMD Ryzen AM5 Micro-ATX Motherboard

Key Features of Prime B840M-A WIFI-CSM:

Chipset: AMD B840 Chipset
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 192GB, DDR5
Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, PCIe 4.0 slots, EZ PC DIY, WiFi 6E, Pre-mounted I/O shield

Based on 0 reviews. - Write a review

৳0.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: AMD B840 Chipset
attr -Key Feature 2 >	Socket: AMD Socket AM5
attr -Key Feature 3 >	Memory: 4 x DIMM slots, max. 192GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, PCIe 4.0 slots, EZ PC DIY, WiFi 6E, Pre-mounted I/O shield
Motherboard
Model	PRIME B840M-A WIFI-CSM
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B840 Chipset
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 7600+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	2 x DisplayPort 1 x HDMI port* * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots	AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B840 Chipset 2 x PCIe 3.0 x16 slots (support x1 mode) * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)* AMD B840 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 7 ports) 2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

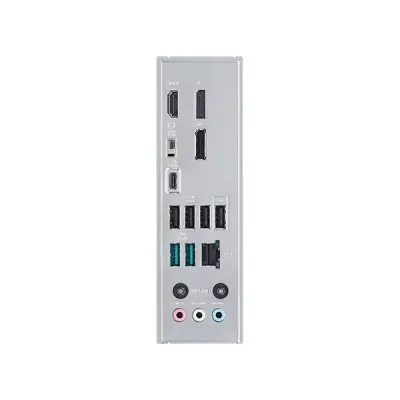

Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A) 1 x USB 5Gbps port (1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Remote Management Features	IT Management software supported - ASUS Control Center Express (ACCE)
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 2 x Screw packages for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide
Operating System	Windows 11, Windows 10 64-bit
Form Factor	micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty	3 Years Replacement Warranty *(Terms and Conditions Applied)

Description:

ASUS Prime B840M-A WIFI-CSM AMD Ryzen AM5 Micro-ATX Motherboard

ASUS Prime B840M-A WIFI-CSM AMD Ryzen AM5 Micro-ATX Motherboard is built with support for AMD Ryzen 9000, 8000, and 7000 series processors, promising reliable performance for gaming, content creation, and AI applications. It has an 8+2+1 phase digital power design, hence assurance of stable power delivery, and DDR5 memory support, leveraging the ASUS Enhanced Memory Profile for the best speeds and AMD EXPO. The motherboard features three M.2 slots, with two supporting PCIe 4.0 at speeds of up to 64 Gbps for faster boot and loading, and USB 5Gbps and 10Gbps Type-C for faster data transfers. Integrated WiFi 6E and Realtek 2.5Gb Ethernet ensure fast and stable networking even in high-density environments.

The ASUS Prime B840M-A WIFI-CSM is designed with longevity in mind under the Corporate Stable Model (CSM) program and supports up to 36-month product lifecycle support. ASUS Control Center Express Software streamlines IT management and offers features like endpoint monitoring, automatic updates, and secured configuration management. Cooling is optimized via a VRM heatsink, M.2 thermal pad, and multiple hybrid fan headers. Advanced fan control is also supported with ASUS Fan Xpert 2+ software and an extremely quiet mode.

UEFI BIOS, Armoury Crate software, and Aura Sync RGB lighting control make customization easy. Addressable Gen 2 RGB headers feature personalized lighting effects, while EZ PC DIY features such as a pre-mounted I/O shield, SafeSlot Core+, and BIOS FlashBack make building and upgrading systems easier. The ASUS PRIME B840M-A WIFI-CSM is the best choice for rock-solid, high-performance PCs, featuring comprehensive and user-friendly tools for DIY builders and pros, alongside unwavering support for the latest technologies.

Buy ASUS Prime B840M-A WIFI-CSM AMD Ryzen AM5 Micro-ATX Motherboard in Bangladesh

You can buy your desired ASUS Prime B840M-A WIFI-CSM AMD Ryzen AM5 Micro-ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
