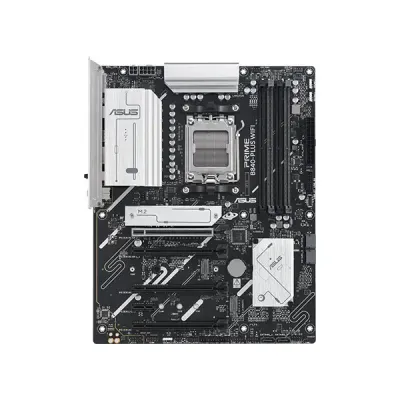

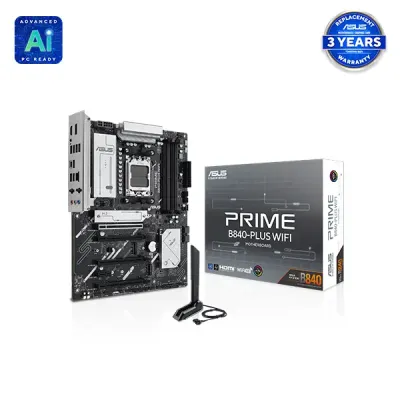

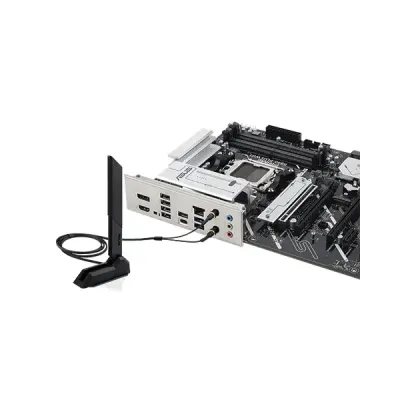

ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard
ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard
ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard
ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard

ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard

Key Features of PRIME B840-PLUS WIFI:
Chipset: AMD B840 Chipset
Socket: AMD Socket AM5
Memory: 4 x DIMM slots, max. 192GB, DDR5
Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, PCIe 4.0 s​​​​lots, WiFi 6E, EZ PC DIY, Aura Sync
ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard
Based on 0 reviews. - Write a review
৳0.00
Add to Cart
Specification Description Reviews
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD B840 Chipset
attr -Key Feature 2 > Socket: AMD Socket AM5
attr -Key Feature 3 > Memory: 4 x DIMM slots, max. 192GB, DDR5
attr -Key Feature 4 > Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 > Features: Advanced AI PC-ready, PCIe 4.0 s​​​​lots, WiFi 6E, EZ PC DIY, Aura Sync
Motherboard
Model PRIME B840-PLUS WIFI
CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset AMD B840 Chipset
Memory 4 x DIMM slots, max. 192GB, DDR5
Supports up to 7600+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Non-ECC, un-buffered DDR5 memory supports the On-Die ECC function.
Graphics 1 x DisplayPort
1 x HDMI port
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports max. 8K@30Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B840 Chipset
1 x PCIe 3.0 x16 slot (support x4 mode)
2 x PCIe 3.0 x16 slots (support x1 mode)
1 x PCIe 3.0 x1 slot
Please check the PCIe bifurcation table on the support site
(https://www.asus.com/support/FAQ/1037507/).
Specifications vary by CPU types.
The PCIEX16(G3)_1/3 and PCIEX1(G3) share bandwidth with PCIEX16(G3)_2. The PCIEX16(G3)_2 will run x1 mode when any of the PCIEX16(G3)_1/3 and PCIEX1(G3) slots is occupied.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)

AMD B840 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode 4 x SATA 6Gb/s ports
Specifications vary by CPU types.

AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Ethernet 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 8 ports)
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

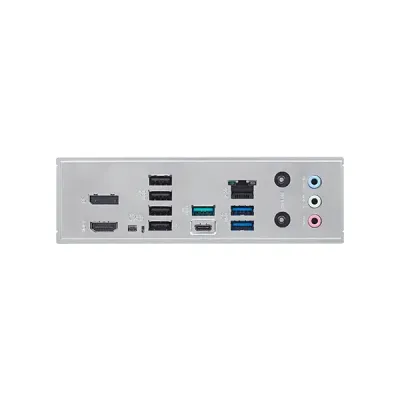

Back Panel I/O Ports 1 x USB 10Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan header

Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connectors
1 x 4-pin +12V CPU Power connectors

Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
1 x Thunderbolt (USB4) header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot core+
- Stainless-steel back I/O

ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Pre-mounted I/O shield
- SafeSlot core+

Aura Sync
- Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS Driver Hub
ASUS GlideX
TurboV Core
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables

Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD

Documentation
1 x Quick start guide
Operating System Windows 11, Windows 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty 3 Years Replacement Warranty *(Terms and Conditions Applied)
Description:

ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard Price in Bangladesh

ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard

The ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard is designed for AMD Ryzen 9000, 8000, and 7000 series processors, promising powerful performance, advanced connectivity, and reliable cooling for gaming, creating, and everyday use. Equipped with DDR5 memory, AEMP from ASUS, and AMD EXPO for the most demanding requirements with increased speeds for stable performance. It includes three M.2 including two PCIe 4.0 and one PCIe 3.0-to ensure the fastest possible boot times and data transfers along with an 8+2+1 phase digital power design to guarantee continuous, stable power delivery for resource-intensive workloads.

Built-in WiFi 6E: Lightning-fast Wireless Networking with Low Latency, while Integrated Realtek 2.5Gb Ethernet reduces network congestion. USB 10Gbps Type-C for Faster Data Transfer. PCIe 4.0 x16 SafeSlot Core+: For Safe Graphics Card Installation. Cooling features include VRM heatsinks, an M.2 heatsink, hybrid fan headers, and ASUS Fan Xpert 2+ software for precise fan control. Smart Cooling modes, like Extreme Quiet, reduce noise during light workloads.

The motherboard itself is friendly, coming with an I/O shield pre-mounted, BIOS FlashBack, Q-LED Core, and SafeSlot Core+, to ease the building and maintenance of PCs. ASUS GlideX enables users to share the screen across devices, and the Armoury Crate app gives the user control over the system settings and Aura Sync RGB lighting. For a six-layer PCB design, PRIME B840-PLUS WIFI provides enhanced stability and better overclocking performance. Moreover, PRIME B840-PLUS WIFI will support a variety of ASUS AIO coolers for more personalized modification and enhancement in performance. It is a fine model to create a reliable system boasting strong performance and efficient cooling along with versatile connectivity options.

Buy ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard in Bangladesh

You can buy your desired ASUS PRIME B840-PLUS WIFI AMD Ryzen AM5 ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
