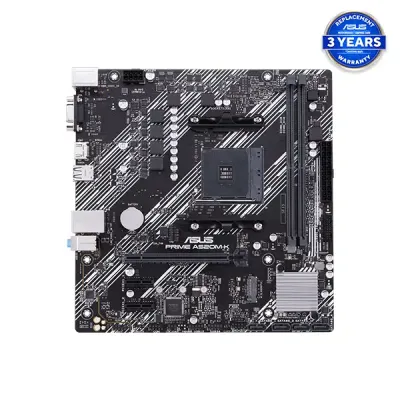

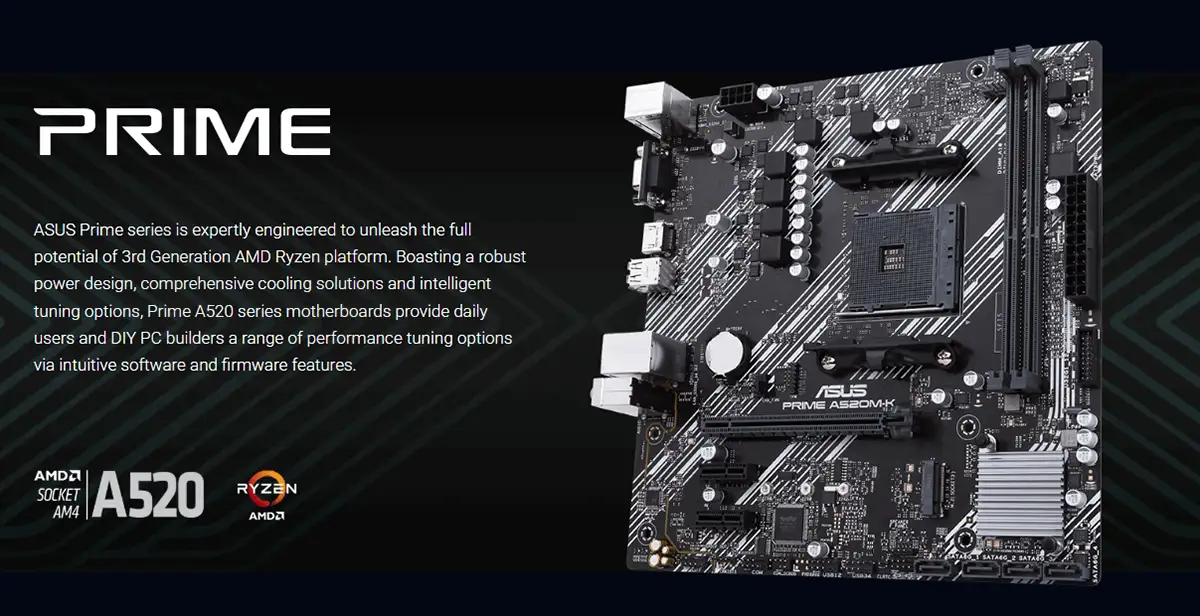

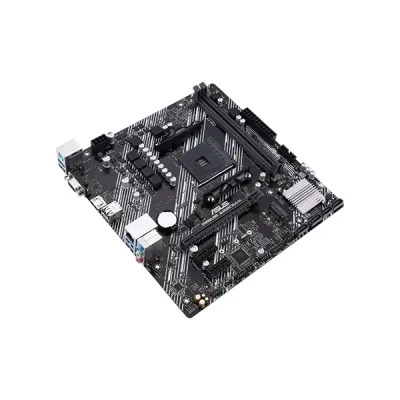

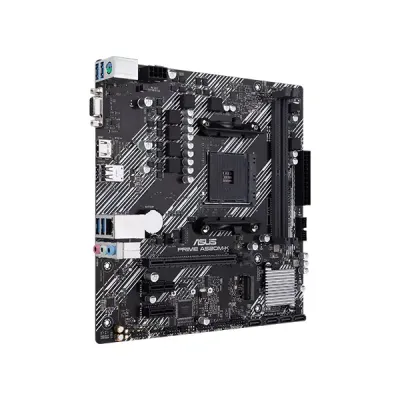

ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard
ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard
ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard
ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard

ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard

Key Features of PRIME A520M-K/CSM:
Chipset: AMD A520 Chipset for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Socket: AMD Socket AM4
Memory: Supports up to 2 x DIMM, Max. 64GB, DDR4
Storage: Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
Features: DIY Friendly, Armoury Crate, Audio Shielding, 5X Protection III, PCH heatsink, and Fan Xpert
ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard
৳0.00
Specification:
Key Features
attr - Key Feature 1 > Chipset: AMD A520 Chipset for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
attr -Key Feature 2 > Socket: AMD Socket AM4
attr -Key Feature 3 > Memory: Supports up to 2 x DIMM, Max. 64GB, DDR4
attr -Key Feature 4 > Storage: Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
attr -Key Feature 5 > Features: DIY Friendly, Armoury Crate, Audio Shielding, 5X Protection III, PCH heatsink, and Fan Xpert
Motherboard
Model PRIME A520M-K/CSM
CPU * Refer to www.asus.com for CPU support list.
AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
Chipset AMD A520
Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types

2 x DIMM, Max. 64GB, DDR4

4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.
/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture, ECC Memory (ECC mode) support varies by CPU.
Graphics 1 x HDMI 2.1(4K@60HZ)
Expansion Slots AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
AMD A520 Chipset,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode)
LAN Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard
Storage AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series
Desktop Processors: Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD A520 Chipset: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support,4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
Internal I/O Ports 1 x COM port header
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header,4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector
USB Front USB Port: 4 x USB 2.0 port(s)(4 x Type-A) ( Total 6 )
Rear USB Port ( Total 6 ): 4 x USB 3.2 Gen 1 port(s)(4 x Type-A),2 x USB 3.2
Gen 1 port(s)(2 x Type-A),2 x USB 2.0 port(s)(2 x Type-A)
Audio Realtek ALC887/8977.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Shielding- Dedicated audio PCB layers
Audio Feature:* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

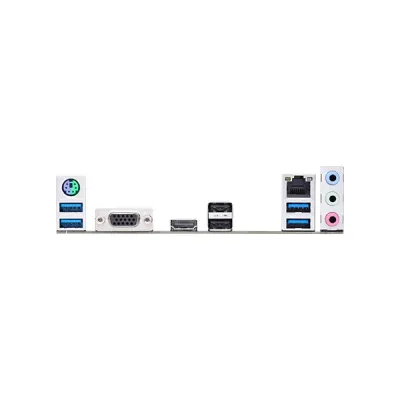

Back Panel I/O Ports 4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s)
Special Features ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-Virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE, WOL by PME, PXE
Accessories 1 x ACC Express Activation Key Card
1 x M.2 SSD screw package(s)
2 x SATA 6Gb/s cable(s)
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
Operating System Windows 10 64-bit
Form Factor mATX Form Factor
8.9 inch x 8.7 inch
( 22.6 cm x 22.1 cm )
Warranty 3-Year Brand Warranty (Condition applied)
Description:

ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard Price in Bangladesh

ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard

ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard is designed to deliver consistent performance, enduring power, and efficient cooling for daily use, gaming, and professional workloads. Designed for AMD Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors, it is a good foundation to build a high-performance PC with easy tuning and durable protection. This Motherboard supports PCIe 3.0 M.2 storage with up to 32 Gbps speeds, which makes it an excellent choice for boot drives and loading data in an instant. It comes with USB 3.2 Gen 1 Type-A, SATA 6 Gbps, HDMI, and D-Sub connectivity for compatibility with newer devices and monitors. You also have 1 GB Ethernet for network performance that is lag-free and stable.

Cooling is handled by a PCH heatsink, multiple fan headers, and Fan Xpert software, giving you complete control over cooling. Each of the fan headers can accept input from multiple thermal sensors, including those on ASUS graphics cards, for focused cooling during intense loads. The ASUS PRIME A520M-K/CSM also features 5X Protection III with overvoltage protection, stable power delivery, and high-quality components to safeguard your system and make it long-lasting. Its audio design has shielding and isolated PCB layers for left and right channels to reduce interference and provide clear sound quality.

As a part of the ASUS Corporate Stable Model (CSM) program, this Motherboard provides up to 36 months of lifecycle support and ASUS Control Center Express, an IT management software for monitoring, updating, and secure endpoint control, ideal for business and enterprise environments.

Buy ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard in Bangladesh

You can buy your desired ASUS PRIME A520M-K/CSM AMD AM4 micro-ATX Motherboard at Global Brand PLC. We are the authorized distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
