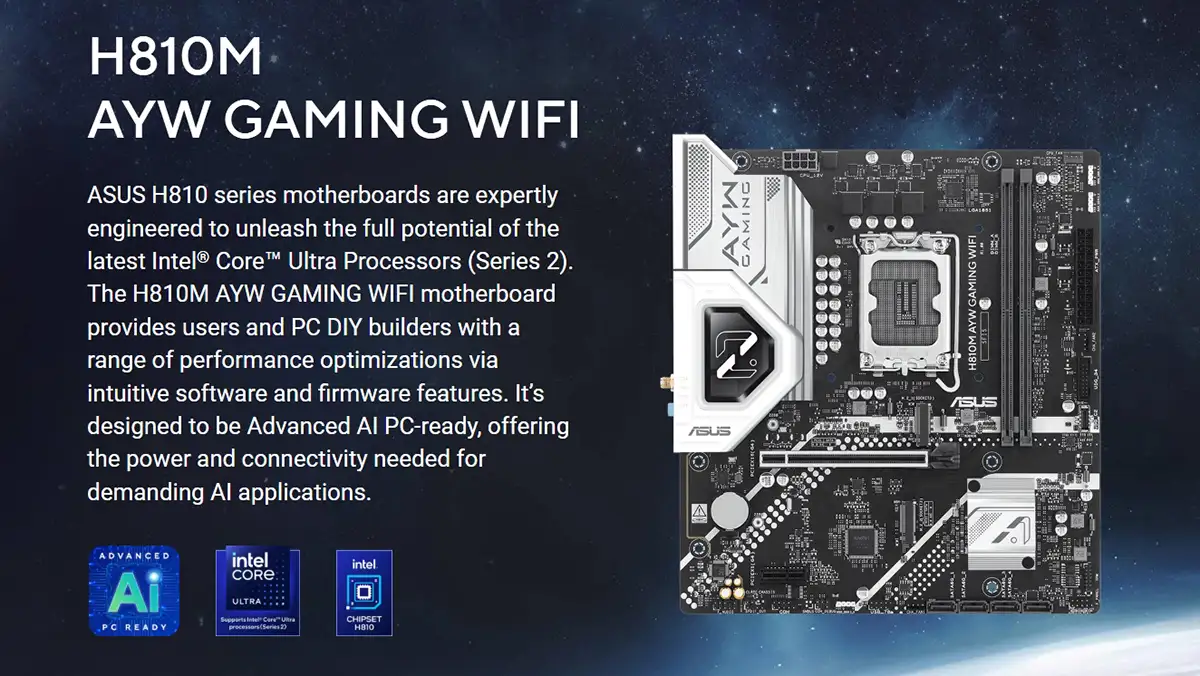

image of ASUS H810M AYW GAMING WIFI Intel LGA1851 mATX Motherboard with Spec and Price in BDT

ASUS H810M AYW GAMING WIFI Intel LGA1851 mATX Motherboard

ASUS H810M AYW GAMING WIFI Intel LGA1851 mATX Motherboard

Key Features of H810M AYW GAMING WIFI:

Chipset: Intel H810 Chipset for Core Ultra Processors (Series 2)
Socket: Intel Socket LGA1851
Memory: 2 x DIMM slots, max. 128GB, DDR5
Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Features: Advanced AI PC-ready, WiFi 6, ASUS Fan Xpert 2+, EZ PC DIY, Aura Sync

৳17,500.00

Add to Cart

Specification Description Reviews

Specification:

Key Features
attr - Key Feature 1 >	Chipset: Intel H810 Chipset for Core Ultra Processors (Series 2)
attr -Key Feature 2 >	Socket: Intel Socket LGA1851
attr -Key Feature 3 >	Memory: 2 x DIMM slots, max. 128GB, DDR5
attr -Key Feature 4 >	Storage: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
attr -Key Feature 5 >	Features: Advanced AI PC-ready, WiFi 6, ASUS Fan Xpert 2+, EZ PC DIY, Aura Sync
Motherboard
HDMI Ports
Model	H810M AYW GAMING WIFI
CPU	Support Intel Core Ultra Processors (Series 2), LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to https://www.asus.com/support/download-center/ for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel H810 Chipset
Memory	2x DIMM slots, max. 128GB, DDR5 Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)* Dual-channel memory architecture DIMM Fit Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile II (AEMP II) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics	1 x DisplayPort 1 x HDMI port* * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 4K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphics cards' resolution.
Expansion Slots	Intel Core Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel H810 Chipset 1 x PCIe 4.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage	Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel H810 Chipset M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports
Ethernet	1 x Intel 1Gb Ethernet port* ASUS LANGuard *With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wireless & Bluetooth	Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.3* * The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 5 ports) 1 x USB 5Gbps connector (supports USB Type-C)* 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports	2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Intel 1Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-Dashboard - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Aura Sync - Addressable Gen 2 headers
Software Features	ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
BIOS	256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O shield 1 x Screw package for M.2 SSD Documentation 1 x Quick start guide
Operating System	Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor	micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
Warranty	3-Year Brand Warranty (Condition applied)

Description:

ASUS H810M AYW GAMING WIFI Intel LGA1851 mATX Motherboard

The ASUS H810M AYW GAMING WIFI Intel LGA1851 mATX Motherboard is designed for users who want fast performance, good connectivity, and smooth control while using the latest Intel Core Ultra Processors (Series 2). It has a 6+1+1+1 phase digital power design with Digi+ VRM for stable power delivery that will help the system run reliably under daily and heavy-loaded tasks. Power-saving settings also help manage the CPU, lighting, and fans to reduce energy use when needed. This motherboard features DDR5 memory with DIMM Fit and DIMM Fit Pro for better memory tuning and stability. The two PCIe 4.0 M.2 slots allow users to attain speeds of up to 64Gbps when it comes to boot and software loading. A PCIe 4.0 x16 SafeSlot Core+ allows robust support for graphics cards, plus an additional PCIe 4.0 x1 slot for expansion.

Cooling is taken care of by the presence of several heatsinks, VRM thermal pads, and hybrid fan headers. The ASUS Fan Xpert 2+ software provides one-click fan auto-tuning, comprehensive temperature control, and a quiet mode for low-noise work. Of course, everything can be adjusted via UEFI BIOS as well. Connectivity options include WiFi 6 for fast wireless networking, Intel 1Gb Ethernet for smooth wired transfer, USB 10Gbps Type-A for high-speed devices, and USB 5Gbps Type-C for front-panel fast data access. These ports easily support gaming gear, storage devices, and daily accessories.

It supports custom settings through UEFI BIOS, Armoury Crate, ASUS DriverHub, and GlideX screen sharing. The Aura Sync and three Gen2 RGB headers help with lighting control for a personalised setup. EZ PC DIY features, Q-LED Core, and SafeSlot Core+ are designed to make the building process simple and safe. The ASUS H810M AYW GAMING WIFI is a great option for gaming and everyday PCs with strong performance options, cooling control, wireless features, and flexible upgrades.

Buy ASUS H810M AYW GAMING WIFI Intel LGA1851 mATX Motherboard in Bangladesh

You can buy your desired ASUS H810M AYW GAMING WIFI Intel LGA1851 mATX Motherboard at Global Brand PLC. We are the authorised distributor of Asus in Bangladesh. You buy online and enjoy free home delivery. You can also visit any of our branches near you.
